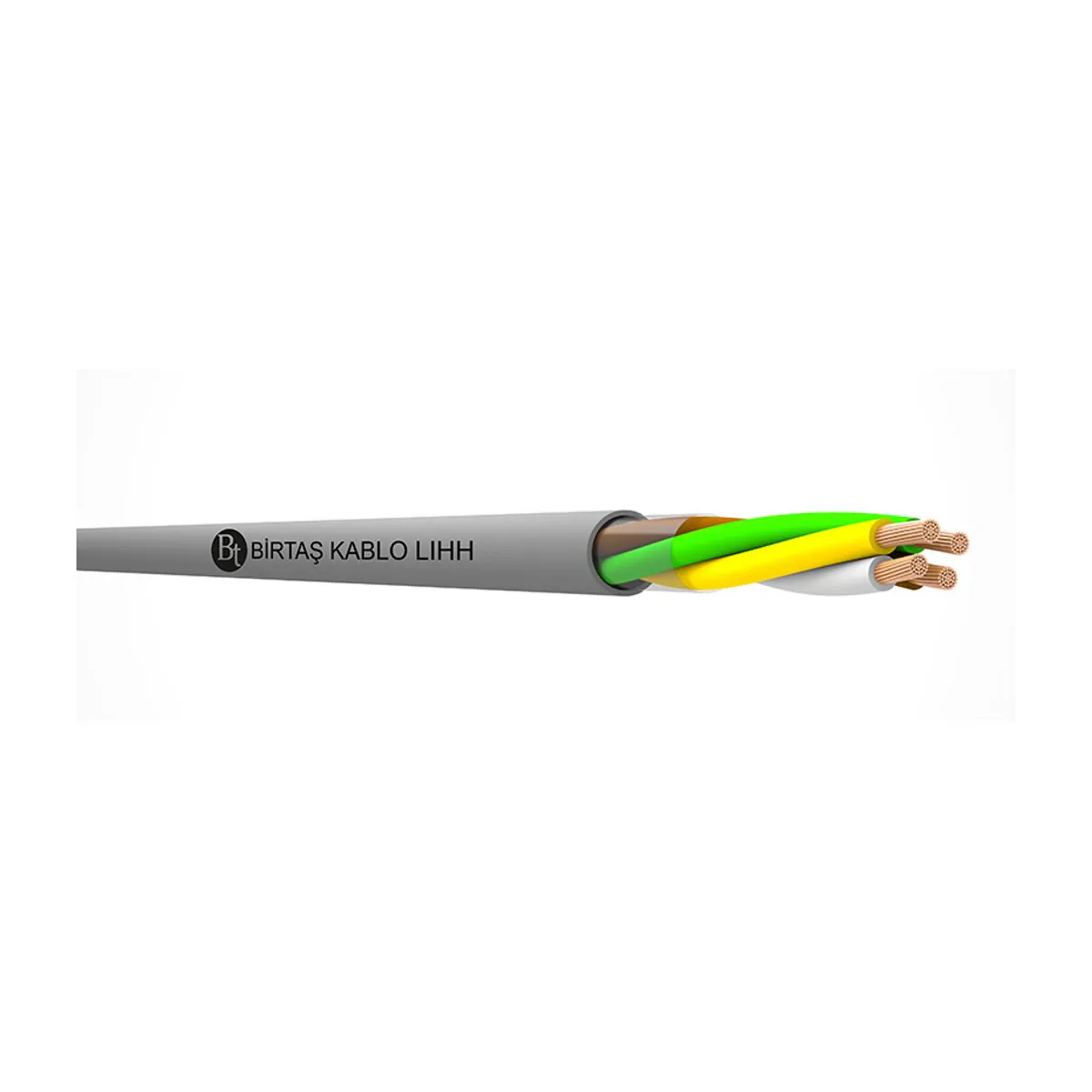

Birtaş LIHH-OZ 8x0.50 mm2
- Brand: Birtaş Kablo
- SKU: 1901 05 008 007
- Price: 15721.50 TRY + VAT · incl. VAT 18865.80 TRY
- Availability: Made to order
- LIHH Signal Cables
- Birtaş Kablo LIHH Signal Cables
- Selection guide: LIHH Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş LIHH-OZ 8x0.50 mm2 is a Birtaş Kablo product in the control and signal cable product family. Key technical features: Cable type: LIHH; Core cross-section: 8x0.50 mm2.
| Core Cross-Section | 8x0,50 mm² |
|---|---|
| Cable Type | LIHH |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | HFFR compound, EN 50290-2-26 |
| Stranding | Cores stranded in layers with suitable lay length |
| Separator Tape | Polyester tape |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Outer Sheath Colour | ~RAL 7001, Grey |
| Standards | VDE 0812 & TS 13755 |
| Capacitance | Max. 120 nF/km |
| Operating Voltage | Uo/U: 300/500 V |
| Test Voltage | 2000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 12 x D |
| Flame Retardance / Fire Performance | Alev geciktirici: EN 60332-1-2 & IEC 60332-1-2; Alev yayılım: EN IEC 60332-3-24 Cat C; Duman yoğunluğu: EN 61034-2 & IEC 61034-2; Halojensizlik: EN 60754-1/-2 & IEC 60754-1/-2 |
| Core Colour Code | OZ: EN 50334acc. to siyah damar üzeri beyaz numaralar |
| Outer Diameter | Yaklaşık 7,20 mm (± %7) |
| Copper Weight | 36 kg/km |
