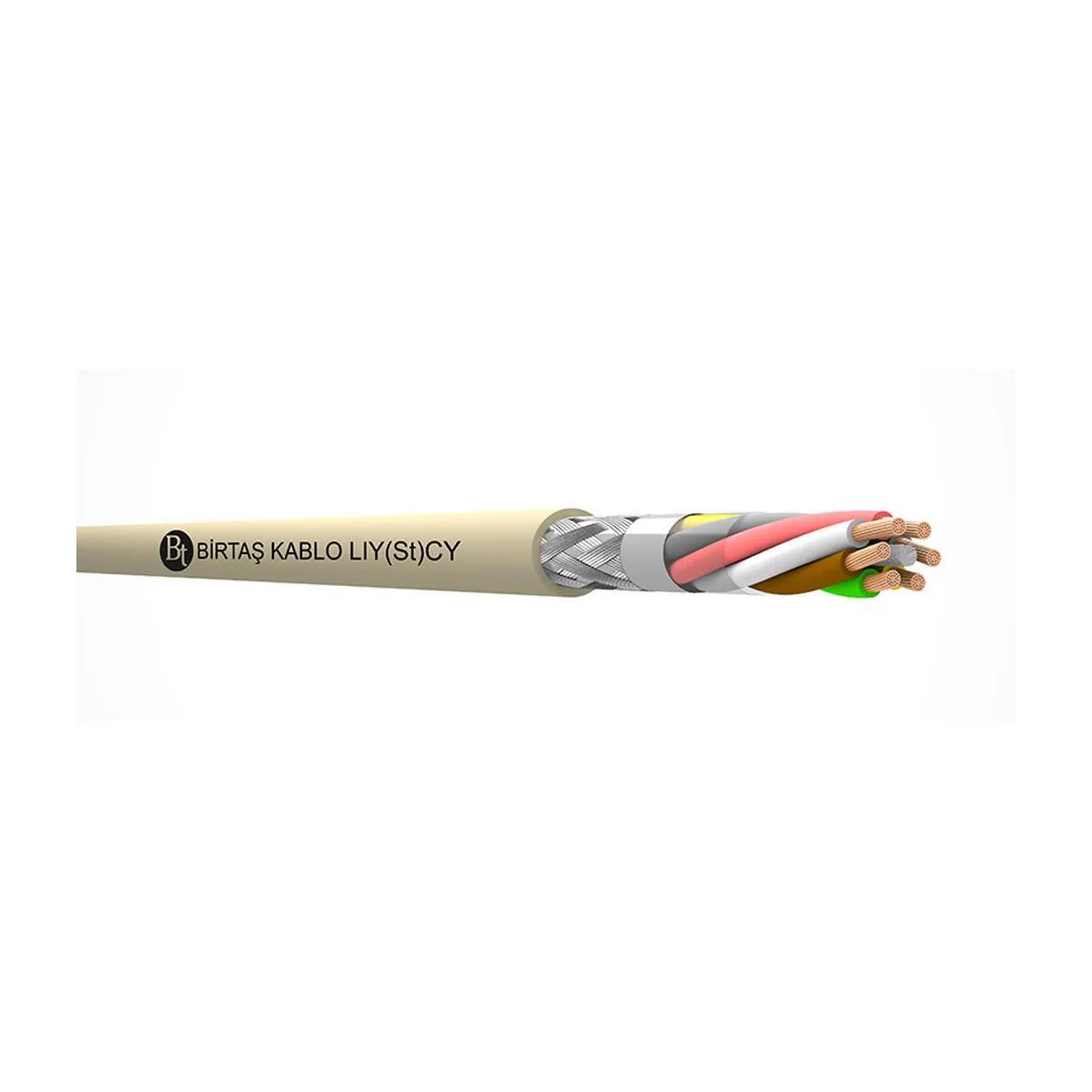

Birtaş LIY(St)CY-OZ 8x2.5 mm2
- Brand: Birtaş Kablo
- SKU: 1107 09 008 111
- Price: 67175.30 TRY + VAT · incl. VAT 80610.36 TRY
- Availability: Made to order
- LIY(St)CY Signal Cables
- Birtaş Kablo LIY(St)CY Signal Cables
- Selection guide: LIY(St)CY Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş LIY(St)CY-OZ 8x2.5 mm2 is a Birtaş Kablo product in the control and signal cable product family. Key technical features: Cable type: LIY; Core cross-section: 8x2.5 mm2.
| Core Cross-Section | 8x2,5 mm² |
|---|---|
| Cable Type | LIY |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | PVC compound, EN 50290-2-21/TI51 |
| Stranding | Cores stranded in layers with suitable lay length |
| Separator Tape | Polyester tape |
| Cable Shield | Aluminyum polyester bant & kalaylı bakır tel örgü (kalaylı bakır toprak teli: opsiyonel) |
| Outer Sheath Material | PVC compound, EN 50290-2-22/TM51 |
| Outer Sheath Colour | ~RAL 7032, Grey |
| Standards | VDE 0812 & TS 13755 |
| Insulation Resistance | Min. 20 MΩ·km |
| Capacitance | Max. 150 nF/km |
| Test Voltage | 2000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Oil Resistance | EN 60811-404 & IEC 60811-404acc. to; EN 50290-2-22/TM54; 4 saat @ 70 °C |
| Core Colour Code | OZ: EN 50334acc. to siyah damar üzeri beyaz numaralar |
