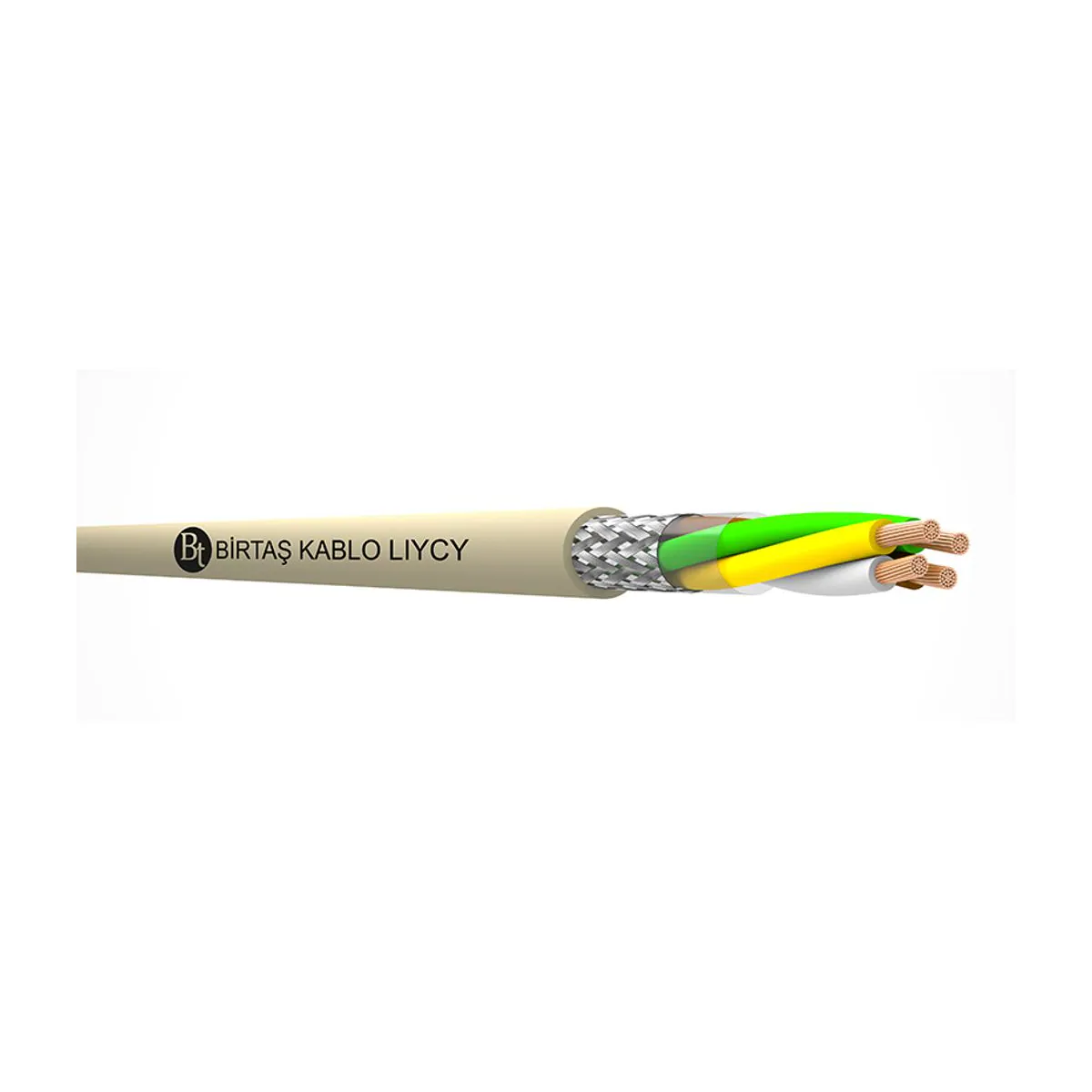

Birtaş LIYCY-OZ 14x0.50 mm2
- Brand: Birtaş Kablo
- SKU: 1103 05 014 001
- Price: 30940.30 TRY + VAT · incl. VAT 37128.36 TRY
- Availability: Made to order
- LIYCY Signal Cables
- Birtaş Kablo LIYCY Signal Cables
- Selection guide: LIYCY Shielded Signal Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş LIYCY-OZ 14x0.50 mm2 is a Birtaş Kablo product in the control and signal cable product family. Key technical features: Cable type: LIYCY; Core cross-section: 14x0.50 mm2.
| Core Cross-Section | 14x0,50 mm² |
|---|---|
| Cable Type | LIYCY |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | PVC compound, EN 50290-2-21/TI51 |
| Core Colour Code | EN 50334acc. to siyah damar üzeri beyaz numaralar |
| Stranding | Cores stranded in layers with suitable lay length |
| Separator Tape | Polyester tape |
| Cable Shield | Tinned copper wire braid |
| Outer Sheath Material | PVC compound, EN 50290-2-22/TM51 |
| Outer Sheath Colour | ~RAL 7032, Grey |
| Operating Voltage | Uo/U: 300/500 V; tepe voltajı: 500 V |
| Test Voltage | 2000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D |
| Insulation Resistance | Min. 20 MΩ·km |
| Standards | VDE 0812 & TS 13755acc. to |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2 |
| Outer Diameter | Yaklaşık 9,60 mm (±%7) |
| Copper Weight | 84 kg/km |
| Capacitance | Max. 150 nF/km (mutual capacitance) |
| Oil Resistance | EN 60811-404 & IEC 60811-404acc. to; EN 50290-2-22/TM54; 4 saat @ 70 °C |
