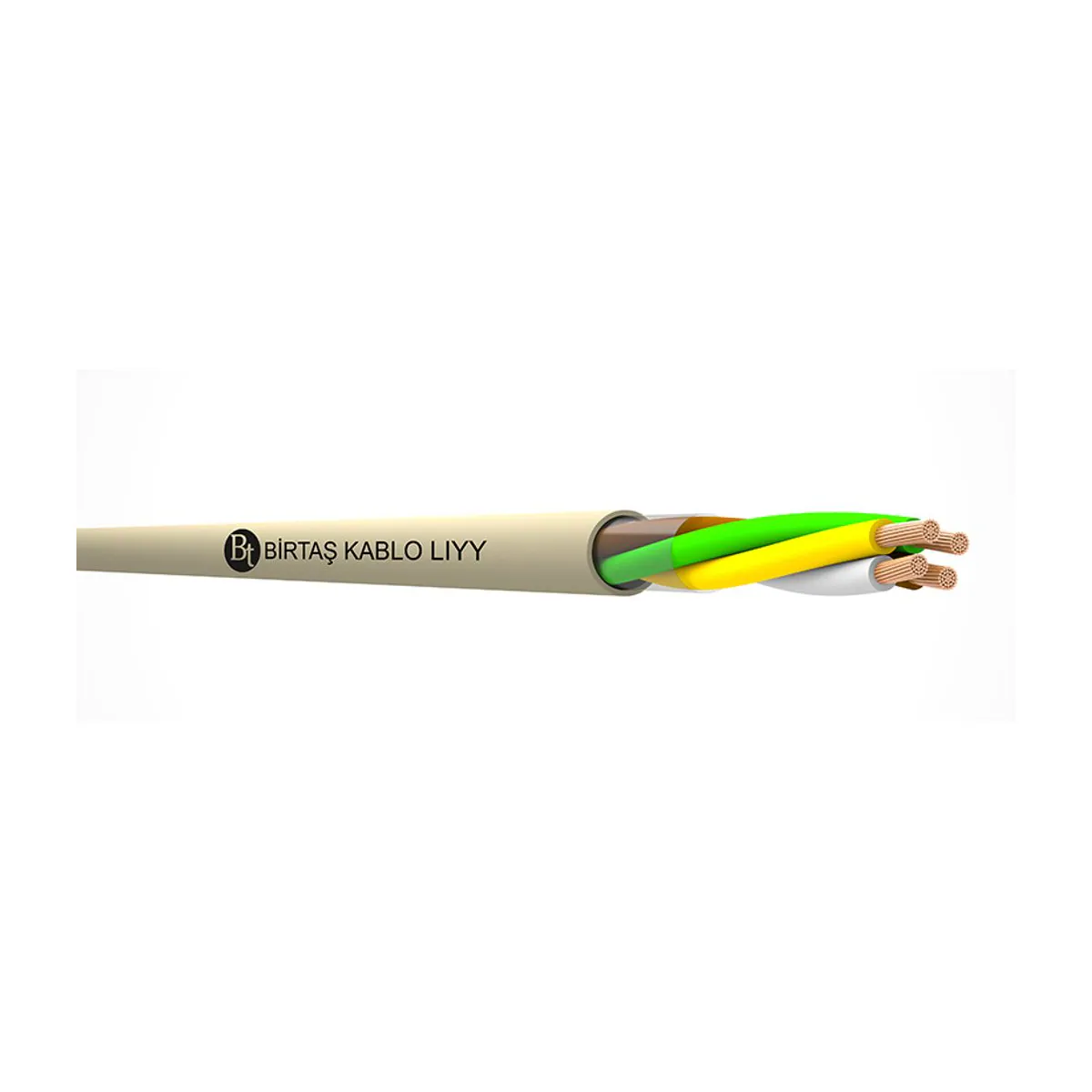

Birtaş LIYY 4x0.22 mm2
- Brand: Birtaş Kablo
- SKU: 1101 02 004 003
- Price: 5650.60 TRY + VAT · incl. VAT 6780.72 TRY
- Availability: Made to order
- LIYY Signal Cables
- Birtaş Kablo LIYY Signal Cables
- Selection guide: LIYY Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş LIYY 4x0.22 mm2 is a Birtaş Kablo product in the control and signal cable product family. Key technical features: Cable type: LIY; Core cross-section: 4x0.22 mm2.
| Core Cross-Section | 4x0,22 mm² |
|---|---|
| Cable Type | LIY |
| Conductor | 0,22 mm²: 7x0,20 mm SnCu (Kalaylı) |
| Insulation Material | PVC compound, EN 50290-2-21/TI51 |
| Stranding | Cores stranded in layers with suitable lay length |
| Separator Tape | Polyester tape |
| Outer Sheath Material | PVC compound, EN 50290-2-22/TM51 |
| Outer Sheath Colour | ~RAL 7032, Grey |
| Standards | VDE 0812 & TS 13755 |
| Capacitance | Max. 120 nF/km |
| Operating Voltage | 250 V |
| Test Voltage | 1200 V (AC 50 Hz) |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 10 x D |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Oil Resistance | EN 60811-404 & IEC 60811-404acc. to; EN 50290-2-22/TM54; 4 saat @ 70 °C |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Outer Diameter | Yaklaşık 4,20 mm (±%7) |
| Copper Weight | 9 kg/km |
