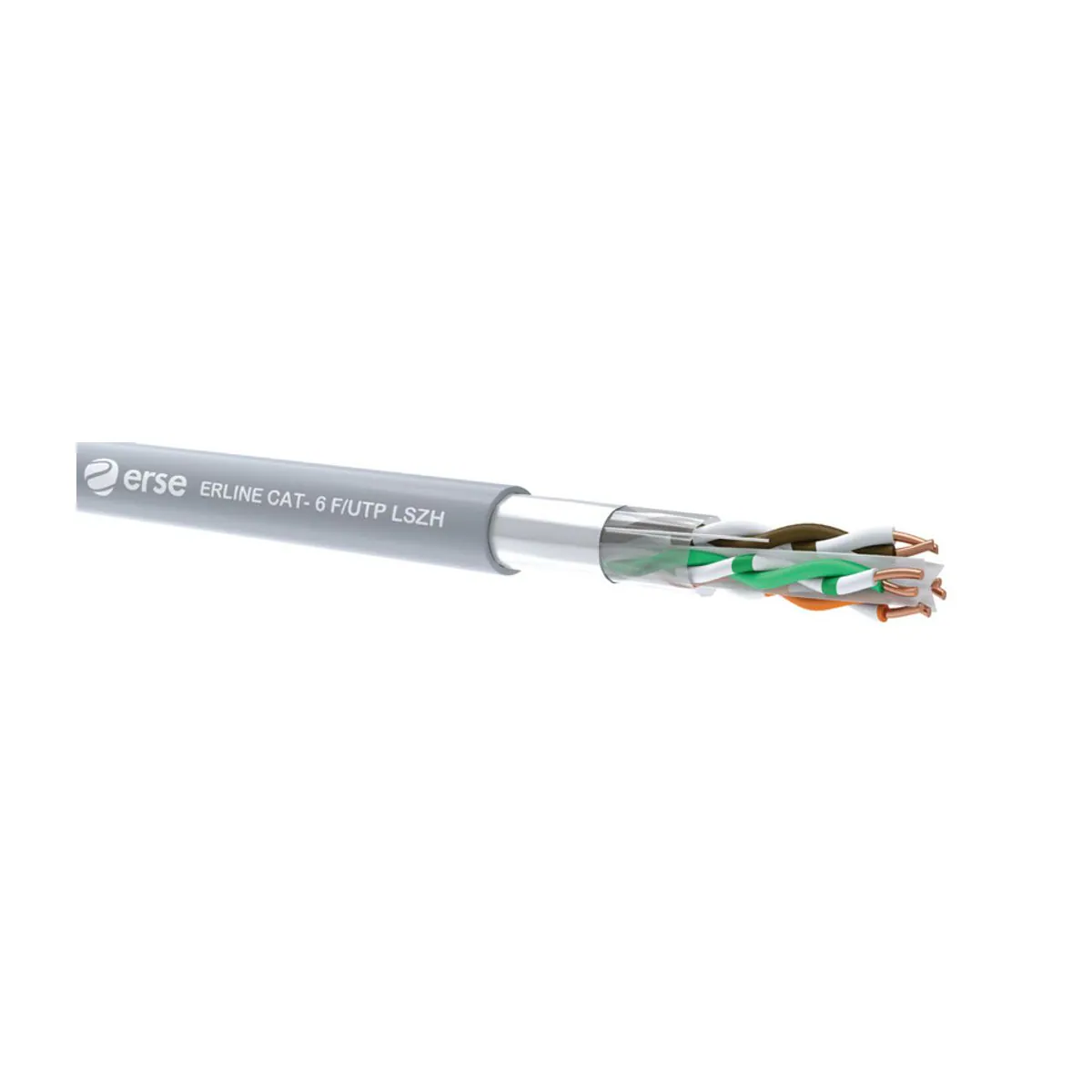

Erse ERLINE CAT-6 F/UTP LSZH 4x2x23 AWG Cable
- Brand: Erse Kablo
- SKU: FDER0146004A0023G
- MPN: FDER0146004A0023G
- Price: 5706.00 TRY + VAT · incl. VAT 6847.20 TRY
- Availability: Made to order
- CAT6 Cables
- Selection guide: CAT6 Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Erse ERLINE CAT-6 F/UTP LSZH 4x2x23 AWG Cable is a product in the CAT6 data cable product family of the Erse Kablo brand. Key technical features: Cable type: CAT-6 F/UTP; Core cross-section: 4x2x23 AWG.
| Core Cross-Section | 4x2x23 AWG |
|---|---|
| Cable Type | CAT6 F/UTP |
| Insulation Material | Solid PE İzolasyon |
| Stranding | 4 çift ve merkez elemanının birlikte bükümü |
| Cable Shield | Pes Bant + Kalaylı Toprak Teli + Al-Pes Bant |
| Outer Sheath Material | HFFR Kompaund |
| Outer Diameter | 6.2 mm |
| Outer Sheath Colour | RAL 7001 Grey |
| Insulation Resistance | 5000 MΩ·km (500 V) |
| Operating Voltage | 250 V (25 °C) |
| Test Voltage | 1200 V (Damar/Damar) |
| Minimum Bending Radius | 8x Kablo Ø |
| Impedance | 100 ± 15 Ω |
| Capacitance | 48 pF/m (1 kHz) |
| Velocity of Propagation | 67% |
| Operating Temperature | -20 °C … +70 °C |
| Flame Retardance / Fire Performance | Alev geciktiricilik: IEC 60332-1-2, VDE 0482-332-1-2, EN 60332-1-2; Duman yoğunluğu: IEC 61034-2, VDE 0482-1034-2, EN 61034-2; Korozif gaz: IEC 60754-2, VDE 0482-754-2, EN 60754-2; Halojensizlik: IEC 60754-1, VDE 0482-754-1, EN 60754-1, BS EN 60754-1; Alev yayılımı: IEC 60332-3-25, VDE 0482-332-3-25 |
| Attenuation (max.) | 1 MHz: 2,1; 10 MHz: 6; 16 MHz: 7,6; 20 MHz: 8,5; 62,5 MHz: 15,5; 100 MHz: 19,9; 125 MHz: 22,5; 155,5 MHz: 25,3; 200 MHz: 29,1; 250 MHz: 33 dB/100m |
| Near End Crosstalk (NEXT, min.) | 1 MHz: 74; 10 MHz: 59; 16 MHz: 56; 20 MHz: 55; 62,5 MHz: 47; 100 MHz: 44; 125 MHz: 43; 155,5 MHz: 42; 200 MHz: 40; 250 MHz: 38 dB |
| Return Loss (min.) | 1 MHz: 20; 10 MHz: 25; 16 MHz: 25; 20 MHz: 25; 62,5 MHz: 21,5; 100 MHz: 20,1; 125 MHz: 19,5; 155,5 MHz: 18,8; 200 MHz: 18,0; 250 MHz: 17,3 dB |
