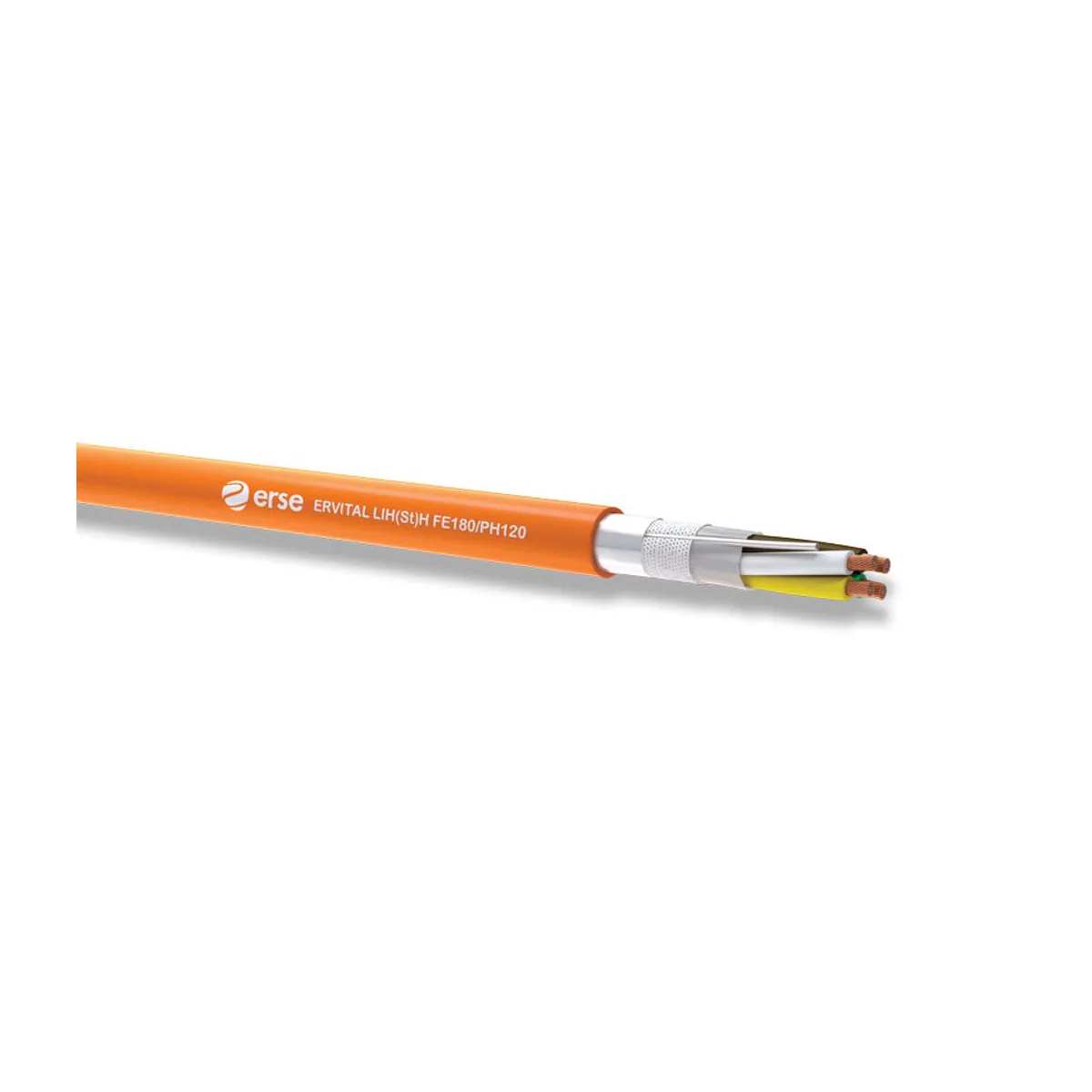

Erse LIH(St)H FE180/PH120 3x1.5 mm2 Cable
- Brand: Erse Kablo
- SKU: MDER010600300150O
- MPN: MDER010600300150O
- Price: 12961.00 TRY + VAT · incl. VAT 15553.20 TRY
- Availability: Made to order
- LIH(St)H Fire-Resistant Cables
- Selection guide: LIH(St)H Fire-Resistant Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Erse LIH(St)H FE180/PH120 3x1.5 mm2 Cable is a product in the fire-resistant cable product family of the Erse Kablo brand. Key technical features: Core cross-section: 3x1.5 mm2.
| Core Cross-Section | 3x1,5 mm² |
|---|---|
| Conductor | EN 60228 Class 5 Bükülü Elektrolitik Bakır |
| Insulation Material | EN 50363-1 EI2 Çapraz Bağlı Seramik Formunda Polimer Kompaund |
| Core Colour Code | DIN 47100 ya da siyah numaralı |
| Stranding | Uygun adımda katlar halinde |
| Separator Tape | Pes Bant +Cam Elyaf Bant |
| Cable Shield | Kalaylı Bakır Toprak Teli + Al-Pes Bant |
| Outer Sheath Material | EN 50290-2-27 HFFR Kompaund |
| Outer Sheath Colour | RAL 2003 Turuncu |
| Insulation Resistance | Min. 200 MΩ·km |
| Capacitance | Max. 120 nF/km |
| Operating Voltage | 500 V |
| Minimum Bending Radius | 7,5x Kablo Ø |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: -5 °C … +50 °C |
| Max. Conductor Temperature | +90 °C |
| Short-Circuit Temperature | 250 °C |
| Standards | TS 13734; VDE 0812 |
| Flame Retardance / Fire Performance | Alev geciktiricilik: EN 60332-1-2; Alev yayılımı: EN IEC 60332-3-24; Duman yoğunluğu: EN 61034-2; Korozif gaz: EN 60754-2; Halojensizlik: EN 60754-1; Devre bütünlüğü (FE180): IEC 60331-23/-21; Mekanik şoklu devre bütünlüğü (PH120): EN 50200 |
| Conductor Resistance | 13,3 Ω/km |
| Test Voltage | 2000 V (Damar/Damar) |
| Outer Diameter | 7.4 mm |
