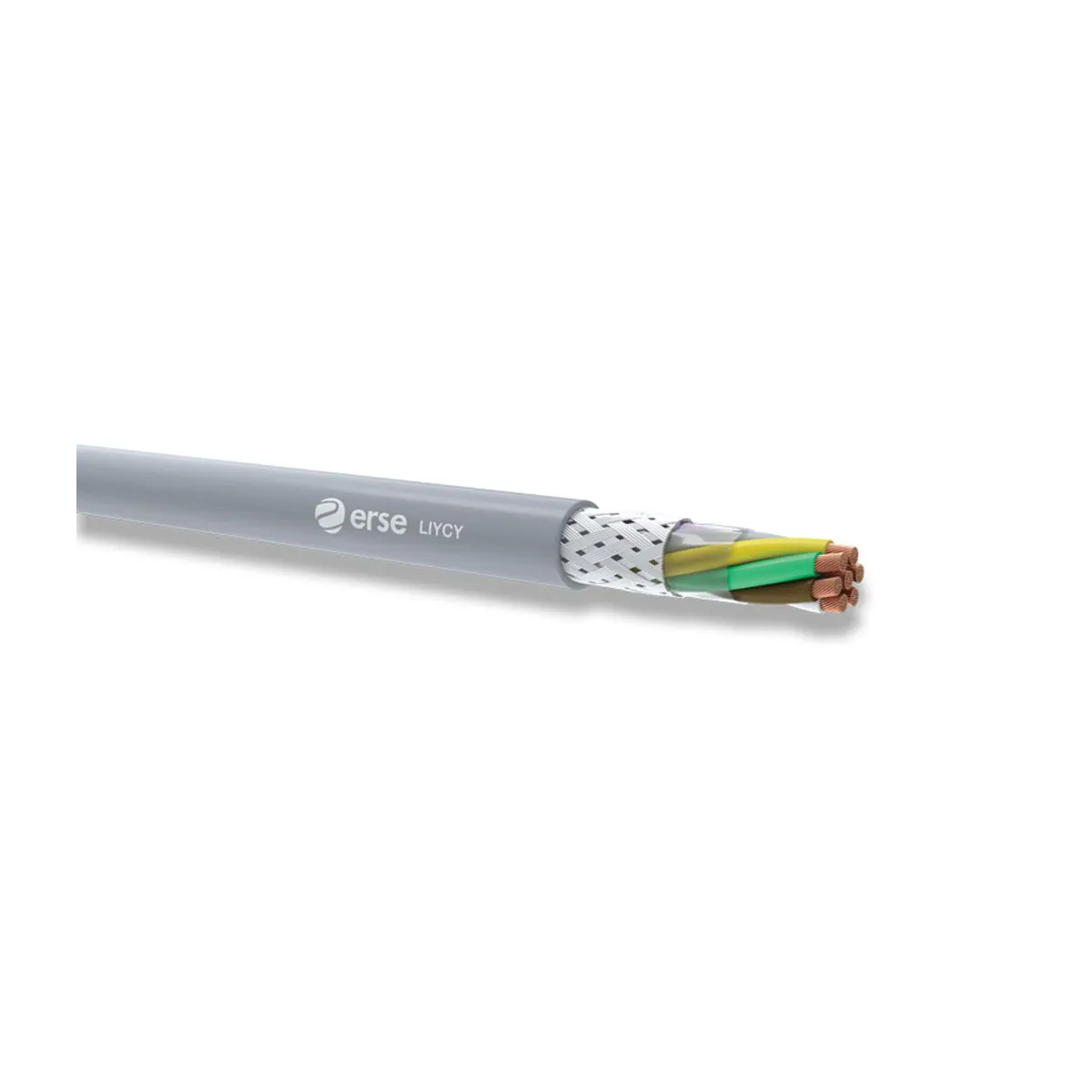

Erse LIYCY 4x0.50 mm2 Cable
- Brand: Erse Kablo
- SKU: MDER005700400050G
- MPN: MDER005700400050G
- Price: 6514.00 TRY + VAT · incl. VAT 7816.80 TRY
- Availability: Made to order
- LIYCY Signal Cables
- Erse Kablo LIYCY Signal Cables
- Selection guide: LIYCY Shielded Signal Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Erse LIYCY 4x0.50 mm2 Cable is a product in the control and signal cable product family of the Erse Kablo brand. Key technical features: Cable type: LIYCY; Core cross-section: 4x0.50 mm2.
| Core Cross-Section | 4x0,50 mm² |
|---|---|
| Cable Type | LIYCY |
| Conductor | IEC 60228; DIN VDE 0295; EN 60228 Class 5 Bükülü Elektrolitik Tavlı Bakır |
| Insulation Material | EN 50290-2-21 PVC Kompaund |
| Core Colour Code | DIN 47100 |
| Stranding | Uygun adımda katlar halinde |
| Separator Tape | PES Bant |
| Cable Shield | Kalaylı Bakır Örgü |
| Outer Sheath Material | EN 50290-2-22 PVC Kompaund |
| Outer Sheath Colour | RAL 7001 Grey |
| Impedance | 78 Ω |
| Inductance | 0,67 mH/km |
| Minimum Bending Radius | 10x Kablo Ø |
| Operating Temperature | -30 °C … +70 °C |
| Flame Retardance / Fire Performance | IEC 60332-1-2; DIN EN 60332-1-2; EN 60332-1-2 |
| Conductor Resistance | 39 Ω/km |
| Insulation Resistance | 20 MΩ·km |
| Capacitance | 120 pF/m |
| Current Carrying Capacity | 6 A |
| Operating Voltage | 300/500 V |
| Test Voltage | 2000 V |
| Outer Diameter | 6.1 mm |
| Copper Weight | 26 kg/km |
