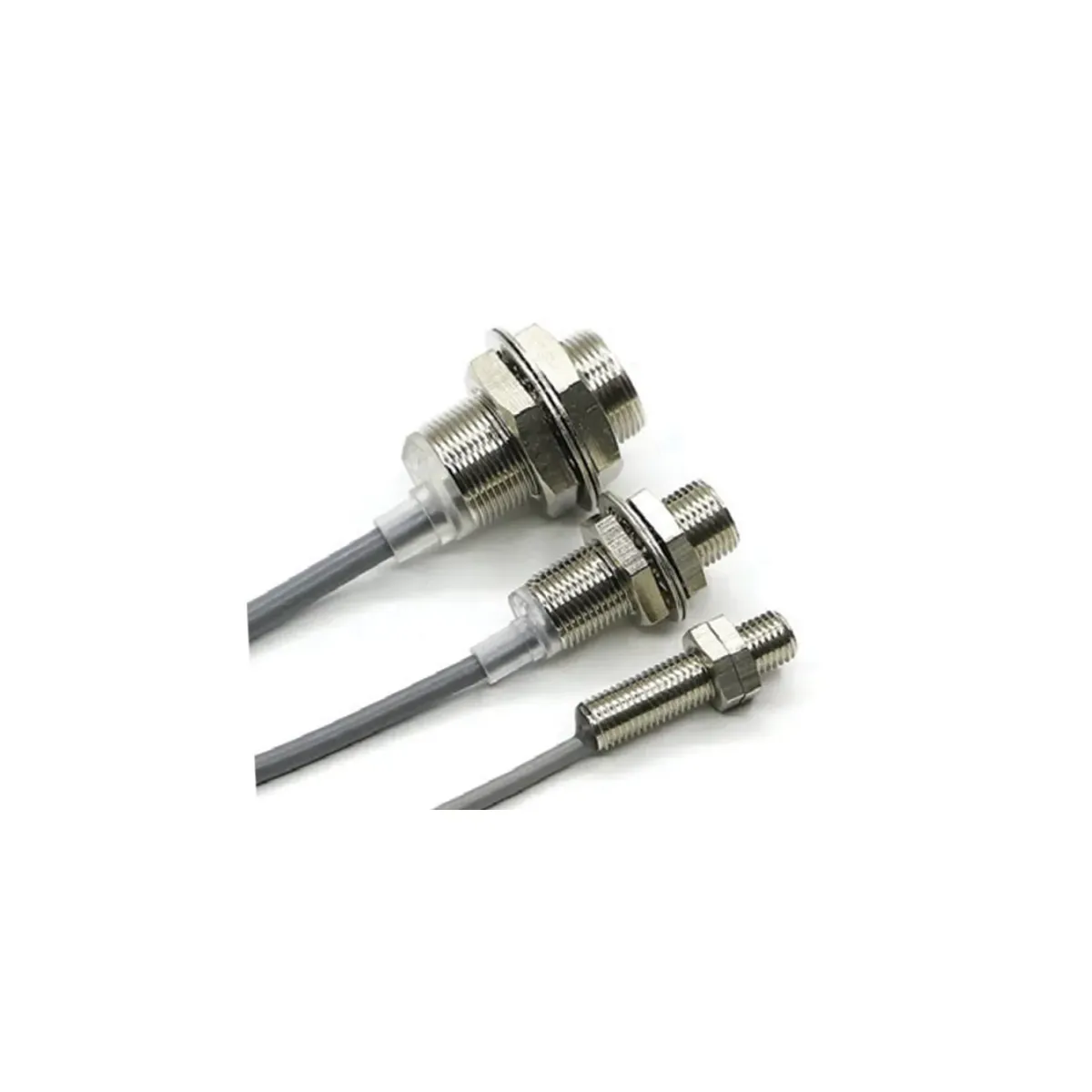

Isıso IMB10-M12-E0H Magnetic Sensor, M12, NPN NO, 10 mm
- Brand: Isıso
- SKU: IMB10-M12-E0H
- MPN: IMB10-M12-E0H
- Price: 402.20 TRY + VAT · incl. VAT 482.64 TRY
- Availability: In stock
- Magnetic and Piston Sensors
- Selection guide: Magnetic and Piston Sensors Selection Guide: Technical Criteria & Application Standards
Isıso IMB10-M12-E0H, magnetic sensor (M12, NPN NO, 10 mm). Technical specifications: Housing Type: M12; Output Type: NPN NO; Sensing Distance: 10 mm; Connection Type: Cable; Supply Voltage: 10-30 V DC; Protection Rating: IP67; Operating Temperature: -25...+70 °C; Protection Features: Short-circuit, overload and reverse polarity protection; Load Current: 100 mA; Housing Material: Brass, nickel-plated; Sensor Head Type: Flush. Stock code: IMB10-M12-E0H.
| Supply Voltage | 10-30 V DC |
|---|---|
| Body Type | M12 |
| Output Type | NPN NO |
| Sensing Distance | 10 mm |
| Connection Type | Wired |
| Sensor Head Type | Düz (flush) |
| Load Current | 100 mA |
| Housing Material | Pirinç, nikel kaplama |
| Protection Rating | IP67 |
| Protection Features | Kısa devre, aşırı load ve ters polarite koruması |
| Operating Temperature | -25...+70 °C |
