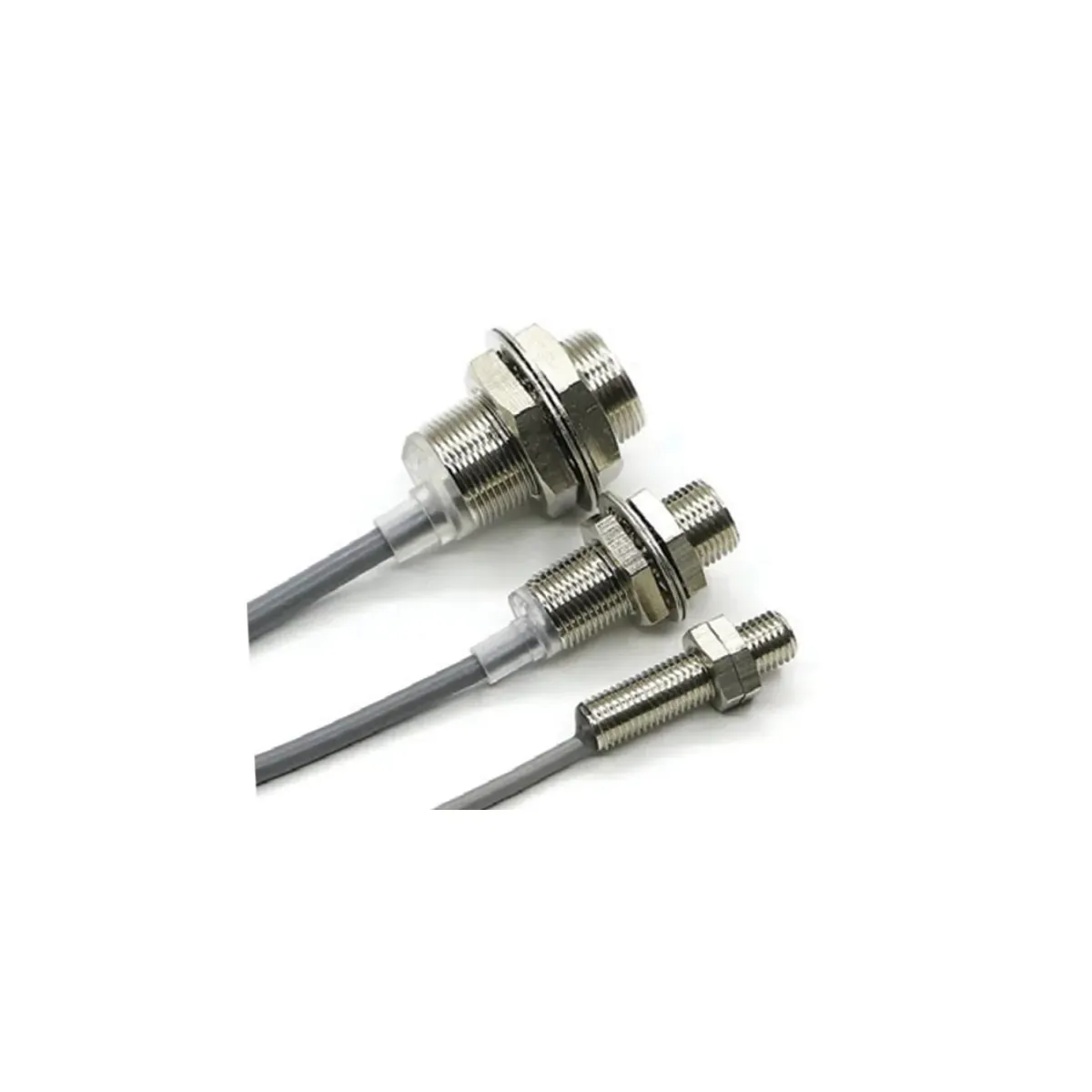

Isıso IMB5-M8-E2H Magnetic Sensor, M8, PNP NO, 5 mm
- Brand: Isıso
- SKU: IMB5-M8-E2H
- MPN: IMB5-M8-E2H
- Price: 683.74 TRY + VAT · incl. VAT 820.49 TRY
- Availability: In stock
- Magnetic and Piston Sensors
- Selection guide: Magnetic and Piston Sensors Selection Guide: Technical Criteria & Application Standards
Isıso IMB5-M8-E2H, magnetic sensor (M8, PNP NO, 5 mm). Technical specifications: Housing Type: M8; Output Type: PNP NO; Sensing Distance: 5 mm; Connection Type: Cabled; Supply Voltage: 10-30 V DC; Protection Rating: IP67; Operating Temperature: -25...+70 °C; Protection Features: Short-circuit, overload and reverse polarity protection; Load Current: 100 mA; Housing Material: Brass, nickel-plated; Sensor Head Type: Flush. Stock code: IMB5-M8-E2H.
| Supply Voltage | 10-30 V DC |
|---|---|
| Body Type | M8 |
| Output Type | PNP NO |
| Sensing Distance | 5 mm |
| Connection Type | Wired |
| Sensor Head Type | Düz (flush) |
| Load Current | 100 mA |
| Housing Material | Pirinç, nikel kaplama |
| Protection Rating | IP67 |
| Protection Features | Kısa devre, aşırı load ve ters polarite koruması |
| Operating Temperature | -25...+70 °C |
