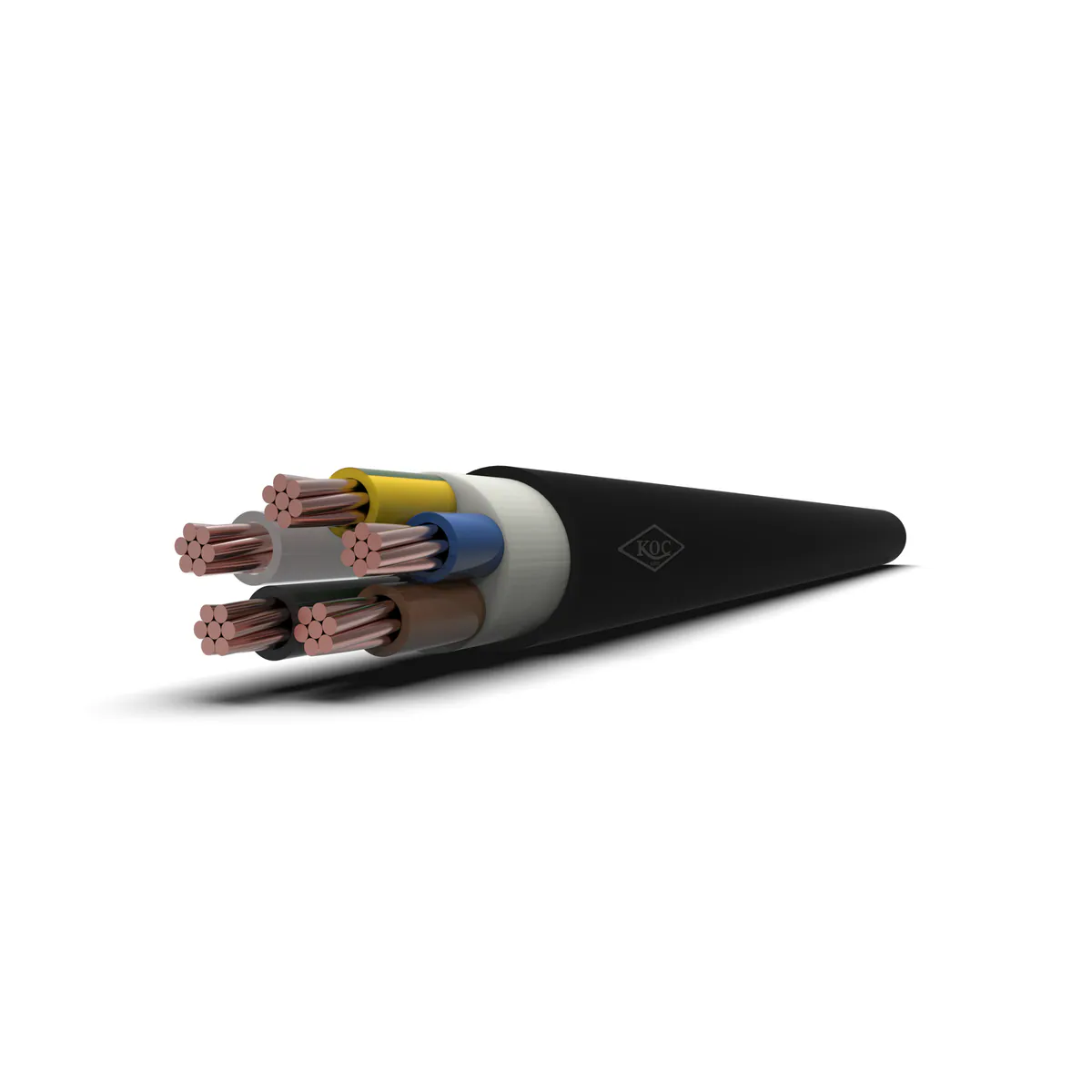

Koç N2XH 4x2.5 mm2 Halogen-Free Cable
- Brand: Koç Kablo
- SKU: KOCWB0334
- Price: 8720.80 TRY + VAT · incl. VAT 10464.96 TRY
- Availability: In stock
- N2XH Cables
- Koç Kablo N2XH Cables
- Selection guide: N2XH Halogen-Free Power Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
The Koç N2XH 4x2.5 mm2 Halogen-Free Cable is a product in the N2XH power cable product family of the Koç Kablo brand. Key technical features: Core cross-section: 4x2.5 mm2.
| Core Cross-Section | 4x2,5 mm² |
|---|---|
| Conductor | Bir ya da Çok Telli Bakır İletken |
| Insulation Material | Çapraz Bağlı Polietilen (XLPE) |
| Outer Sheath Material | Halojen İçermeyen Alev Geciktiricili (HFFR) |
| Standards | TS HD 604 S1, VDE 0276 |
| Operating Temperature | Max. 90 °C |
| Minimum Bending Radius | 12 x D |
| Rated Voltage | 0,6/1 kV |
| Short-Circuit Temperature | Max. 250 °C |
| Outer Diameter | 13 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 7,41 Ω/km (DC) |
| Current Carrying Capacity | Toprakta: 40 A; Havada: 32 A |
