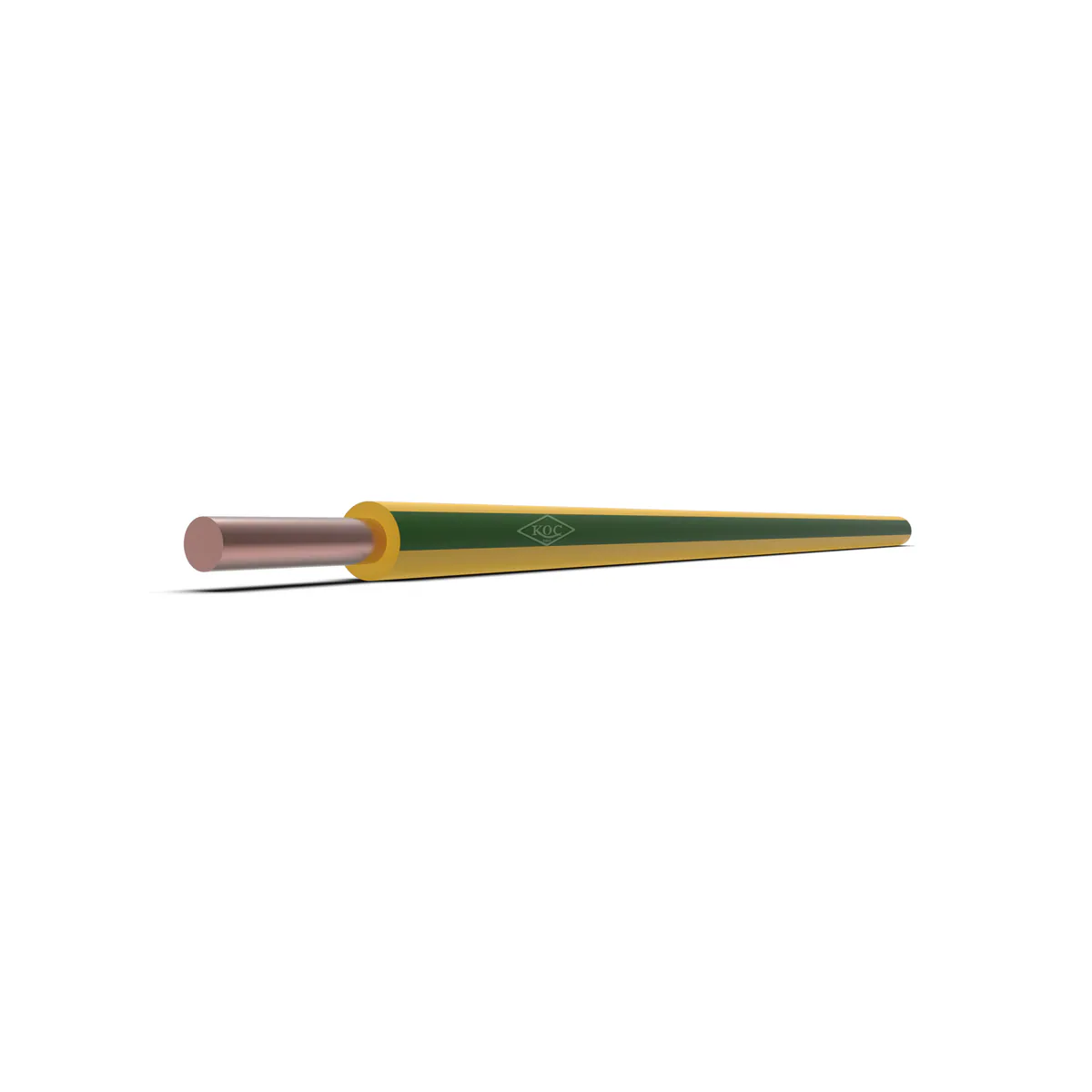

Koç NYA 1x4 mm2 H07V-U Yellow-Green Grounding Cable
- Brand: Koç Kablo
- SKU: KOCWB0068
- Price: 2595.50 TRY + VAT · incl. VAT 3114.60 TRY
- Availability: Made to order
- NYA Cables
- Koç Kablo NYA Cables
- Selection guide: NYA Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
The Koç NYA 1x4 mm2 H07V-U Yellow-Green Earthing Cable is a product in the H05V-U / H07V-U installation cable product family of the Koç Kablo brand. Key technical features: Single-core copper conductor; PVC insulation; 70 °C maximum operating temperature; Dry locations, conduit and flush-mounted applications; Cable type: H07V-U; Core cross-section: 1x4 mm2.
| Core Cross-Section | 1x4 mm² |
|---|---|
| Color | Yellow/Green |
| Conductor | Tek Telli Bakır İletken |
| Insulation Material | PVC |
| Standards | TS EN 50525-2-31, IEC 60227-3 |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Rated Voltage | 450/750 V |
| Flame Retardance / Fire Performance | Yangın tepki sınıfı: Eca (TS EN 50575/A1:2016) |
| Outer Diameter | 3,7 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 4,61 Ω/km (DC) |
| Current Carrying Capacity | Toprakta: 25 A; Havada: 42 A |
