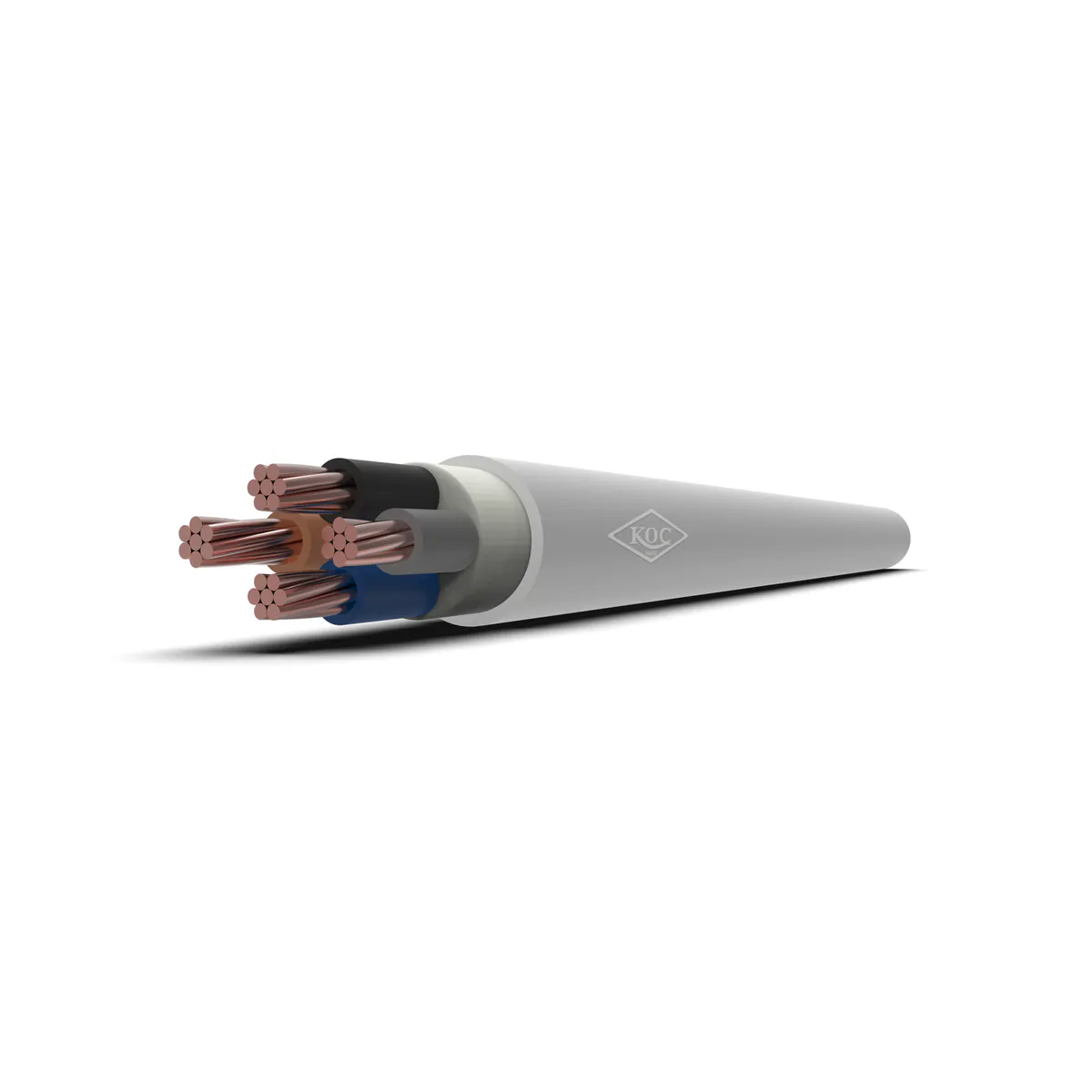

Koç NYM 4x10 mm2 Antigron NVV Cable
- Brand: Koç Kablo
- SKU: KOCWB0292
- Price: 30132.60 TRY + VAT · incl. VAT 36159.12 TRY
- Availability: In stock
- NYM Antigron Cables
- Koç Kablo NYM Antigron Cables
- Selection guide: NYM Antigron Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
The Koç NYM 4x10 mm2 Antigron NVV Cable is a product in the NYM Antigron cable product family of the Koç Kablo brand. Key technical features: Core cross-section: 4x10 mm2.
| Core Cross-Section | 4x10 mm² |
|---|---|
| Conductor | Tek ya da Çok Telli Bakır İletken |
| Insulation Material | PVC |
| Outer Sheath Material | PVC |
| Standards | TS HD 21.4 S2, VDE 0250-204, IEC 60227-4 |
| Operating Temperature | Max. 70 °C |
| Minimum Bending Radius | 12 x D |
| Short-Circuit Temperature | Max. 160 °C |
| Rated Voltage | 300/500 V |
| Outer Diameter | 18,4 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 1,83 Ω/km (DC) |
| Current Carrying Capacity | Toprakta: 61 A |
