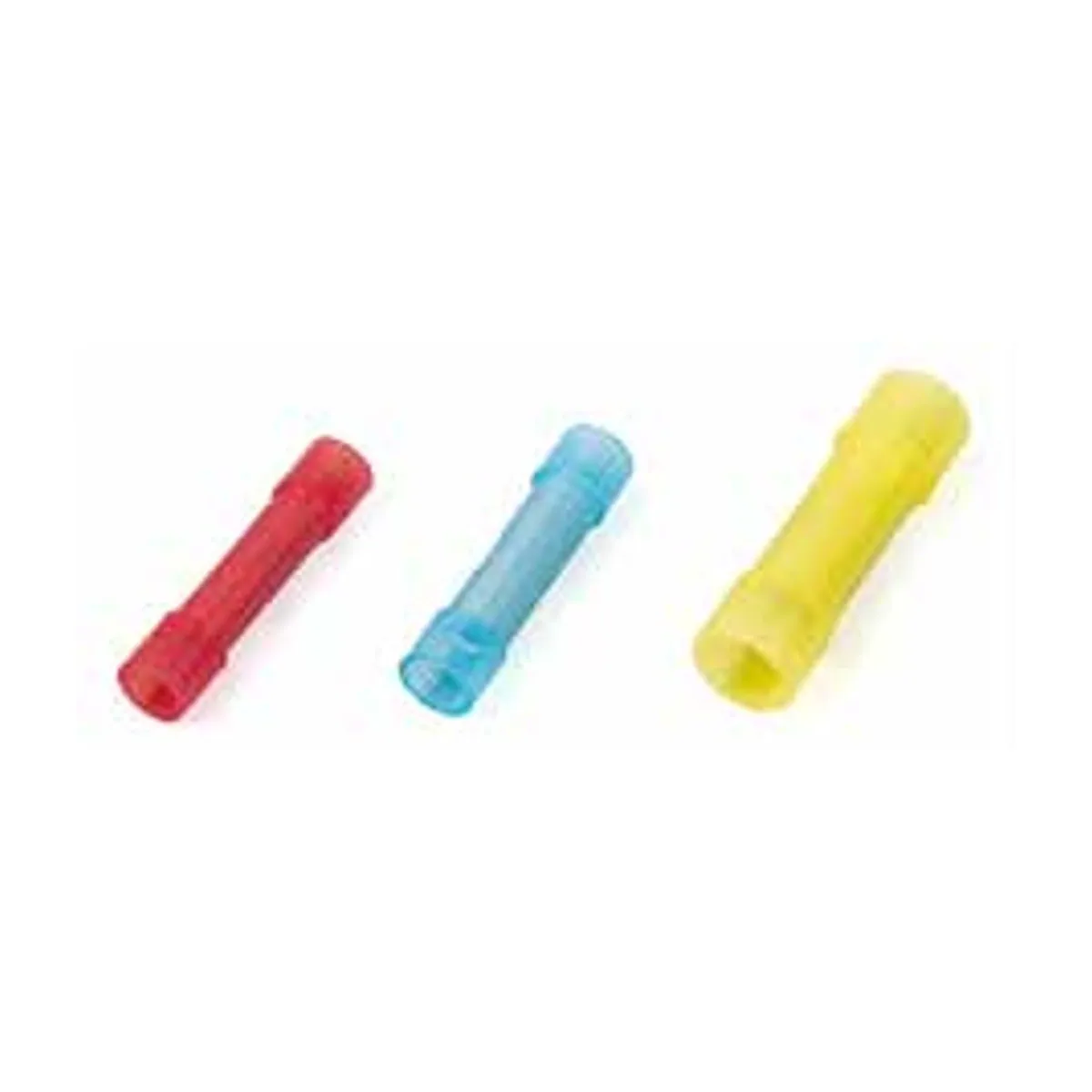

KSN KBHT-3 Heat-Shrink Splice Sleeve 4-6 mm2 Yellow
- Brand: KSN
- SKU: KSN3282
- MPN: KBHT-3
- Price: 987.00 TRY + VAT · incl. VAT 1184.40 TRY
- Availability: In stock
- Splice Joints
- KSN Splice Joints
- Selection guide: Splice Joints Selection Guide: Technical Criteria and Engineering Practice
The KSN KBHT-3 is a yellow splice sleeve with heat-shrink sleeve insulation, used to join conductors with a 4-6 mm² (12-10 AWG) cross-section. The splice body is tin-plated copper; the insulation is a heat-shrink sleeve. The catalog gives a maximum operating temperature of 105 °C and a voltage of 600 V. Dimensions in the catalog: length (L) 27.0 mm, inner diameter (d) 3.6 mm, outer diameter (D) 4.8 mm. The product is listed in the catalog as a bag of 100; sales are made in quantities of 100 and multiples. Used to join conductors at cable splice points.
| Cable Terminal Type | Ek Muf Tip |
|---|---|
| Splice Type | Isı Büzüşmeli |
| Ferrule Size | 4–6 mm |
| Ferrule/Lug Insulation | İzoleli |
| Color | Yellow |
| Cable Cross-Section | 4,0 ~ 6,0 mm² / 12 ~ 10 AWG |
| Material | Bakır, Kalay Kaplı |
| Isolation | Isı ile daralan makaron |
| Operating Temperature | Maksimum 105 °C |
| Voltage | 600 V |
| Length | 27 mm |
| Inner Diameter | 3.6 mm |
| Outer Diameter | 4.8 mm |
