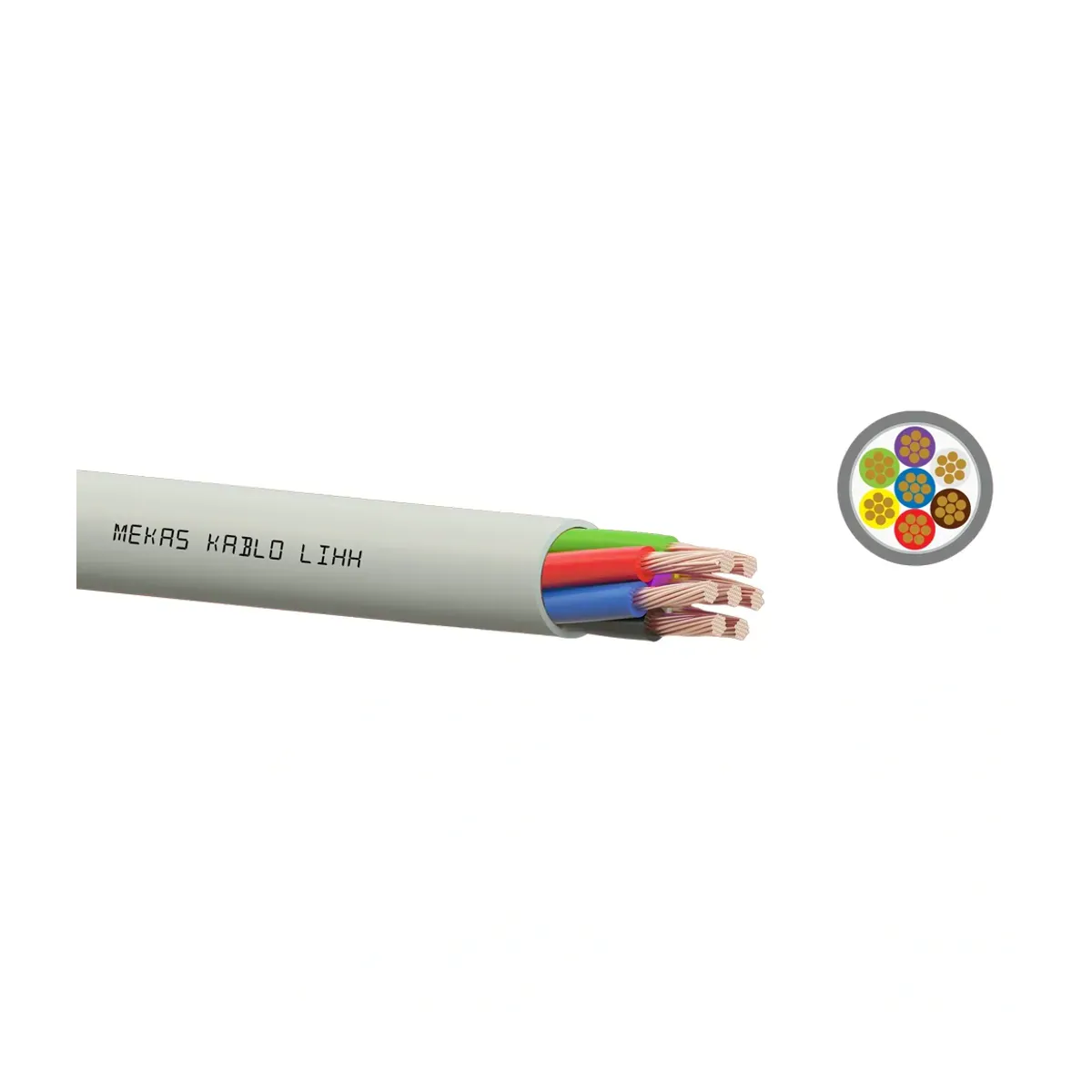

Mekas 10x1.5 mm2 LIHH Halogen Free Signal Cable
- Brand: Mekas Kablo
- SKU: 75260
- MPN: 75260
- Price: 7779.00 TRY + VAT · incl. VAT 9334.80 TRY
- Availability: Made to order
- LIHH Signal Cables
- Mekas Kablo LIHH Signal Cables
- Selection guide: LIHH Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 10x1.5 mm2 LIHH Halogen Free Signal Cable. Technical data: Cable Type LIHH - HFFR. The product is sold per meter; the minimum order is 50 meters. Stock code: 75260.
| Cable Type | LIHH - HFFR |
|---|---|
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | HFFR compound, EN 50290-2-26 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Stranding | Cores stranded in layers with suitable lay length |
| Separator Tape | Polyester bant / Talk Pudralı / Boru Tipi |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Outer Sheath Colour | RAL 7035, Grey |
| Standards | VDE 0812 & TS 13755acc. to |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 12 x D |
| Operating Voltage | Uo/U: 300/500 V |
| Insulation Resistance | Min. 20 MΩ·km |
| Test Voltage | 2000 V (AC 50 Hz) |
| Capacitance | Max. 120 nF/km (mutual capacitance) |
| Flame Retardance / Fire Performance | Alev geciktirme testi: EN 60332-1-2 & IEC 60332-1-2; alev yayılım testi: EN IEC 60332-3-24 Cat C; duman yoğunluğu testi: EN 61034-2 & IEC 61034-2; halojensizlik testi: EN 60754-1/-2 & IEC 60754-1/-2 |
| Outer Diameter | 12,20 mm (±%5) |
| Copper Weight | 121,2 kg/km |
