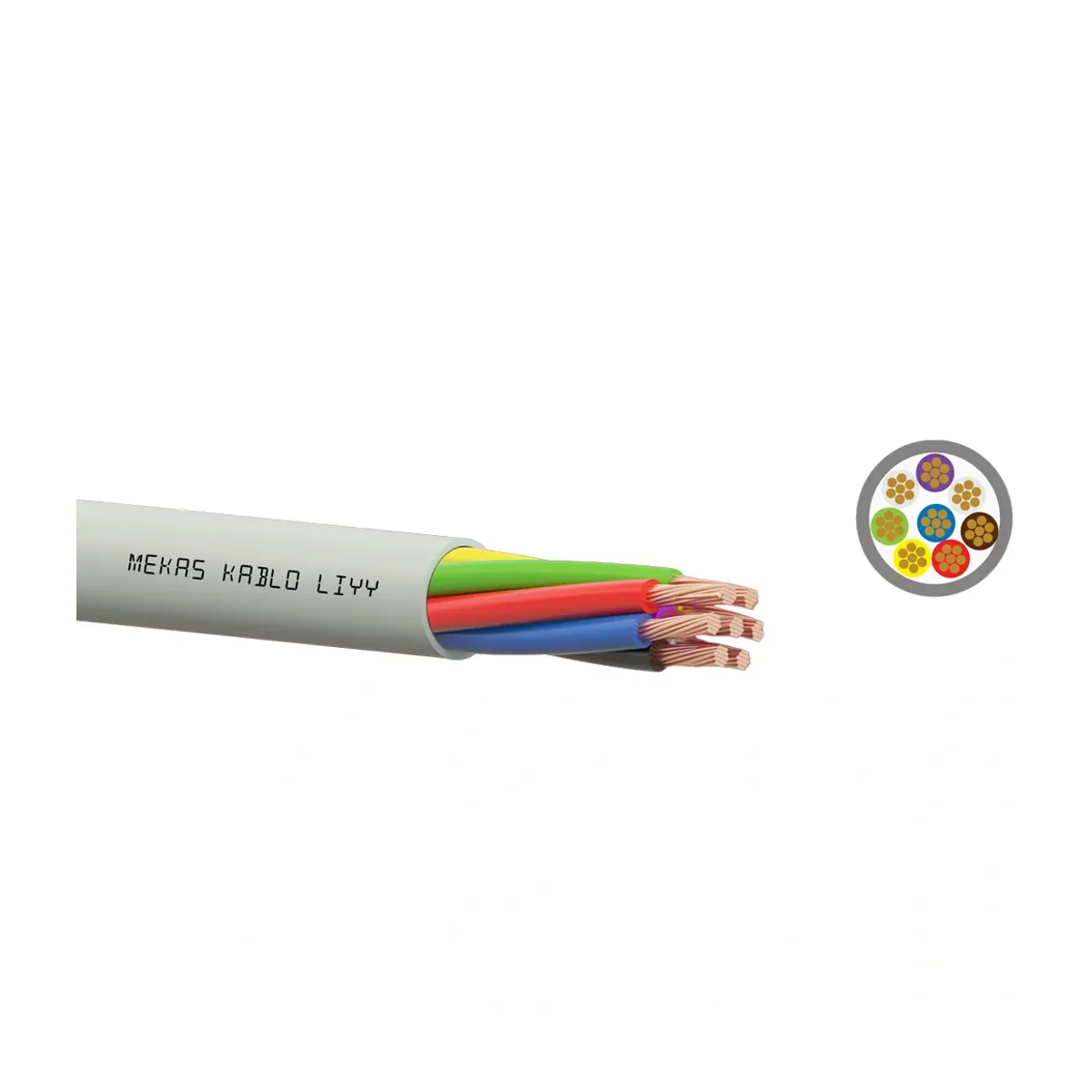

Mekas 12x0.50 mm2 LIYY Signal Cable
- Brand: Mekas Kablo
- SKU: 73112
- MPN: 73112
- Price: 3265.90 TRY + VAT · incl. VAT 3919.08 TRY
- Availability: Made to order
- LIYY Signal Cables
- Mekas Kablo LIYY Signal Cables
- Selection guide: LIYY Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 12x0.50 mm2 LIYY Signal Cable. Technical data: Cable Type LIYY. The product is sold per meter; the minimum order is 50 meters. Stock code: 73112.
| Cable Type | LIYY |
|---|---|
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | PVC compound, EN 50290-2-21/TI51 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Stranding | Cores stranded in layers with suitable lay length |
| Outer Sheath Material | PVC compound, EN 50290-2-22/TM51 |
| Outer Sheath Colour | RAL 7035, Grey |
| Standards | VDE 0812 & TS 13755 |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 10 x D |
| Operating Voltage | Uo/U: 300/500 V; tepe voltajı: 500 V |
| Insulation Resistance | Min. 20 MΩ·km |
| Test Voltage | 2000 V (AC 50 Hz) |
| Capacitance | Max. 120 nF/km |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Outer Diameter | 8,70 mm (±%5) |
