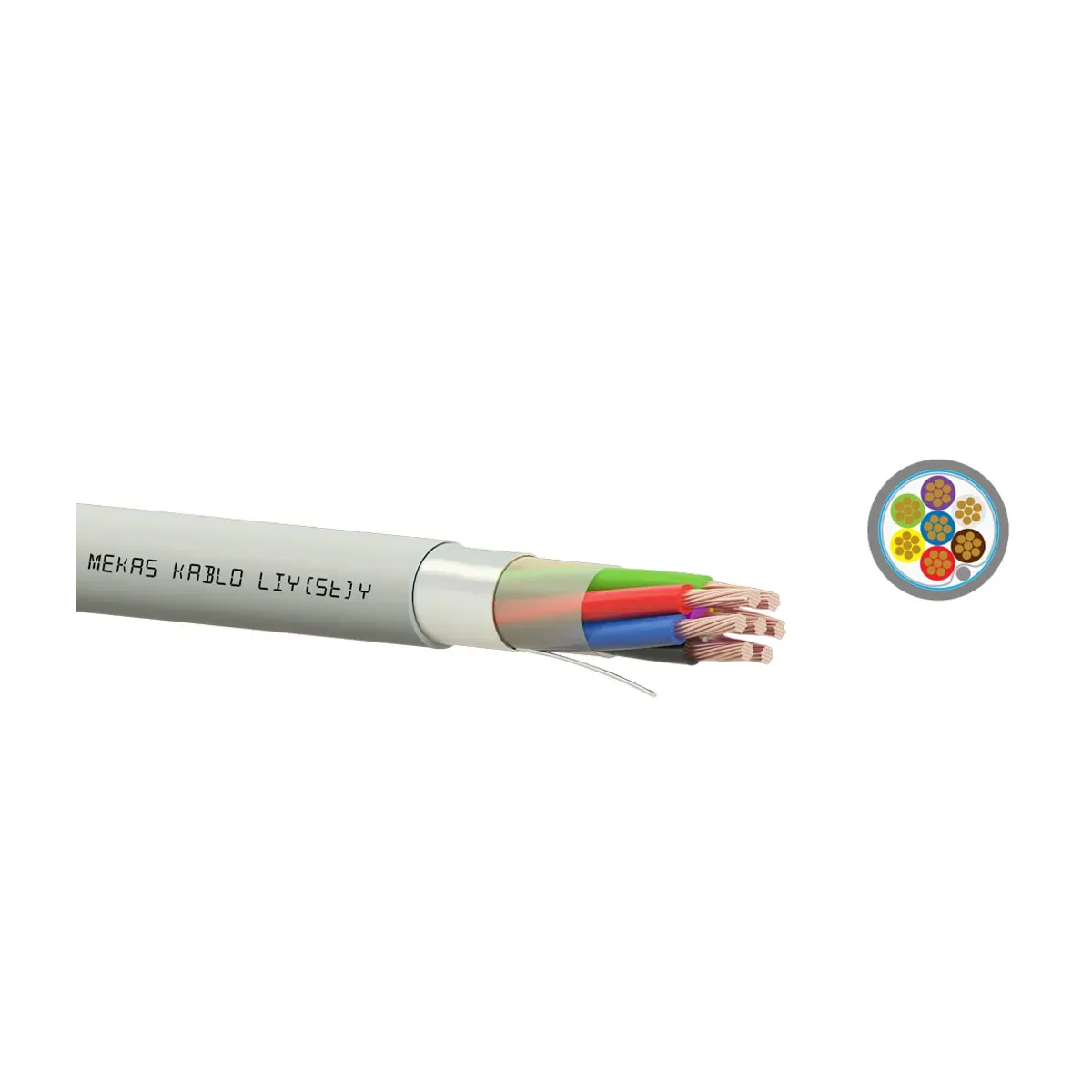

Mekas 2x1.5 mm2 LIY(St)Y Shielded Signal Cable
- Brand: Mekas Kablo
- SKU: 73952
- MPN: 73952
- Price: 1720.05 TRY + VAT · incl. VAT 2064.06 TRY
- Availability: Made to order
- LIY(St)Y Signal Cables
- Mekas Kablo LIY(St)Y Signal Cables
- Selection guide: LIY(St)Y Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 2x1.5 mm2 LIY(St)Y Shielded Signal Cable. Technical data: Cable Type LIY(St)Y. The product is sold per meter; the minimum order is 50 meters. Stock code: 73952.
| Cable Type | LIY(St)Y |
|---|---|
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | PVC compound, EN 50290-2-21/TI51 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Separator Tape | Polyester tape |
| Outer Sheath Material | PVC compound, EN 50290-2-22/TM51 |
| Outer Sheath Colour | RAL 7035, Grey |
| Standards | VDE 0812 & TS 13755 |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Capacitance | Max. 150 nF/km (mutual capacitance) |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2 |
| Operating Voltage | Uo/U: 300/500 V (≥ 0,50 mm²); tepe voltajı: 500 V (≥ 0,22 mm²) |
| Insulation Resistance | Min. 20 MΩ·km (≥ 0,50 mm²) |
| Test Voltage | 2000 V (AC 50 Hz; ≥ 0,50 mm²) |
| Outer Diameter | 6,70 mm (±%5) |
| Cable Shield | Kalaylı bakır toprak teliyle birlikte aluminyum polyester bant |
