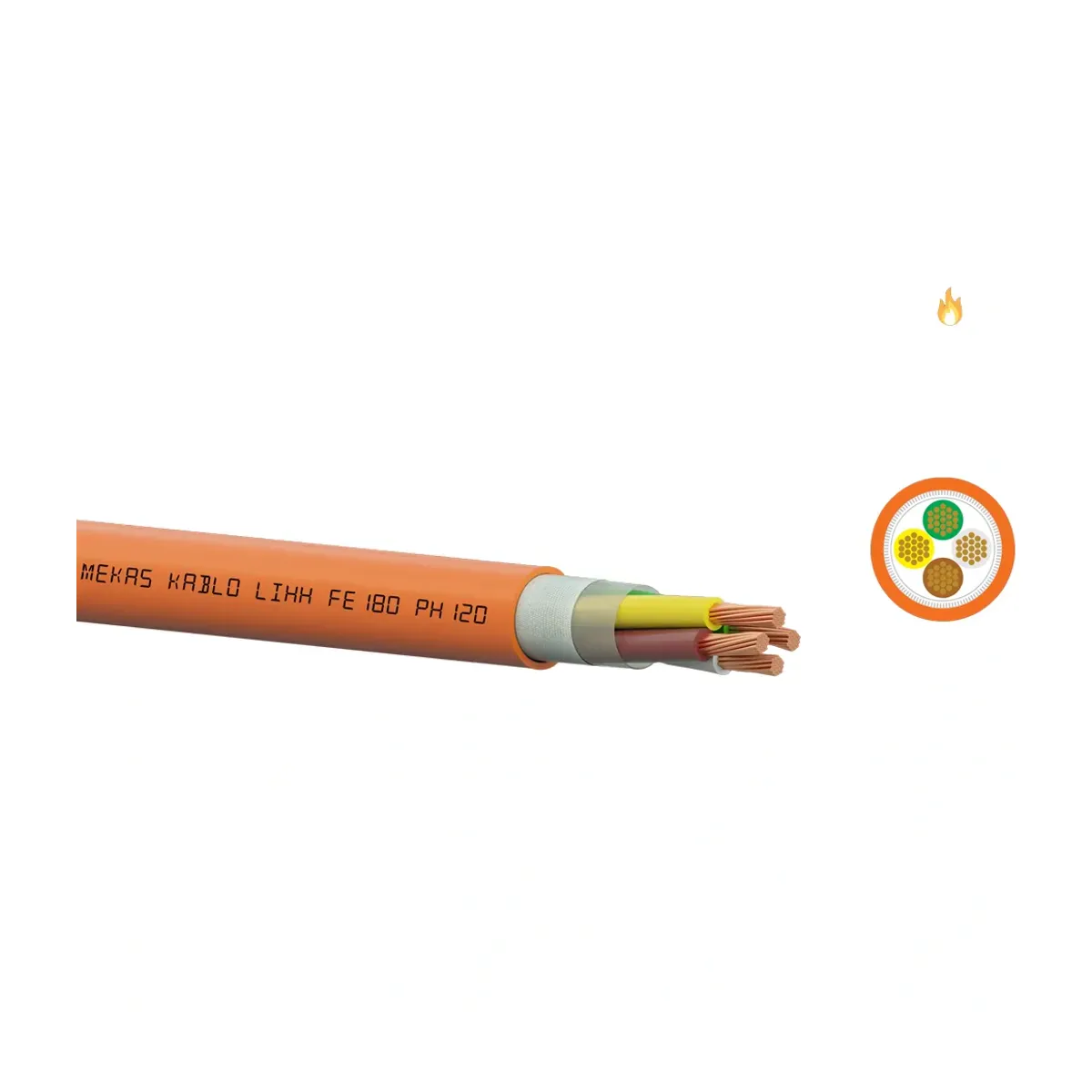

Mekas 4x0.75 mm2 LIHH Halogen Free Fire-Resistant Signal Cable FE180/PH120
- Brand: Mekas Kablo
- SKU: 71154
- MPN: 71154
- Price: 2275.25 TRY + VAT · incl. VAT 2730.30 TRY
- Availability: Made to order
- LIHH Fire-Resistant Cables
- Mekas Kablo LIHH Fire-Resistant Cables
- Selection guide: LIHH Fire-Resistant Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 4x0.75 mm2 LIHH Halogen Free Fire-Resistant Signal Cable FE180/PH120. Fire-resistant cables are manufactured to keep the circuit operational for a specified time under flame; FE180/PH120 classes are common. Technical data: Core Cross-Section 4x0.75mm2, Cable Type LIHH - FE180 HFFR. The product is sold per meter; the minimum order is 50 meters. Stock code: 71154.
| Core Cross-Section | 4x0,75 mm² |
|---|---|
| Cable Type | LIHH - FE180 HFFR |
| Conductor | Bükülü Bakır Tel Class 5 |
| Insulation Material | Seramikleşen Silikon |
| Core Colour Code | DIN 47100 Renk Kodlu |
| Separator Tape | PES Bant |
| Flame Barrier | Cam Elyaf Bant |
| Outer Sheath Material | HFFR |
| Outer Sheath Colour | Orange |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Operating Voltage | 300/500 V |
| Standards | TS 13755, EN 60228, EN 50290-2-26, EN 50290-2-27 |
| Flame Retardance / Fire Performance | EN 60332-1-2, EN 60754-1/2, EN 61034-2, EN 50200, IEC 60331-21 |
| Conductor Resistance | 26 Ω/km |
| Test Voltage | 1200 V |
