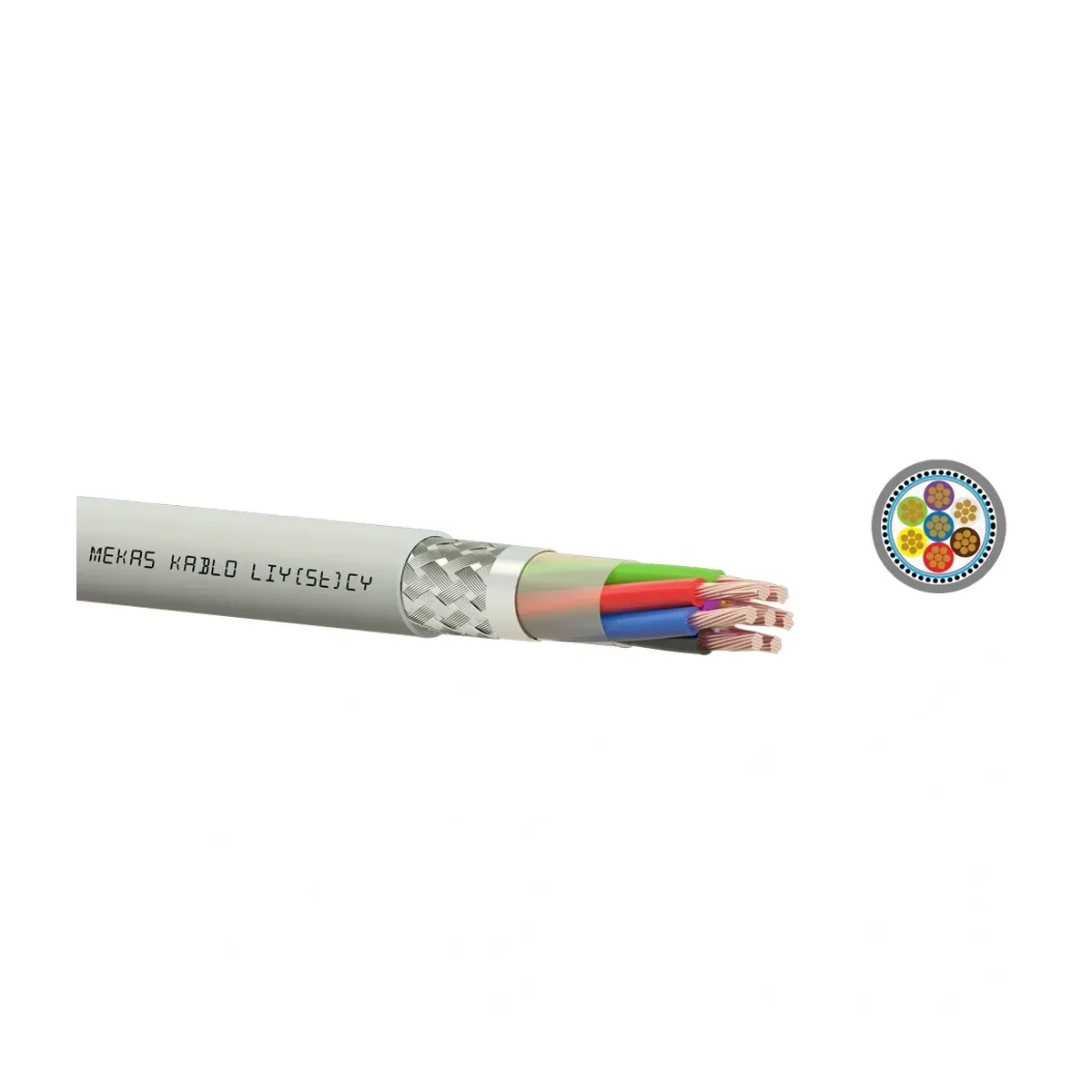

Mekas 5x0.22 mm2 LIY(St)CY Shielded Signal Cable
- Brand: Mekas Kablo
- SKU: 74055
- MPN: 74055
- Price: 1201.75 TRY + VAT · incl. VAT 1442.10 TRY
- Availability: In stock
- LIY(St)CY Signal Cables
- Mekas Kablo LIY(St)CY Signal Cables
- Selection guide: LIY(St)CY Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 5x0.22 mm2 LIY(St)CY Shielded Signal Cable. Technical data: Cable Type LIY(St)CY. The product is sold per meter; the minimum order is 50 meters. Stock code: 74055.
| Cable Type | LIY(St)CY |
|---|---|
| Conductor | Bükülgen çıplak bakır teller, EN 60228 Class 5 (7x0,19 mm Cu) |
| Insulation Material | PVC compound, EN 50290-2-21/TI51 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Stranding | Cores stranded in layers with suitable lay length |
| Separator Tape | Polyester tape |
| Outer Sheath Material | PVC compound, EN 50290-2-22/TM51 |
| Outer Sheath Colour | RAL 7035, Grey |
| Standards | VDE 0812 & TS 13755 |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Operating Voltage | 250 V; tepe voltajı: 500 V |
| Insulation Resistance | Min. 200 MΩ·km |
| Test Voltage | 1200 V (AC 50 Hz) |
| Capacitance | Max. 150 nF/km |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Outer Diameter | 5,10 mm (±%5) |
| Cable Shield | Aluminyum polyester bant & kalaylı bakır örgü; 0,22 mm² (7x0,20 mm) toprak teli |
