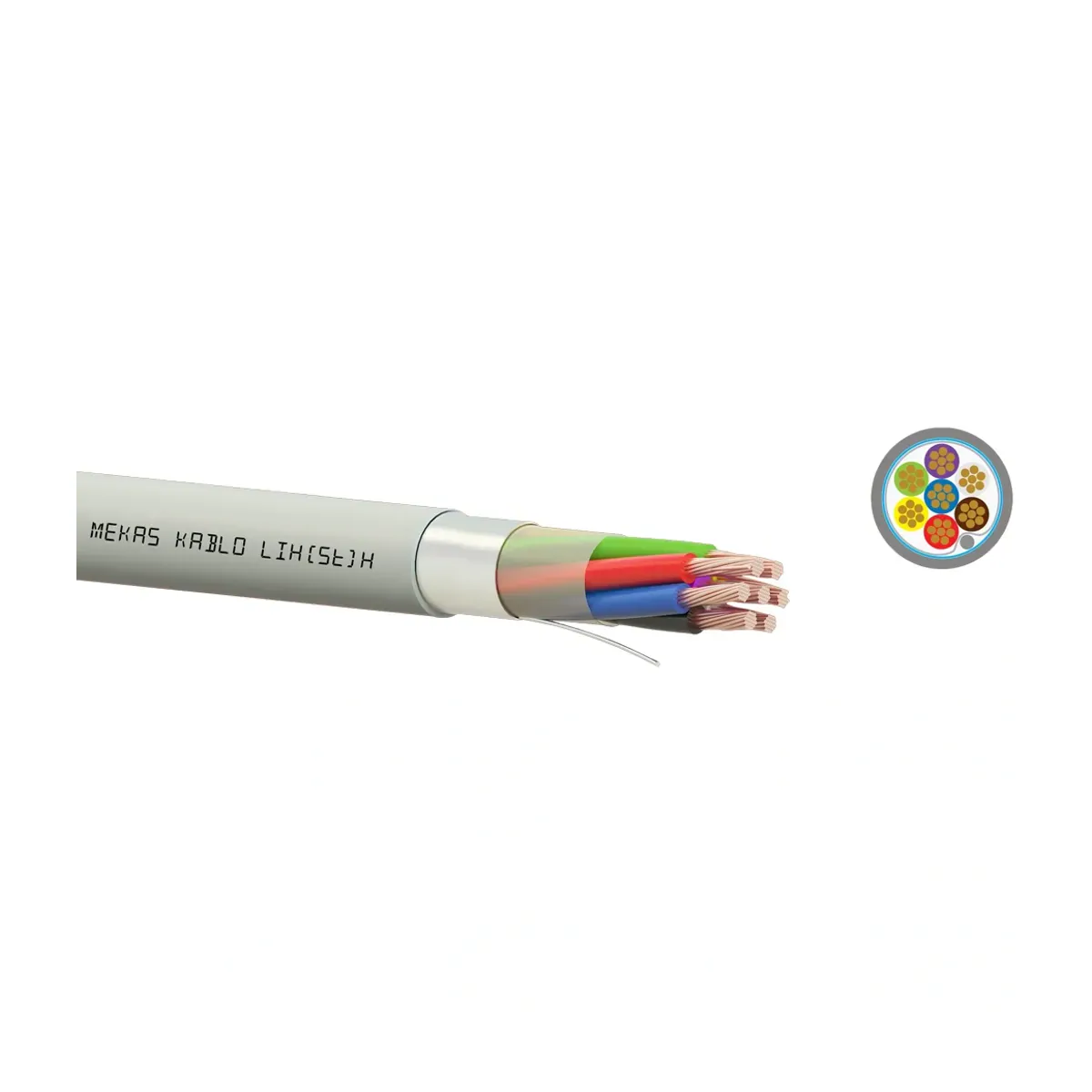

Mekas 7x2.5 mm2 LIH(St)H Halogen-Free Shielded Signal Cable
- Brand: Mekas Kablo
- SKU: 76007
- MPN: 76007
- Price: 9085.05 TRY + VAT · incl. VAT 10902.06 TRY
- Availability: Made to order
- LIH(St)H Signal Cables
- Mekas Kablo LIH(St)H Signal Cables
- Selection guide: LIH(St)H Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 7x2.5 mm2 LIH(St)H Halogen-Free Shielded Signal Cable. Technical data: Cable Type LIH(St)H - HFFR. The product is sold per meter; the minimum order is 50 meters. Stock code: 76007.
| Cable Type | LIH(St)H - HFFR |
|---|---|
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | HFFR compound, EN 50290-2-26 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Separator Tape | Polyester tape |
| Outer Sheath Material | HFFR compound, EN 50290-2-27 |
| Outer Sheath Colour | RAL 7035, Grey |
| Standards | VDE 0812 & TS 13755 |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Capacitance | Max. 150 nF/km (mutual capacitance) |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2; Alev yayılım testi: EN IEC 60332-3-24 Cat C; Duman yoğunluğu testi: EN 61034-2 & IEC 61034-2; Halojensizlik özelliği testi: EN 60754-1/-2 & IEC 60754-1/-2 |
| Operating Voltage | Uo/U: 300/500 V (≥ 0,50 mm²) |
| Insulation Resistance | Min. 20 MΩ·km (≥ 0,50 mm²) |
| Test Voltage | 2000 V (AC 50 Hz; ≥ 0,50 mm²) |
| Outer Diameter | 11,10 mm (±%5) |
| Cable Shield | Kalaylı bakır toprak teliyle birlikte aluminyum polyester bant |
