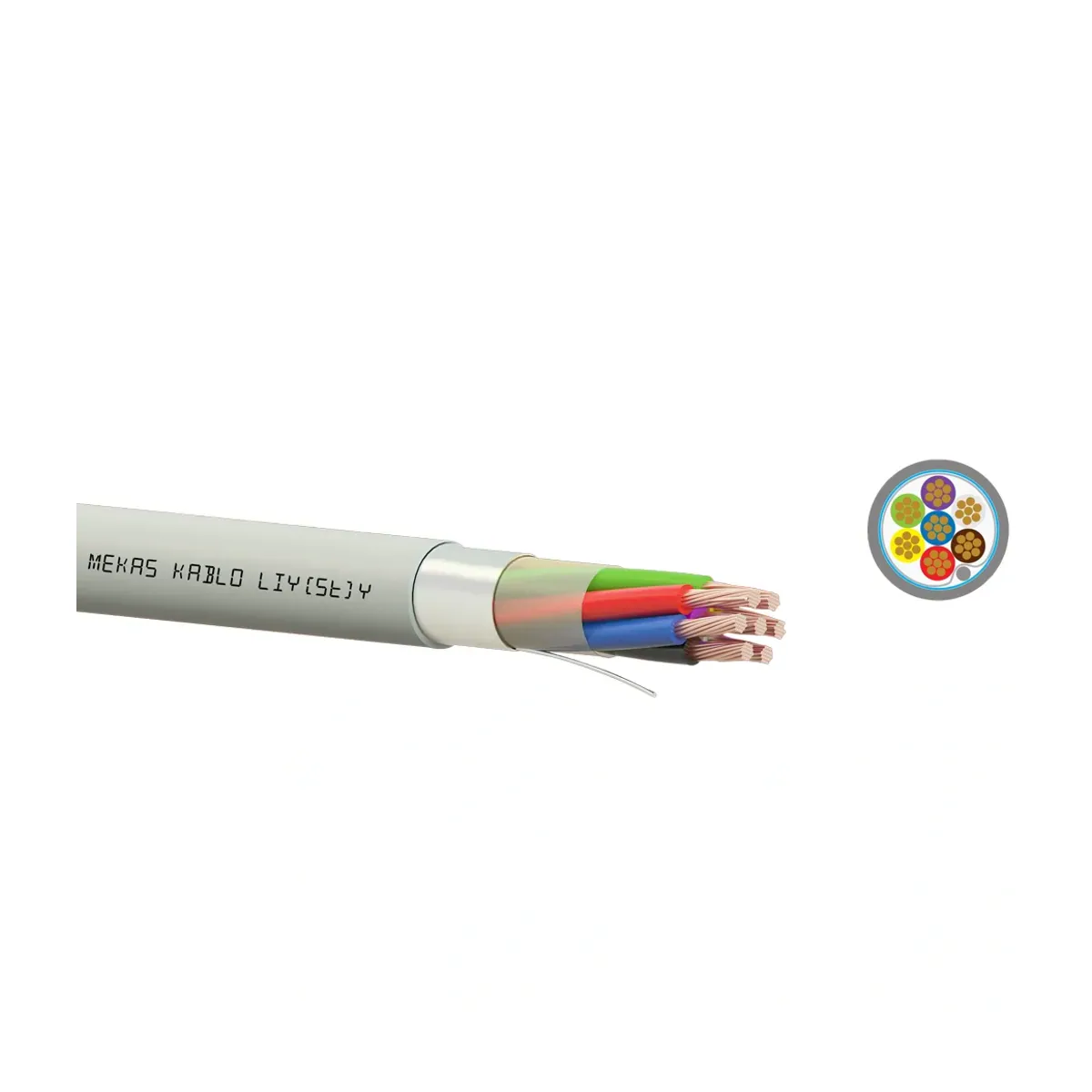

Mekas 8x0.22 mm2 LIY(St)Y Shielded Signal Cable
- Brand: Mekas Kablo
- SKU: 73708
- MPN: 73708
- Price: 1414.15 TRY + VAT · incl. VAT 1696.98 TRY
- Availability: Made to order
- LIY(St)Y Signal Cables
- Mekas Kablo LIY(St)Y Signal Cables
- Selection guide: LIY(St)Y Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 8x0.22 mm2 LIY(St)Y Shielded Signal Cable. Technical data: Cable Type LIY(St)Y. The product is sold per meter; the minimum order is 50 meters. Stock code: 73708.
| Cable Type | LIY(St)Y |
|---|---|
| Conductor | Bükülgen çıplak bakır teller, EN 60228 Class 5; 0,22 mm²: 7x0,19 mm Cu |
| Insulation Material | PVC compound, EN 50290-2-21/TI51 |
| Core Colour Code | Color-coded cores acc. to DIN 47100 |
| Separator Tape | Polyester tape |
| Outer Sheath Material | PVC compound, EN 50290-2-22/TM51 |
| Outer Sheath Colour | RAL 7035, Grey |
| Standards | VDE 0812 & TS 13755 |
| Operating Temperature | Fixed: -30 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Capacitance | Max. 150 nF/km (mutual capacitance) |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2 |
| Operating Voltage | 250 V (< 0,50 mm²); tepe voltajı: 500 V (≥ 0,22 mm²) |
| Insulation Resistance | Min. 200 MΩ·km (< 0,50 mm²) |
| Test Voltage | 1200 V (AC 50 Hz; < 0,50 mm²) |
| Outer Diameter | 5,50 mm (±%5) |
| Cable Shield | Kalaylı bakır toprak teliyle birlikte aluminyum polyester bant |
