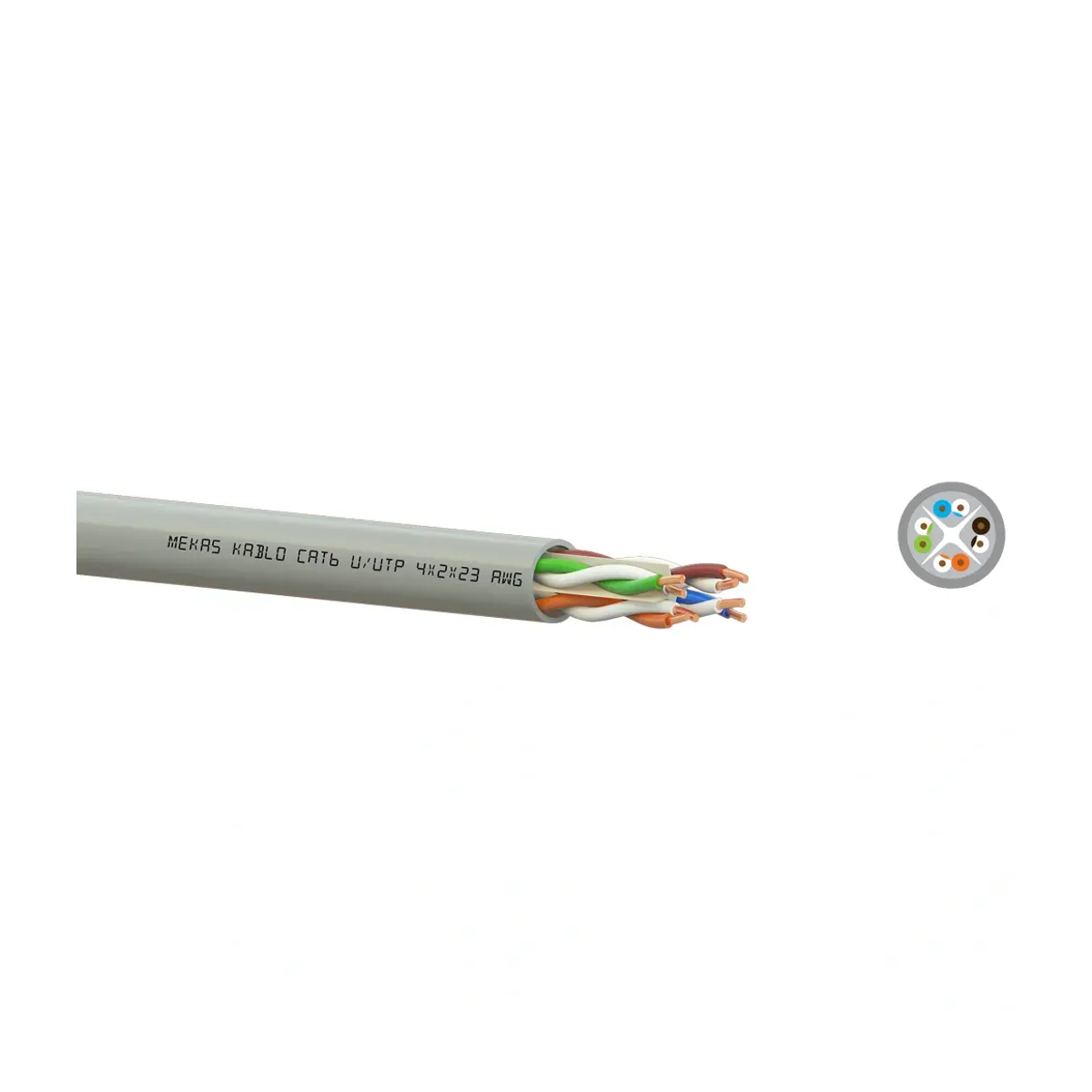

Mekas CAT6 SF/UTP PE Ethernet LAN Data Cable 4x2x23 AWG
- Brand: Mekas Kablo
- SKU: 11477
- MPN: 11477
- Price: 2044.95 TRY + VAT · incl. VAT 2453.94 TRY
- Availability: Made to order
- CAT6 Cables
- Mekas Kablo CAT6 Cables
- Selection guide: CAT6 Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas CAT6 SF/UTP Ethernet LAN Data Cable 4x2x23 AWG. CAT6 Cables are used for 1 Gbps connections in offices, enclosures and industrial network backbones. Technical data: Cable Length Type Reel Type (Not Ready-Made), Core Cross-Section 4x2x23 AWG, Cable Type SF/UTP. The product is sold per meter; the minimum order is 50 meters. Stock code: 11477.
| Cable Length Type | Makara Tipi (Hazır Olmayan) |
|---|---|
| Core Cross-Section | 4x2x23 AWG |
| Cable Type | SF/UTP |
| Conductor | Mono Tavlı Bakır Tel, 23 AWG |
| Insulation Material | HDPE |
| Core Colour Code | TIA 568 renk kodlamasına uygun |
| Stranding | 4 ikili bükülü çiftin çapraz ayırıcı ile birlikte bükümü |
| Outer Sheath Material | PE |
| Outer Sheath Colour | Black |
| Test Voltage | 1000 V |
| Minimum Bending Radius | 8 x D |
| Insulation Resistance | >5000 MΩ / km |
| Capacitance | Max. 52 pF/m (efektif kapasitans) |
| Operating Temperature | -20 °C … +60 °C |
| Velocity of Propagation | %68 |
| Standards | IEC 61156-5 (baz alınmıştır) |
| Cable Shield | Kalaylı Bakır Tellerden Örgü + Al-Pet Folyo |
