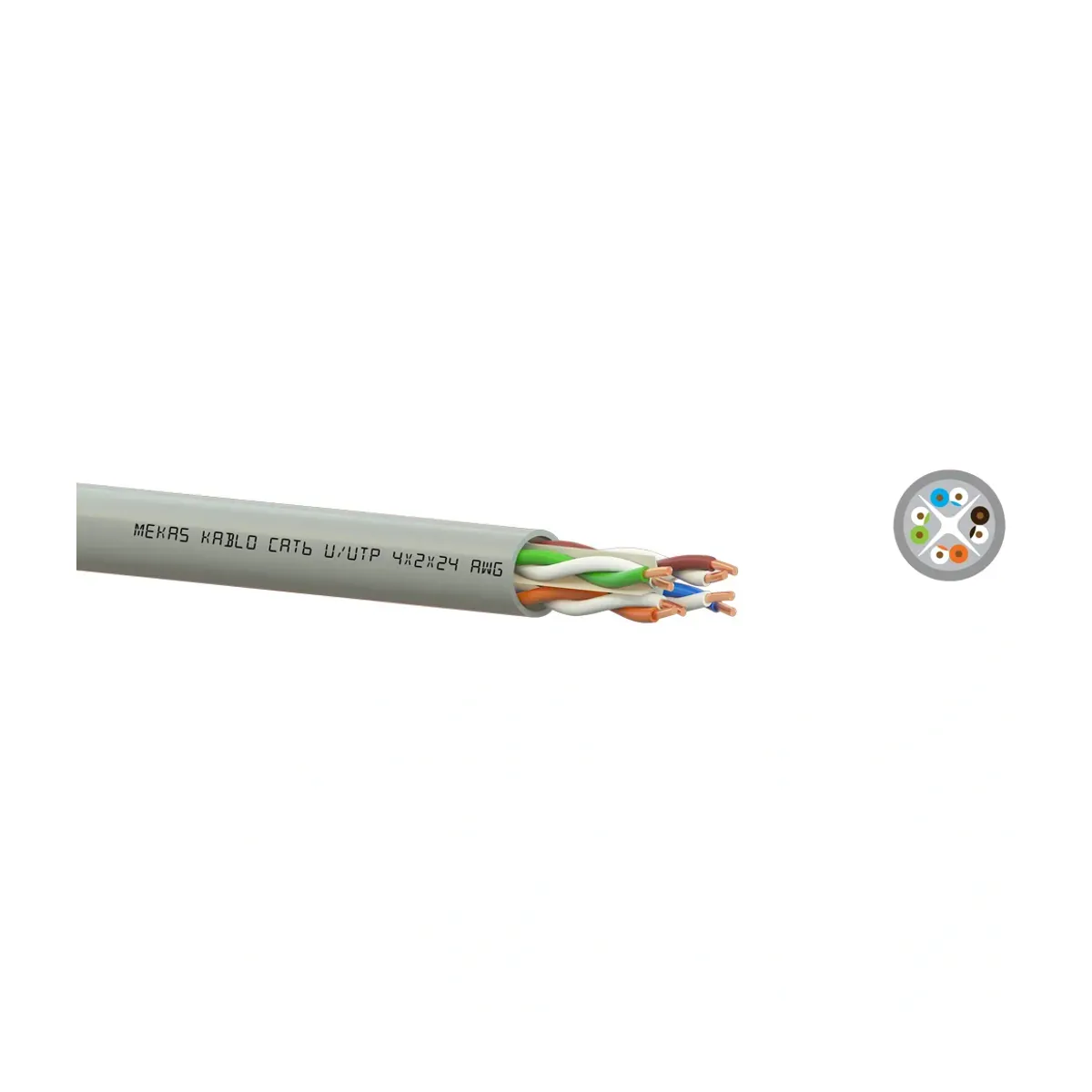

Mekas CAT6 U/UTP Halogen Free Ethernet LAN Data Cable 4x2x24 AWG
- Brand: Mekas Kablo
- SKU: 11464
- MPN: 11464
- Price: 1082.45 TRY + VAT · incl. VAT 1298.94 TRY
- Availability: In stock
- CAT6 Cables
- Mekas Kablo CAT6 Cables
- Selection guide: CAT6 Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas CAT6 UTP Ethernet LAN Data Cable 4x2x24 AWG. CAT6 Cables are used for 1 Gbps connections in offices, enclosures and industrial network backbones. Technical data: Cable Length Type Reel Type (Not Ready-Made), Core Cross-Section 4x2x24 AWG, Cable Type U/UTP. The product is sold per meter; the minimum order is 50 meters. Stock code: 11464.
| Cable Length Type | Makara Tipi (Hazır Olmayan) |
|---|---|
| Core Cross-Section | 4x2x24 AWG |
| Cable Type | U/UTP |
| Conductor | Mono Tavlı Bakır Tel, 24 AWG |
| Insulation Material | HDPE |
| Core Colour Code | TIA 568 izole renk kodlamasına uygun |
| Stranding | 4 ikili bükülü çiftin çapraz ayırıcı ile birlikte bükümü |
| Outer Sheath Material | LSZH |
| Outer Sheath Colour | Yellow |
| Conductor Resistance | 95 Ω/km |
| Test Voltage | 1000 V |
| Minimum Bending Radius | 8 x D |
| Insulation Resistance | >5000 MΩ / km |
| Capacitance | Max. 52 pF/m |
| Operating Temperature | -20 °C … +60 °C |
| Velocity of Propagation | 68% |
| Standards | IEC 61156-5 |
| Flame Retardance / Fire Performance | EN 60332-1-2; EN 60754-1/2; EN 61034-2 |
