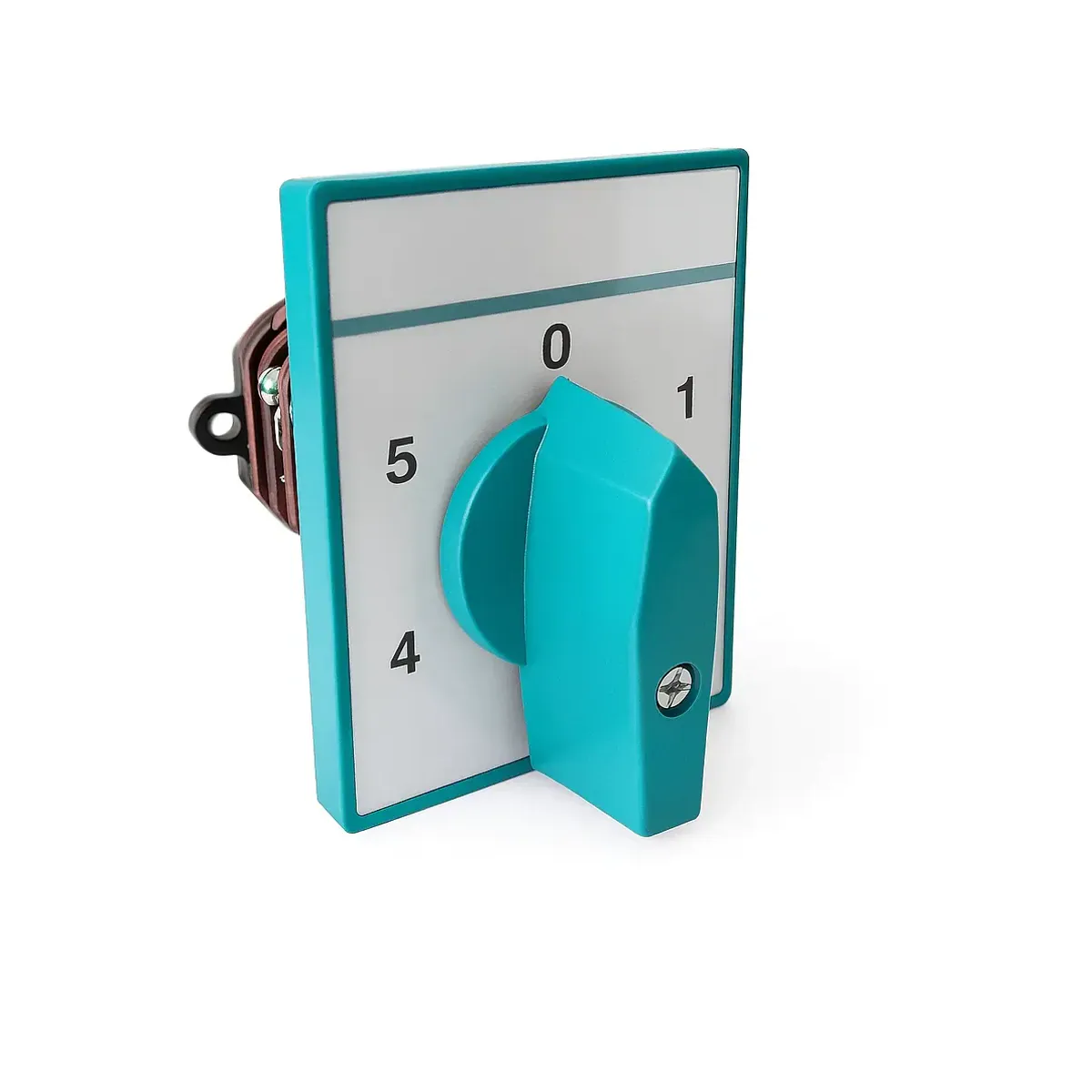

Metop 100A Single-Phase 5-Step Mains Switch.
- Brand: Metop
- SKU: MT036 - 100A
- Price: 2985.36 TRY + VAT · incl. VAT 3582.43 TRY
- Availability: Made to order
- Mains Step Switches
- Selection guide: Mains Step Switches Selection Guide: Technical Criteria and Engineering Practice
Metop 100A Single-Phase 5-Step Mains Switch. Mains Step Switches are used for transformer tap, heater, fan speed and welding machine selections. Technical values: Current 100A, Phase Type 1-Phase, Cam Switch Step Count 5, With Mains. Stock code: MT036 - 100A.
| Current | 100 A |
|---|---|
| Number of Poles | 1P |
| Cam Switch Position Count | 5 Kademe Şebekeli |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 0-1-2-3-4-5 |
| Housing Size | M3 |
| Length (L) | 113.4 mm |
| Front Plate Size (A x B) | 85 x 104 mm |
| Housing Diameter | Ø80.8 mm |
