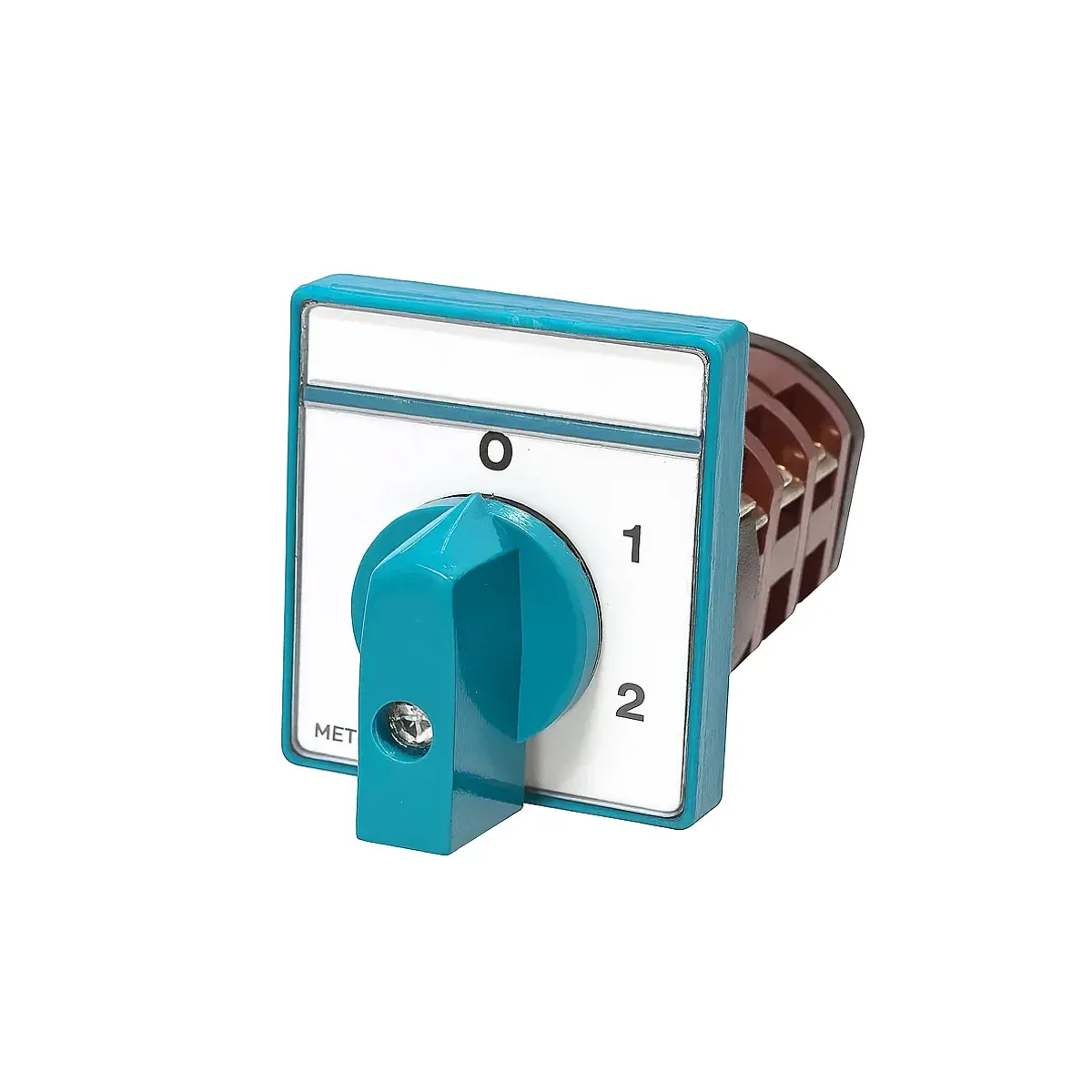

Metop 10A Single-Phase 3-Step Selector Switch
- Brand: Metop
- SKU: MT033 - 10A
- Price: 332.08 TRY + VAT · incl. VAT 398.50 TRY
- Availability: In stock
- Selector Step Switches
- Selection guide: Selector Step Switches Selection Guide: Technical Criteria and Engineering Practice
Metop 10A Single-Phase 3-Step Selector Switch. Selector Step Switches are used for transformer tap, heater, fan speed and welding machine selections. Technical values: Current 10A, Phase Type 1-Phase, Cam Switch Step Count 3, Selector. Stock code: MT033 - 10A.
| Current | 10 A |
|---|---|
| Number of Poles | 1P |
| Cam Switch Position Count | 3 Kademe Seçici |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 0-1-2-3 |
| Housing Size | M1 |
| Length (L) | 58.9 mm |
| Front Plate Size (A x B) | 44.5 x 56.7 mm |
| Housing Diameter | Ø40 mm |
| Nominal Thermal Current (Ith) | 16 A |
| AC-3 / AC-23 Power (Single-Phase Motors) | 110 V~: 0.8 kW; 220 V~: 1.7 kW; 380 V~: 2.8 kW (30 on-off/h) |
| Terminal Bolt Size | M3 |
| Conductor Cross-Section | 1/1.5 mm² (AWG 18) |
| Nominal Breaking Capacity (10 Ie x 1.1 Ue) | 110 V~: 13000 VA; 220 V~: 15000 VA; 380 V~: 14000 VA; 660 V~: 17000 VA |
| Fuse Current | 32 A (Ieff 10 kA); 32 A (Ieff 40 kA) |
