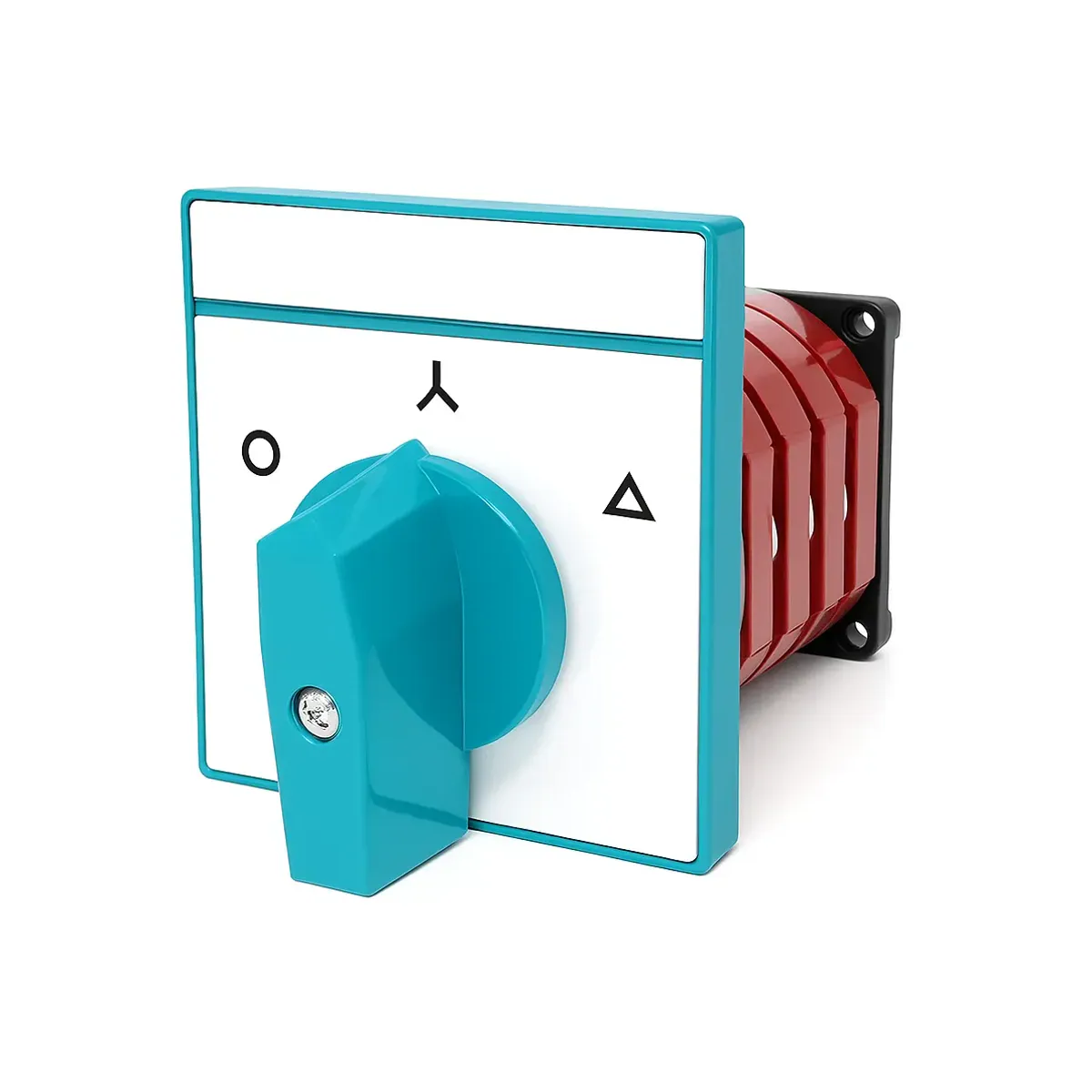

Metop 63A Star-Delta Motor Switch
- Brand: Metop
- SKU: MT031 - 63A
- Price: 2104.48 TRY + VAT · incl. VAT 2525.38 TRY
- Availability: Made to order
- Star-Delta Switches
- Metop Star-Delta Switches
- Selection guide: What Is Star-Delta Connection? Switch Selection Guide
Metop 63A Star-Delta Motor Switch. Star-Delta Switches are used for local selection in machines, panel doors, welding equipment and motor starting. Technical values: Current 63A. Stock code: MT031 - 63A.
| Current | 63 A |
|---|---|
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Housing Size | M3 |
| Length (L) | 113.4 mm |
| Front Plate Size (A x B) | 85 x 104 mm |
| Housing Diameter | Ø80.8 mm |
| Nominal Thermal Current (Ith) | 75 A |
| AC-1 / AC-21 Power (Resistive Circuits) | 3x220 V~: 14 kW; 3x380 V~: 24 kW; 3x500 V~: 33 kW; 3x660 V~: 43 kW (30 on-off/h) |
| AC-3 / AC-23 Power (Three-Phase Motors) | 3x220 V~: 12.5 kW; 3x380 V~: 21 kW; 3x500 V~: 27 kW; 3x660 V~: 27 kW (30 on-off/h) |
| AC-3 / AC-23 Power (Single-Phase Motors) | 110 V~: 5.3 kW; 220 V~: 10 kW; 380 V~: 17 kW (30 on-off/h) |
| Terminal Bolt Size | M6 |
| Conductor Cross-Section | 10/16 mm² (AWG 10) |
| Nominal Breaking Capacity (10 Ie x 1.1 Ue) | 110 V~: 76000 VA; 220 V~: 130000 VA; 380 V~: 180000 VA; 660 V~: 72000 VA |
| Fuse Current | 100 A (Ieff 10 kA); 100 A (Ieff 40 kA) |
