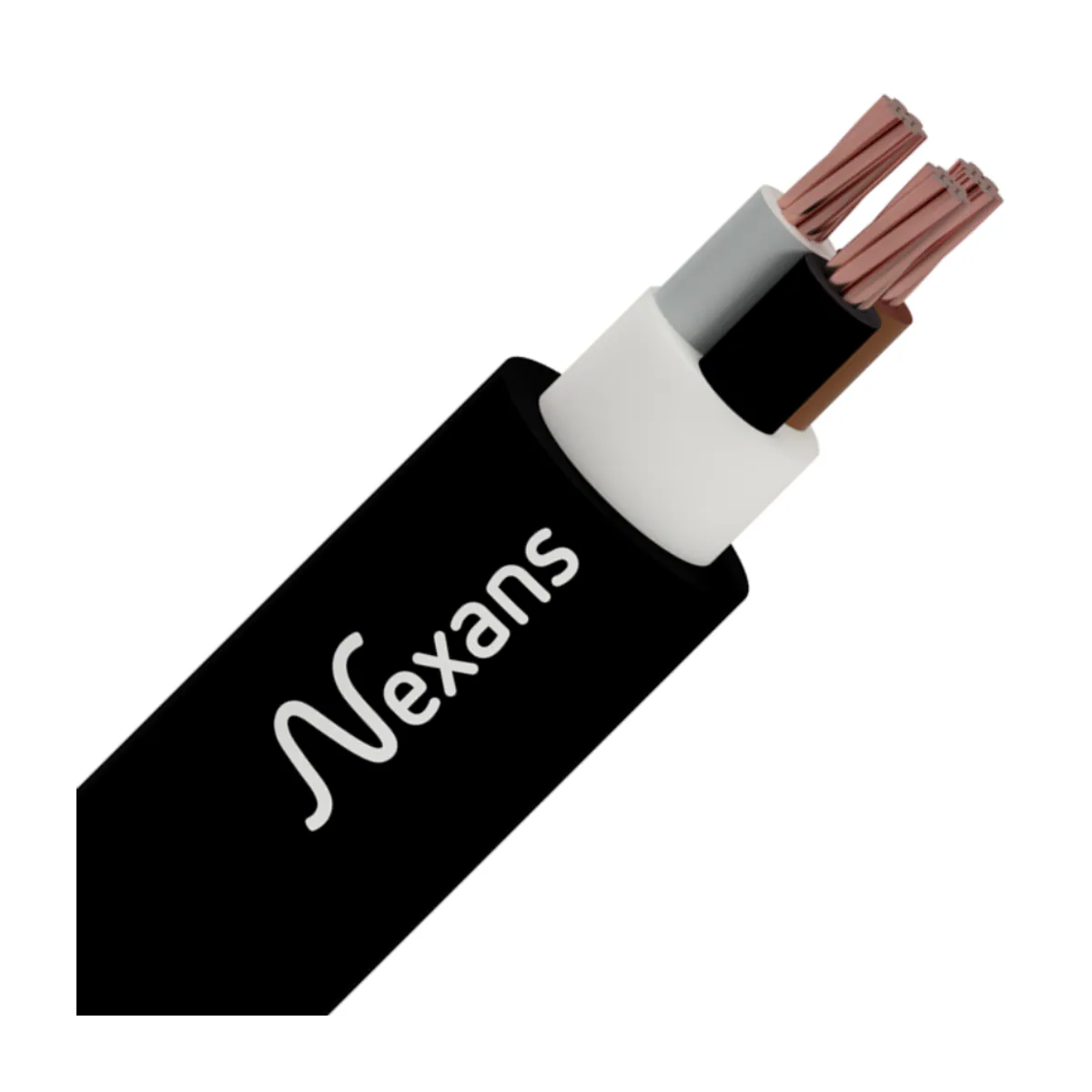

Nexans N2XH 3x10 mm2 Halogen Free Cable
- Brand: Nexans Kablo
- SKU: NEXWB0520
- Price: 27767.50 TRY + VAT · incl. VAT 33321.00 TRY
- Availability: In stock
- N2XH Cables
- Nexans Kablo N2XH Cables
- Selection guide: N2XH Halogen-Free Power Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Nexans N2XH 3x10 mm2 Halogen-Free Cable is a product in the N2XH power cable product family of the Nexans Kablo brand. Key technical features: Core cross-section: 3x10 mm2.
| Core Cross-Section | 3x10 mm² |
|---|---|
| Conductor | Bakır; tavlanmış örgülü yuvarlak bakır (Class 2) |
| Insulation Material | XLPE |
| Filler | LSZH |
| Outer Sheath Material | LSZH |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | -20 °C … +90 °C |
| Short-Circuit Temperature | Max. 250 °C |
| Minimum Bending Radius | 8 x D |
| Standards | TS EN IEC 60228; TS EN IEC 60502-1 |
| Flame Retardance / Fire Performance | Alev dayanımı: TS EN IEC 60332-3-24 (CAT C); Halojensiz: TS EN IEC 60754-1/2; Duman yoğunluğu: TS EN IEC 61034-1/2 |
