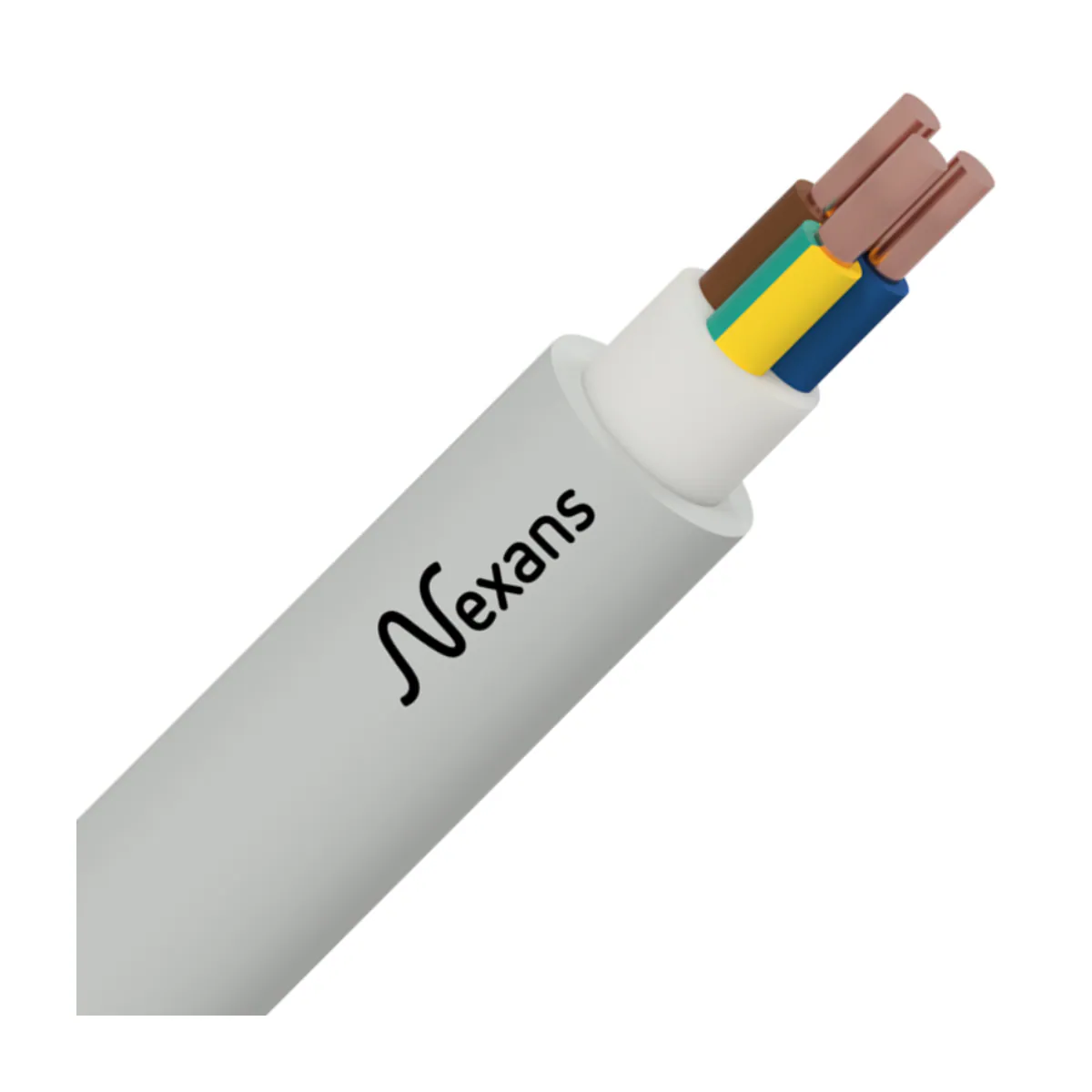

Nexans NYM 5x16 mm2 Antigron NVV Cable
- Brand: Nexans Kablo
- SKU: NEXWB0498
- Price: 68624.30 TRY + VAT · incl. VAT 82349.16 TRY
- Availability: In stock
- NYM Antigron Cables
- Nexans Kablo NYM Antigron Cables
- Selection guide: NYM Antigron Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Nexans NYM 5x16 mm2 Antigron NVV Cable is a product in the NYM Antigron cable product family of the Nexans Kablo brand. Key technical features: Core cross-section: 5x16 mm2.
| Core Cross-Section | 5x16 mm² |
|---|---|
| Conductor | Copper |
| Insulation Material | PVC |
| Filler | PVC |
| Outer Sheath Material | PVC |
| Rated Voltage | 300/500 V |
| Operating Temperature | -20 °C … +70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Minimum Bending Radius | 8 x D |
| Standards | TS EN IEC 60228; TS HD 21.4 |
| Flame Retardance / Fire Performance | CPR sınıfı: Eca (TS EN 50575); Alev dayanımı: TS EN IEC 60332-1-2 |
| Outer Diameter | Yaklaşık 23,8 mm |
| Conductor Resistance (20 °C) | Max. 1,15 Ω/km (DC) |
| Current Carrying Capacity | Havada (30 °C, tek kablo, yatay): 76 A |
