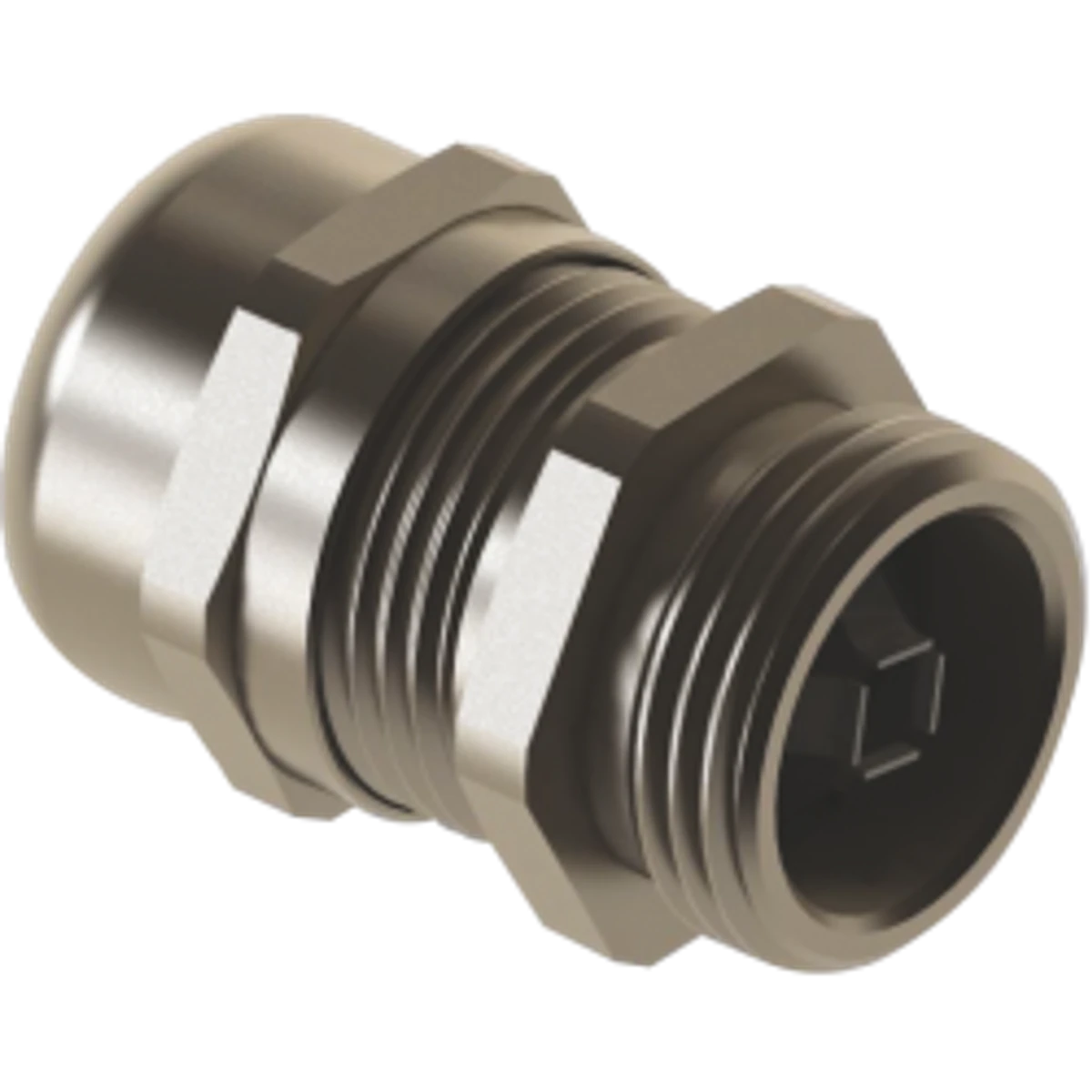

Ortaç PG 9 EMC Type Earthed Nickel-Plated Brass Cable Gland (50 pcs/box)
- Brand: Ortaç
- SKU: OPBT02
- MPN: OPBT02
- Price: 115.00 TRY + VAT · incl. VAT 138.00 TRY
- Availability: Made to order
- EMC Type Grounded Nickel-Plated Brass Glands
- Selection guide: EMC Type Grounded Nickel-Plated Brass Glands Selection Guide: Technical Criteria & Application Standards
Ortaç PG 9 EMC Type Earthed Nickel-Plated Brass Cable Gland (50 pcs/box). EMC Type Grounded Nickel-Plated Brass Glands are used for sealing and strain relief on panel walls, machine housings and installation routes. The product is sold in packs of 50. Stock code: OPBT02.
| Mounting Diameter | 16 mm |
|---|---|
| Thread Length | 6 mm |
| Clamping Diameter | 4–8 mm |
| Thread Size | PG 9 |
| Wrench Size | 17 mm |
| Cover Material | Nikel Kaplı Pirinç |
| Clamping Insert Material | Polyamid PA6 V2 |
| Seal Material | TPV |
| EMC Spring Material | AISI301 |
| Housing Material | Nikel Kaplı Pirinç |
| O-ring Material | NBR |
| Connection Thread | PG (DIN 40430) |
| IP Rating | IP68 - 5 bar |
| Temperature Range | -20 °C +100 °C / -40 °C +150 °C |
