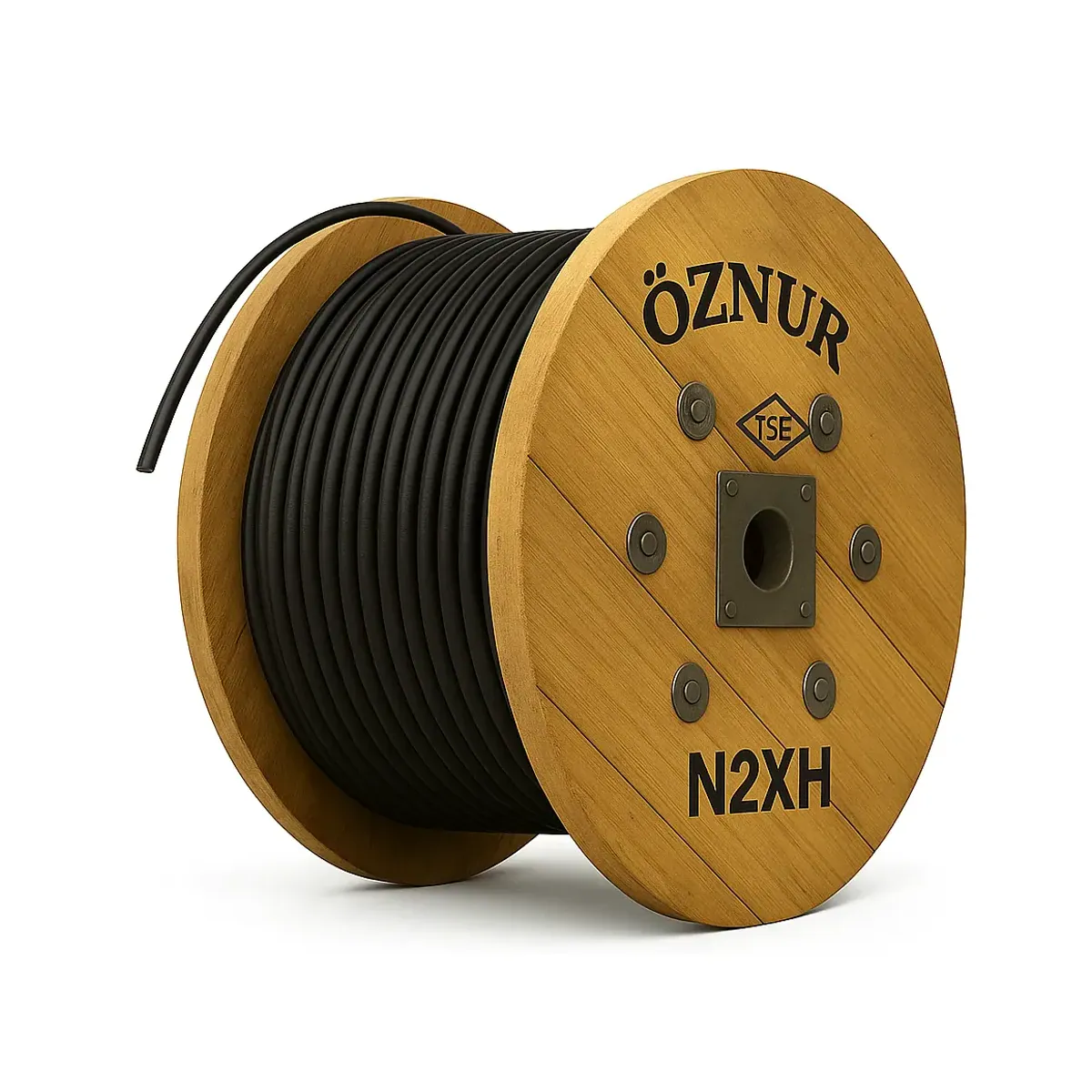

Öznur N2XH 5x16 mm2 Halogen Free Cable
- Brand: Öznur Kablo
- SKU: NP-1374
- Price: 36478.00 TRY + VAT · incl. VAT 43773.60 TRY
- Availability: In stock
- N2XH Cables
- Öznur Kablo N2XH Cables
- Selection guide: N2XH Halogen-Free Power Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur N2XH 5x16 mm2 Halogen Free Cable. N2XH cables are halogen-free, flame-retardant low-voltage power cables. Technical data: Core Cross-Section 5x16mm2. The product is sold per meter; the minimum order is 50 meters. Stock code: NP-1374.
| Core Cross-Section | 5x16 mm² |
|---|---|
| Conductor | Bükülü bakır iletken (rm) |
| Insulation Material | XLPE |
| Filler | HFFR |
| Outer Sheath Material | HFFR |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | Max. 90 °C |
| Short-Circuit Temperature | Max. 250 °C |
| Minimum Bending Radius | 12 x D |
| Standards | TS HD 604 S1, VDE 0276 |
| Flame Retardance / Fire Performance | Halojensiz, alev iletmeyen |
| Core Colour Code | Mavi-Kahverengi-Black-Grey-Sarı/Yeşil |
| Outer Diameter | Yaklaşık 22.0 mm |
| Conductor Resistance (20 °C) | Max. 1,15 Ω/km (DC) |
| Current Carrying Capacity | Havada: 98 A |
