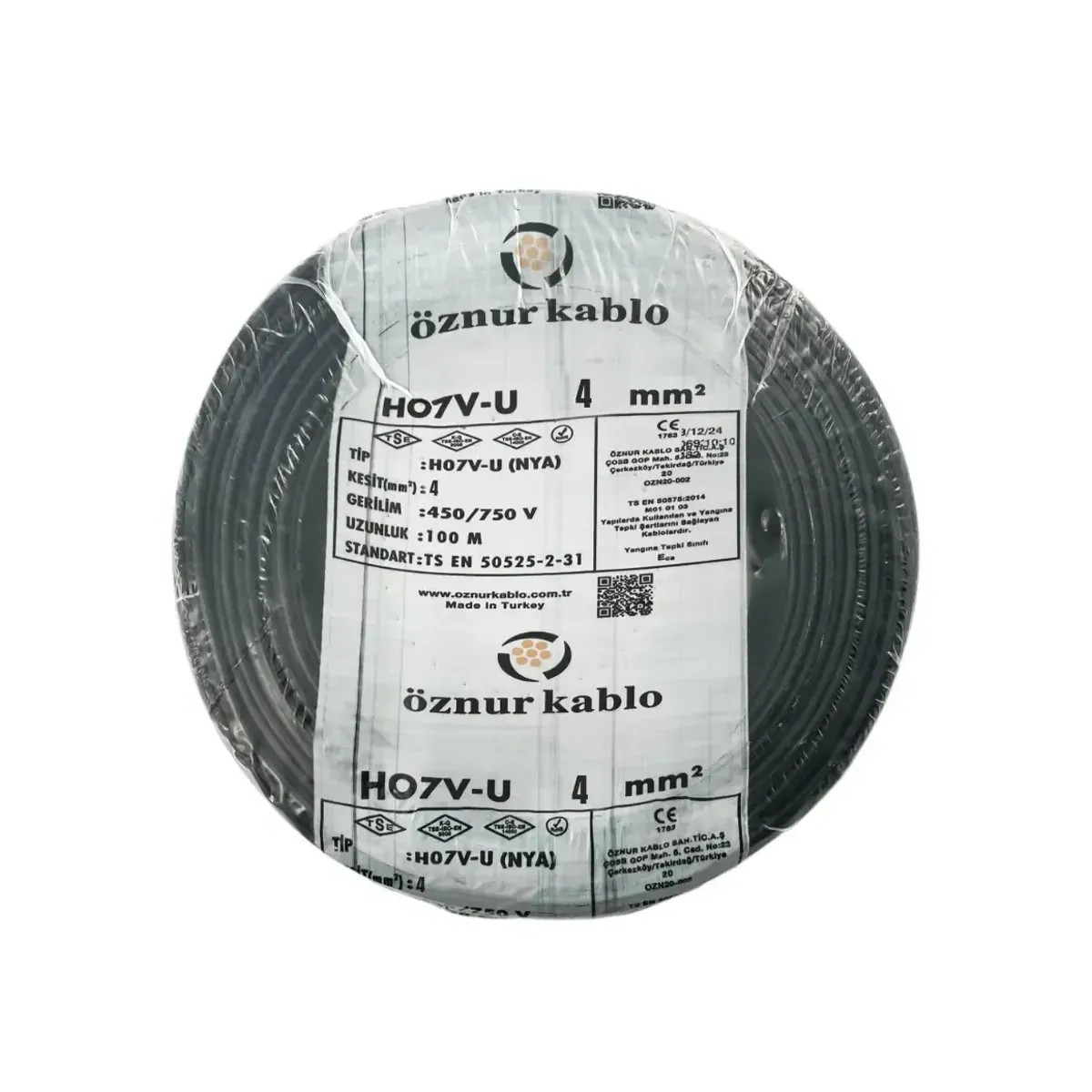

Öznur NYA 1x4 mm2 H07V-U Black Cable
- Brand: Öznur Kablo
- SKU: NP-1020
- Model: Siyah
- Price: 3061.30 TRY + VAT · incl. VAT 3673.56 TRY
- Availability: In stock
- NYA Cables
- Öznur Kablo NYA Cables
- Selection guide: NYA Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NYA 1x4 mm2 H07V-U Black Cable. NYA cables are used in building, panel, underground and fixed-installation power lines. Technical data: Core Cross-Section 1x4mm2, Color Black. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1020.
| Core Cross-Section | 1x4 mm² |
|---|---|
| Color | Black |
| Conductor | Bakır iletken; tek telli (re) |
| Insulation Material | PVC |
| Rated Voltage | 450/750 V |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C (≤ 300 mm² için) |
| Conductor Resistance (20 °C) | Max. 4,61 Ω/km (DC) |
| Standards | TS EN 50525-2-31, VDE 0281, BS 6004, IEC 60227 |
| Flame Retardance / Fire Performance | Yangına tepki: Eca (TS EN 50575:2014+A1:2016) |
| Outer Diameter | 3,8 mm (yaklaşık) |
| Current Carrying Capacity | Boruda: 26 A; Havada: 42 A |
