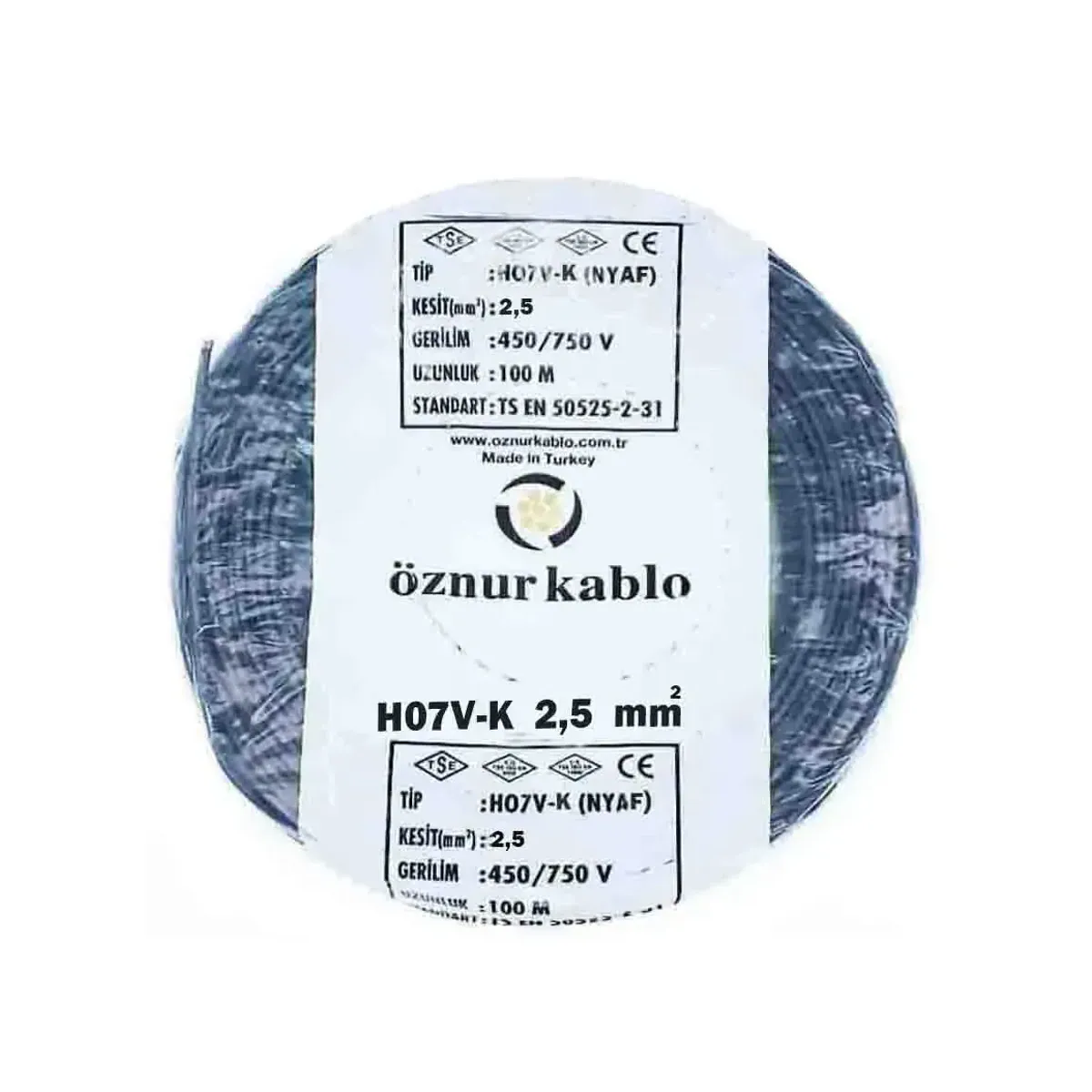

Öznur NYAF 1x2.5 mm2 H07V-K Black Cable
- Brand: Öznur Kablo
- SKU: NP-1152
- Model: Siyah
- Price: 2077.40 TRY + VAT · incl. VAT 2492.88 TRY
- Availability: In stock
- NYAF Cables
- Öznur Kablo NYAF Cables
- Selection guide: NYAF Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NYAF 1x2.5 mm2 H07V-K Black Cable. NYAF cables are single-core PVC-insulated cables with stranded flexible copper conductors; they are also known as H07V-K. Technical data: Core Cross-Section 1x2.5mm2, Color Black. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1152.
| Core Cross-Section | 1x2,5 mm² |
|---|---|
| Color | Black |
| Conductor | Fleksibel bakır iletken |
| Insulation Material | PVC |
| Rated Voltage | 450/750 V |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Conductor Resistance (20 °C) | Max. 7,98 Ω/km (DC) |
| Standards | TS EN 50525-2-31, VDE 0281, BS 6004, IEC 60227 |
| Flame Retardance / Fire Performance | Yangına tepki: Eca (TS EN 50575:2014+A1:2016) |
| Outer Diameter | 3,5 mm (yaklaşık) |
| Current Carrying Capacity | Boruda: 19 A; Havada: 32 A |
