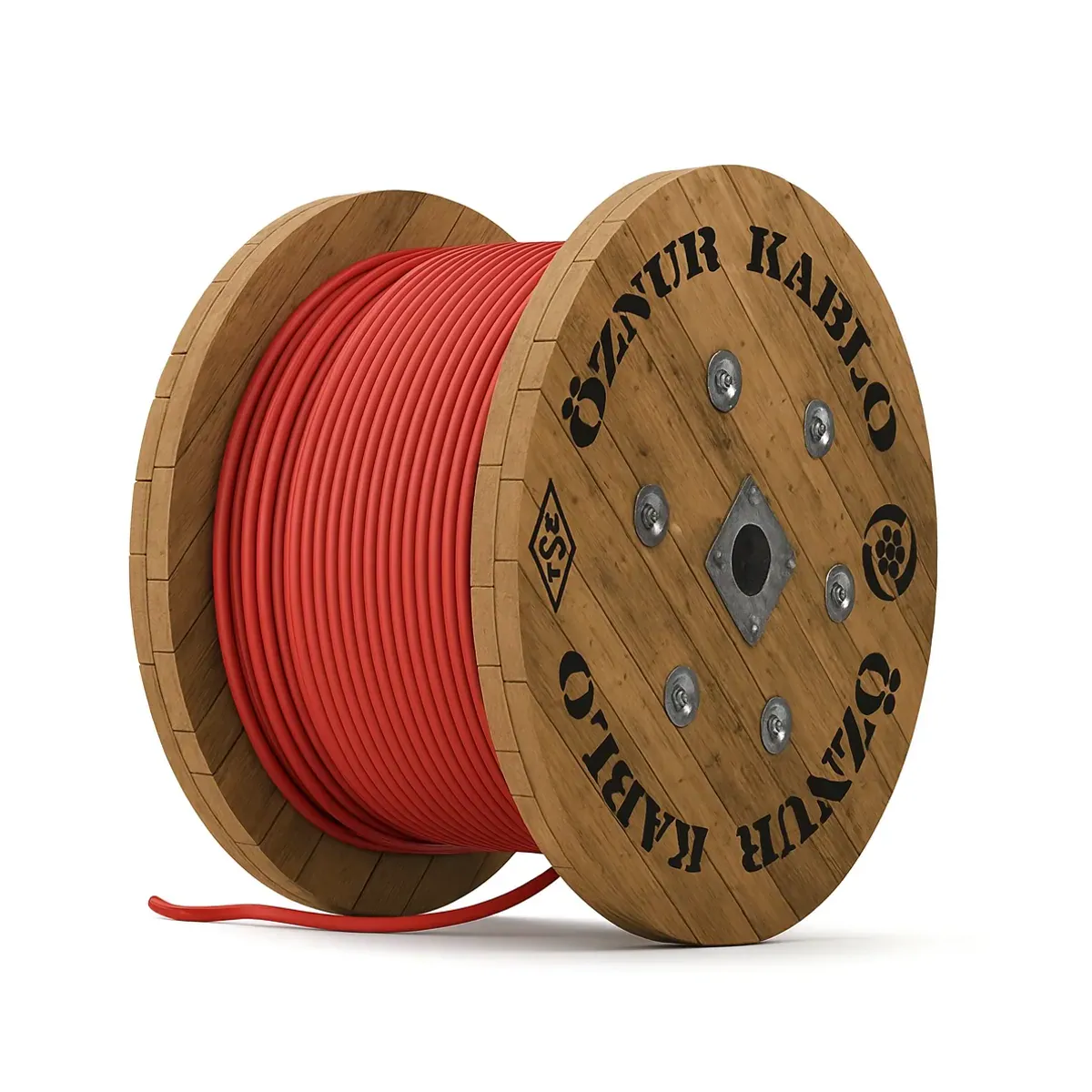

Öznur NYAF 1x25 mm2 H07V-K Red Cable
- Brand: Öznur Kablo
- SKU: NP-1089
- Model: Kırmızı
- Price: 10660.05 TRY + VAT · incl. VAT 12792.06 TRY
- Availability: In stock
- NYAF Cables
- Öznur Kablo NYAF Cables
- Selection guide: NYAF Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NYAF 1x25 mm2 H07V-K Red Cable. NYAF cables are single-core PVC-insulated cables with stranded flexible copper conductors; they are also known as H07V-K. Technical data: Core Cross-Section 1x25mm2, Color Red. The product is sold per meter; the minimum order is 50 meters. Stock code: NP-1089.
| Core Cross-Section | 1x25 mm² |
|---|---|
| Color | Red |
| Conductor | Fleksibel bakır iletken |
| Insulation Material | PVC |
| Rated Voltage | 450/750 V |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Conductor Resistance (20 °C) | Max. 0.780 Ω/km (DC) |
| Standards | TS EN 50525-2-31, VDE 0281, BS 6004, IEC 60227 |
| Flame Retardance / Fire Performance | Yangına tepki: Eca (TS EN 50575:2014+A1:2016) |
| Outer Diameter | 9,5 mm (yaklaşık) |
| Current Carrying Capacity | Boruda: 80 A; Havada: 129 A |
