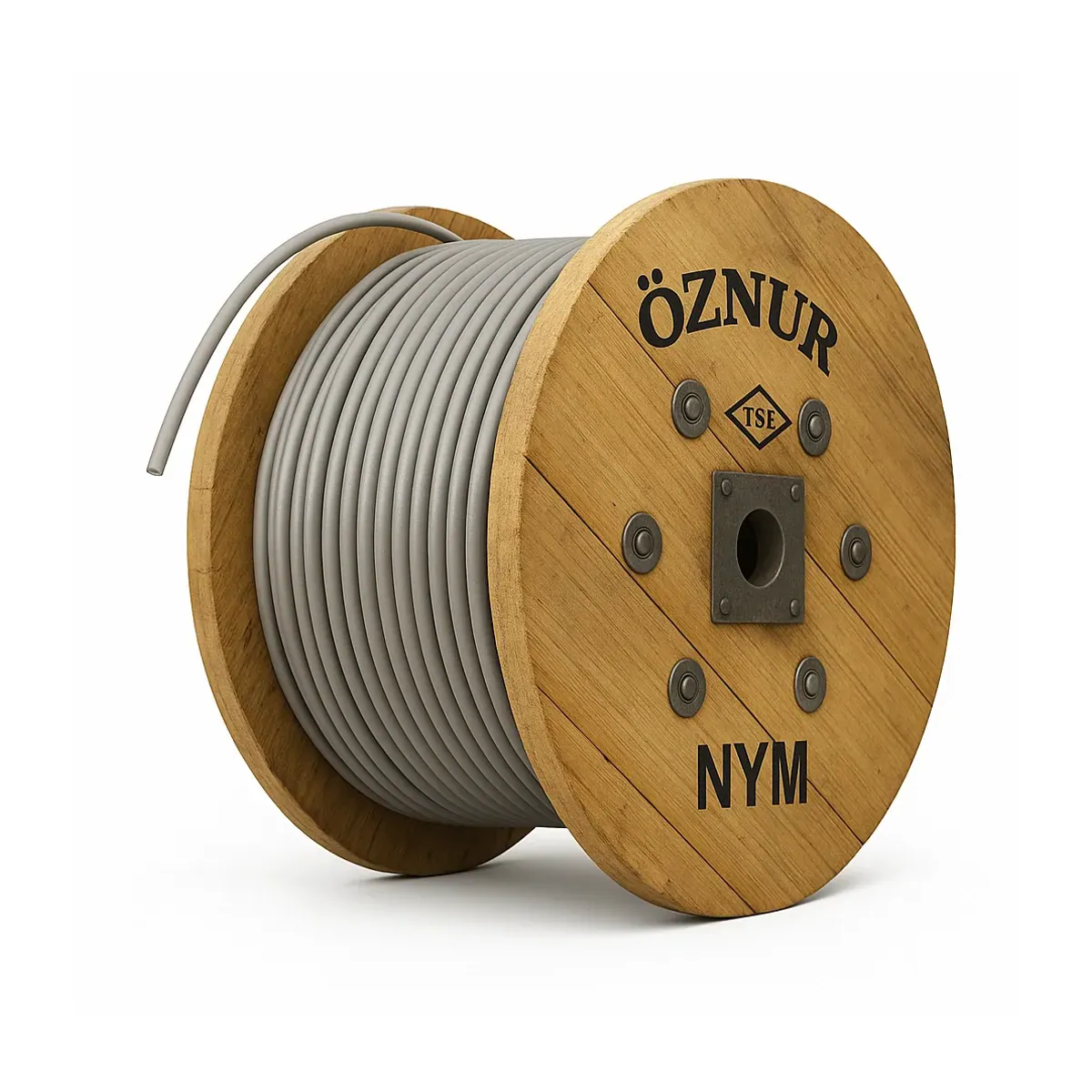

Öznur NYM 2x6 mm2 Antigron NVV Cable
- Brand: Öznur Kablo
- SKU: NP-1280
- Price: 10718.00 TRY + VAT · incl. VAT 12861.60 TRY
- Availability: In stock
- NYM Antigron Cables
- Öznur Kablo NYM Antigron Cables
- Selection guide: NYM Antigron Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NYM 2x6 mm2 Antigron NVV Cable. NYM Antigron cables are PVC-insulated and PVC-sheathed fixed-installation power cables; also known as NVV. Technical data: Core Cross-Section 2x6mm2. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1280.
| Core Cross-Section | 2x6 mm² |
|---|---|
| Conductor | Tek telli bakır iletken (re) |
| Insulation Material | PVC |
| Filler | PVC |
| Outer Sheath Material | PVC |
| Rated Voltage | 300/500 V |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Minimum Bending Radius | 12 x D |
| Standards | TS HD 21.4 S2, VDE 0281, BS 6004, IEC 60227 |
| Core Colour Code | Mavi-Kahverengi |
| Outer Diameter | Yaklaşık 12,0 mm |
| Conductor Resistance (20 °C) | Max. 3,08 Ω/km (DC) |
| Current Carrying Capacity | Havada: 50 A |
