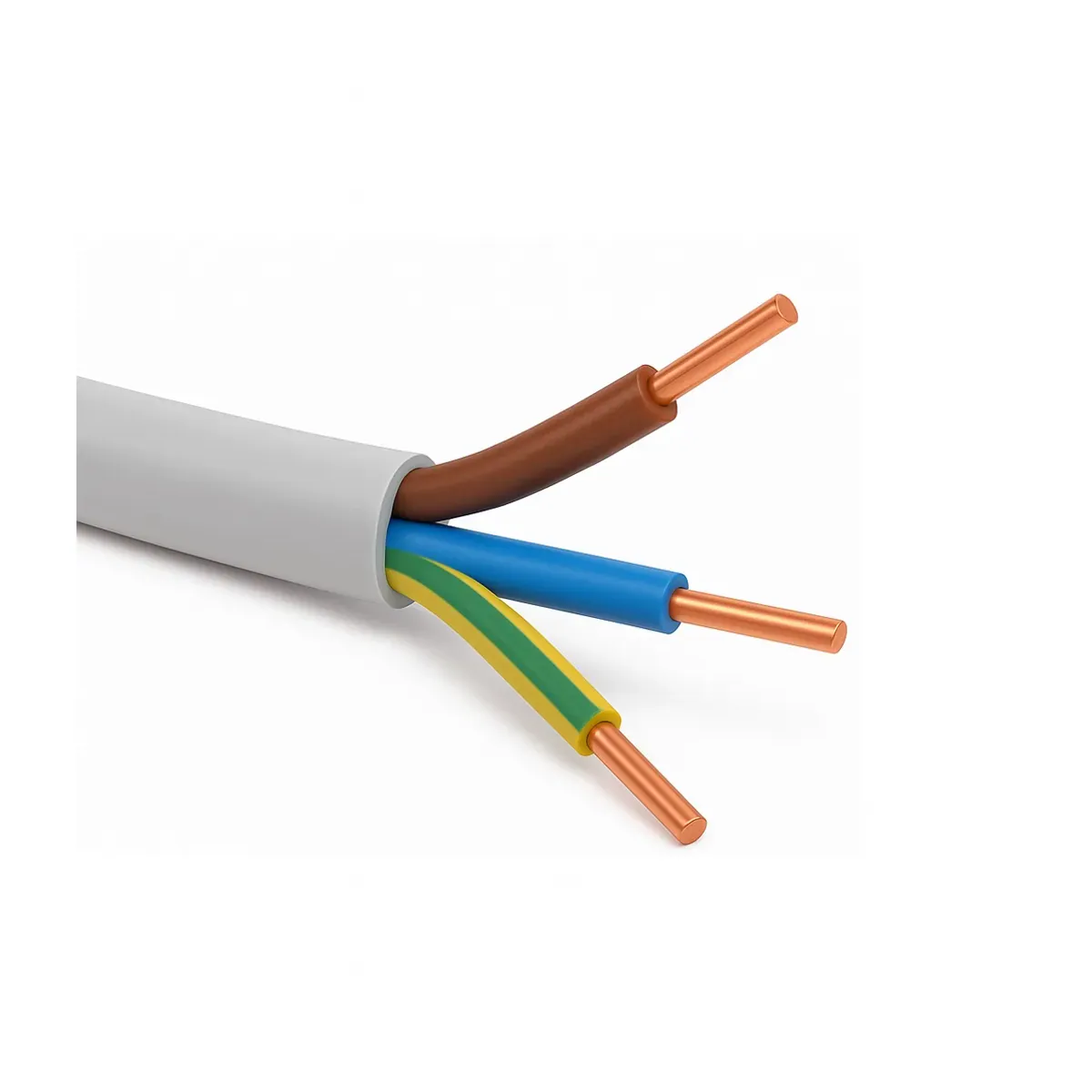

Öznur NYM 3x2.5 mm2 Antigron NVV Cable
- Brand: Öznur Kablo
- SKU: NP-1283
- Price: 6818.10 TRY + VAT · incl. VAT 8181.72 TRY
- Availability: In stock
- NYM Antigron Cables
- Öznur Kablo NYM Antigron Cables
- Selection guide: NYM Antigron Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NYM 3x2.5 mm2 Antigron NVV Cable. NYM Antigron cables are PVC-insulated and PVC-sheathed fixed-installation power cables; also known as NVV. Technical data: Core Cross-Section 3x2.5mm2. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1283.
| Core Cross-Section | 3x2,5 mm² |
|---|---|
| Conductor | Tek telli bakır iletken (re) |
| Insulation Material | PVC |
| Filler | PVC |
| Outer Sheath Material | PVC |
| Rated Voltage | 300/500 V |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Minimum Bending Radius | 12 x D |
| Standards | TS HD 21.4 S2, VDE 0281, BS 6004, IEC 60227 |
| Outer Diameter | Yaklaşık 10,5 mm |
| Conductor Resistance (20 °C) | Max. 7,41 Ω/km (DC) |
| Current Carrying Capacity | Havada: 30 A |
