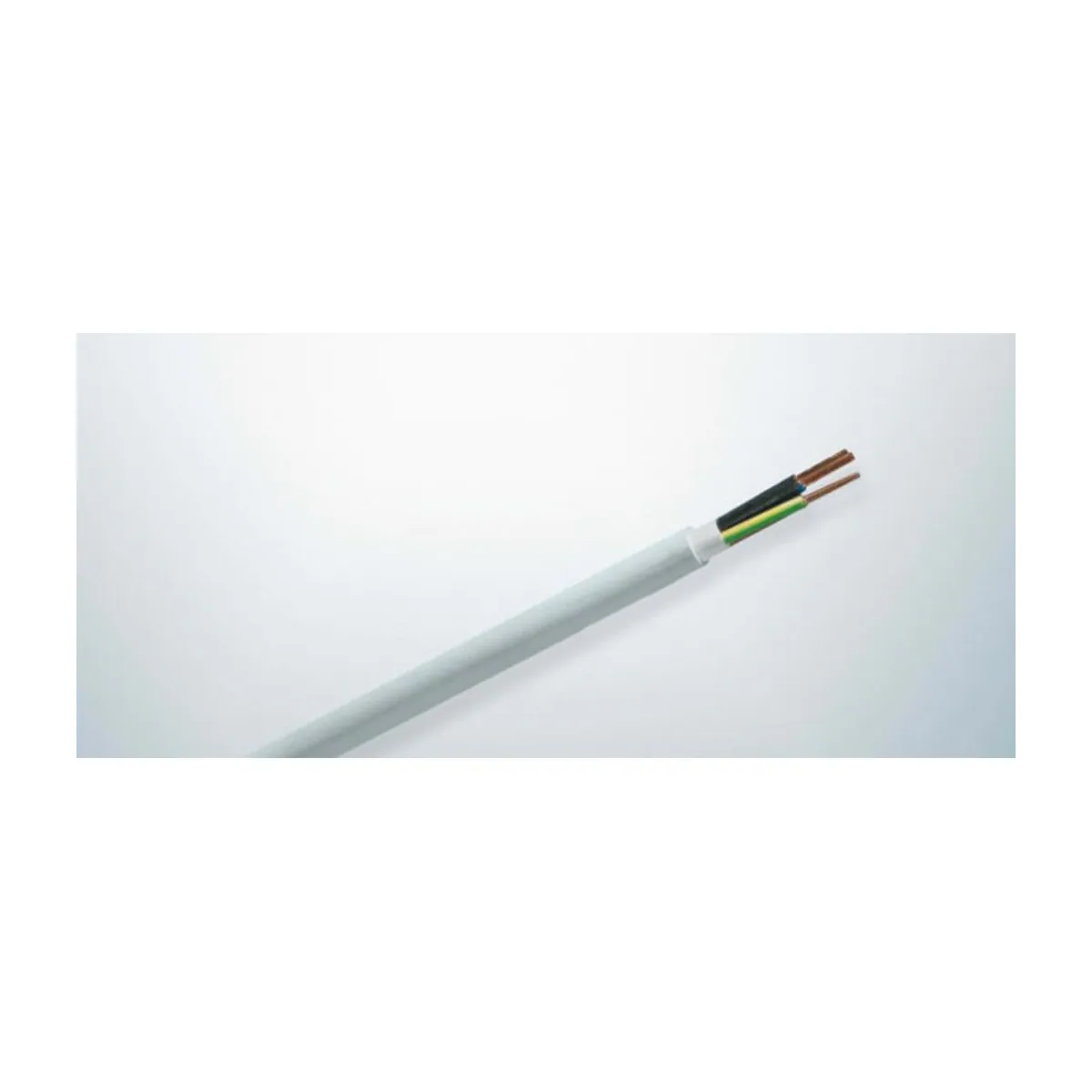

Prysmian NYM 3x16 mm2 Antigron NVV Cable
- Brand: Prysmian Kablo
- SKU: PRYWB0321
- Price: 42284.90 TRY + VAT · incl. VAT 50741.88 TRY
- Availability: In stock
- NYM Antigron Cables
- Prysmian Kablo NYM Antigron Cables
- Selection guide: NYM Antigron Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Prysmian NYM 3x16 mm2 Antigron NVV Cable is a product in the NYM Antigron cable product family of the Prysmian Kablo brand. Key technical features: Core cross-section: 3x16 mm2.
| Core Cross-Section | 3x16 mm² |
|---|---|
| Conductor | Tek veya çok telli bakır iletken |
| Insulation Material | PROTODUR® (PVC) |
| Outer Sheath Material | PROTODUR® (PVC) |
| Outer Sheath Colour | Grey |
| Rated Voltage | 300/500 V |
| Test Voltage | 2 kV (AC) |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Installation Temperature | Min. 0 °C |
| Flame Retardance / Fire Performance | Aleve dayanıklılık: IEC 60332-1-2; CPR sınıfı: Eca (EN 60332-1-2) |
| Outer Diameter | 18,1 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 1,15 Ω/km (DA) |
| Current Carrying Capacity | 94 A (30 °C ortam sıcaklığında) |
