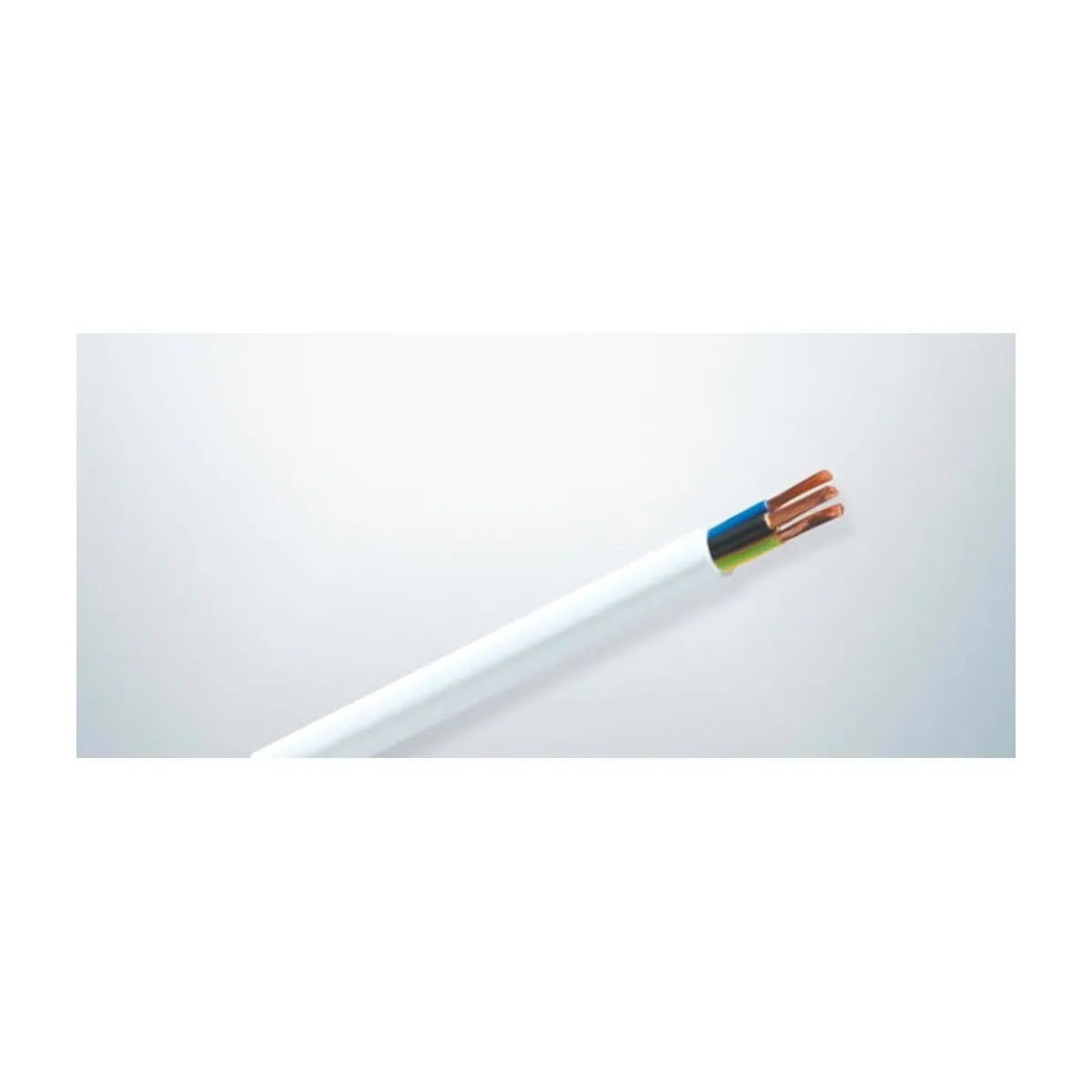

Prysmian TTR 3x2.5 mm2 H05VV-F White Cable
- Brand: Prysmian Kablo
- SKU: PRYWB0237
- Price: 6898.30 TRY + VAT · incl. VAT 8277.96 TRY
- Availability: In stock
- TTR Cables
- Prysmian Kablo TTR Cables
- Selection guide: TTR Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Prysmian TTR 3x2.5 mm2 H05VV-F White Cable is a product in the TTR flexible cable product family of the Prysmian Kablo brand. Key technical features: Cable type: H05VV-F; Core cross-section: 3x2.5 mm2.
| Core Cross-Section | 3x2,5 mm² |
|---|---|
| Color | White |
| Conductor | Fine-stranded copper conductor |
| Insulation Material | PROTODUR® (PVC) |
| Outer Sheath Material | PROTODUR® (PVC) |
| Rated Voltage | 300/500 V |
| Test Voltage | 2 kV (AC) |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Installation Temperature | Min. 0 °C |
| Standards | TS EN 50525-2-11 |
| Flame Retardance / Fire Performance | Aleve dayanıklılık: IEC 60332-1-2; CPR sınıfı: Eca (EN 60332-1-2) |
| Outer Diameter | 9,6 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 7,98 Ω/km (DA) |
| Current Carrying Capacity | 25 A (30 °C ortam sıcaklığında) |
