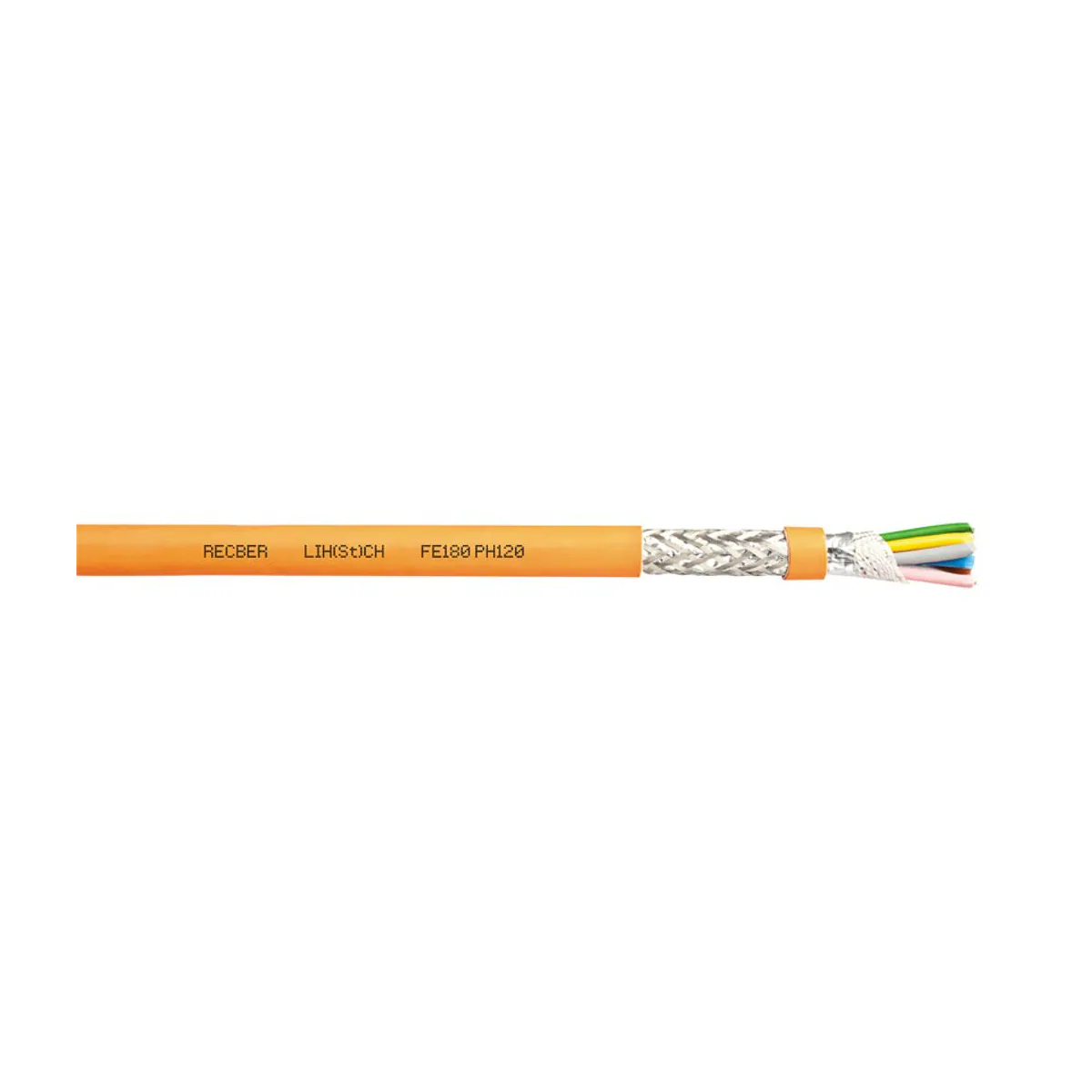

Reçber LIH(St)CH FE180 12x2.5 mm2 Cable
- Brand: Reçber Kablo
- SKU: 104168
- MPN: 104168
- Price: 41242.00 TRY + VAT · incl. VAT 49490.40 TRY
- Availability: In stock
- LIH(St)CH Fire-Resistant Cables
- Selection guide: LIH(St)CH Fire-Resistant Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber LIH(St)CH FE180 12x2.5 mm2 Cable is a product in the Reçber Kablo brand's fire-resistant cable product family. Key technical features: Cable type: LIH(ST)CH; Core cross-section: 12x2.5 mm2.
| Core Cross-Section | 12x2,5 mm² |
|---|---|
| Cable Type | LIH(ST)CH |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | Halojensiz, çapraz bağlı yalıtım, EI8 EN 50363-5 |
| Core Colour Code | Compliant with DIN 47100 core insulation color coding |
| Separator Tape | Pet bant min. %100 kapama; Cam elyaf bant min. %100 kapama |
| Cable Shield | Al-Pet bant min. %100 kapama; Kalaylı bakır tel örgü |
| Outer Sheath Material | HFFR, 70°C EN 50290-2-27, HM2 DIN VDE 0207-24 |
| Outer Sheath Colour | RAL 2003 Turuncu |
| Operating Voltage | Max. 300 V |
| Test Voltage | 2500 V |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Conductor Resistance | Max. 7,98 Ω/km |
| Insulation Resistance | Min. 20 MΩ·km |
| Standards | TSE K 178, DIN VDE 0812 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2; Akım sürekliliği: IEC 60331-21 FE180; Akım sürekliliği: EN 50200 PH120 |
| Outer Diameter | 15.9 mm |
| Copper Weight | 264 kg/km |
