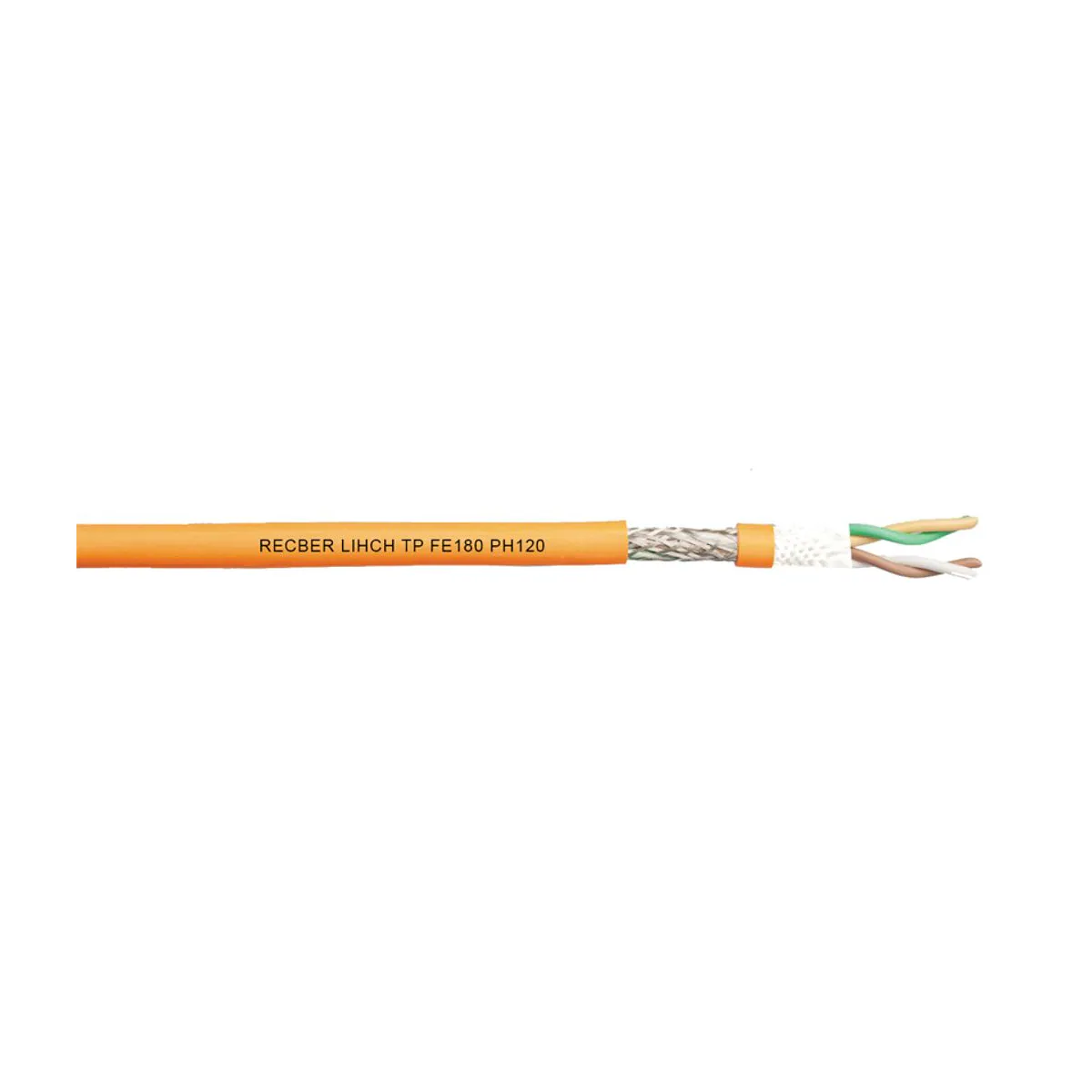

Reçber LIHCH Tp 2x2x0.75 mm2 Cable
- Brand: Reçber Kablo
- SKU: 212104
- MPN: 212104
- Price: 6116.60 TRY + VAT · incl. VAT 7339.92 TRY
- Availability: In stock
- LIHCH Signal Cables
- Reçber Kablo LIHCH Signal Cables
- Selection guide: LIHCH Halogen-Free Shielded Signal Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber LIHCH Tp 2x2x0.75 mm2 Cable is a product in the Reçber Kablo brand's LIHCH-TP shielded control cable product family. Key technical features: Cable type: LIHCH; Core cross-section: 2x2x0.75 mm2.
| Core Cross-Section | 2x2x0,75 mm² |
|---|---|
| Cable Type | LIHCH |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | HFFR, 70°C EN 50290-2-26, HJ2 DIN VDE 0207-23 |
| Core Colour Code | Compliant with DIN 47100 core insulation color coding |
| Stranding | Çiftler, katlar halinde bükülerek biraraya getirilir |
| Separator Tape | Pet bant min. %100 kapama |
| Cable Shield | Tinned copper wire braid |
| Outer Sheath Material | HFFR, 70°C EN 50290-2-27, HM2 DIN VDE 0207-24 |
| Outer Sheath Colour | RAL 7001 Grey |
| Operating Voltage | Max. 300 V |
| Test Voltage | 1200 V |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Flexible: 15 x D |
| Conductor Resistance | Max. 26,0 Ω/km |
| Insulation Resistance | Min. 200 MΩ·km |
| Standards | TSE K 353, DIN VDE 0812 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
| Outer Diameter | 8.6 mm |
| Copper Weight | 36 kg/km |
