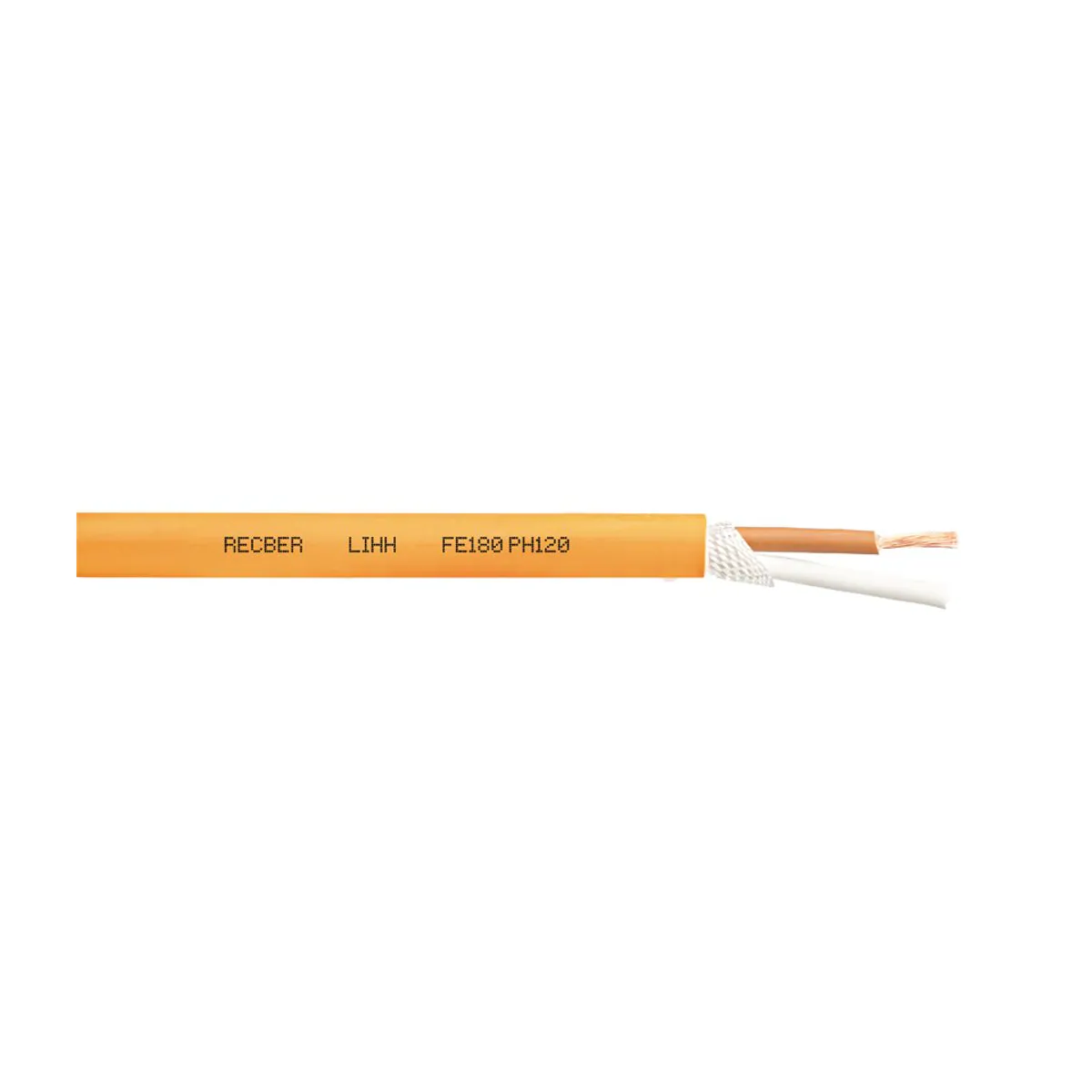

Reçber LIHH 10x1 mm2 Cable
- Brand: Reçber Kablo
- SKU: 202130
- MPN: 202130
- Price: 13518.40 TRY + VAT · incl. VAT 16222.08 TRY
- Availability: In stock
- LIHH Signal Cables
- Reçber Kablo LIHH Signal Cables
- Selection guide: LIHH Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber LIHH 10x1 mm2 Cable is a product in the Reçber Kablo brand's LIHH control and signal cable product family. Key technical features: Cable type: LIHH; Core cross-section: 10x1 mm2.
| Core Cross-Section | 10x1 mm² |
|---|---|
| Cable Type | LIHH |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | HFFR (70°C EN 50290-2-26, HJ2 DIN VDE 0207-23) |
| Core Colour Code | Compliant with DIN 47100 core insulation color coding |
| Separator Tape | Pet bant min. %100 kapama |
| Outer Sheath Material | HFFR (70°C EN 50290-2-27, HM2 DIN VDE 0207-24) |
| Outer Sheath Colour | Grey (RAL 7001) |
| Operating Voltage | Max. 300 V |
| Test Voltage | 1200 V |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Flexible: 15 x D |
| Conductor Resistance | Max. 19,5 Ω/km |
| Insulation Resistance | Min. 200 MΩ·km |
| Standards | TSE K 353, DIN VDE 0812 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
| Outer Diameter | 10.2 mm |
| Copper Weight | 83 kg/km |
