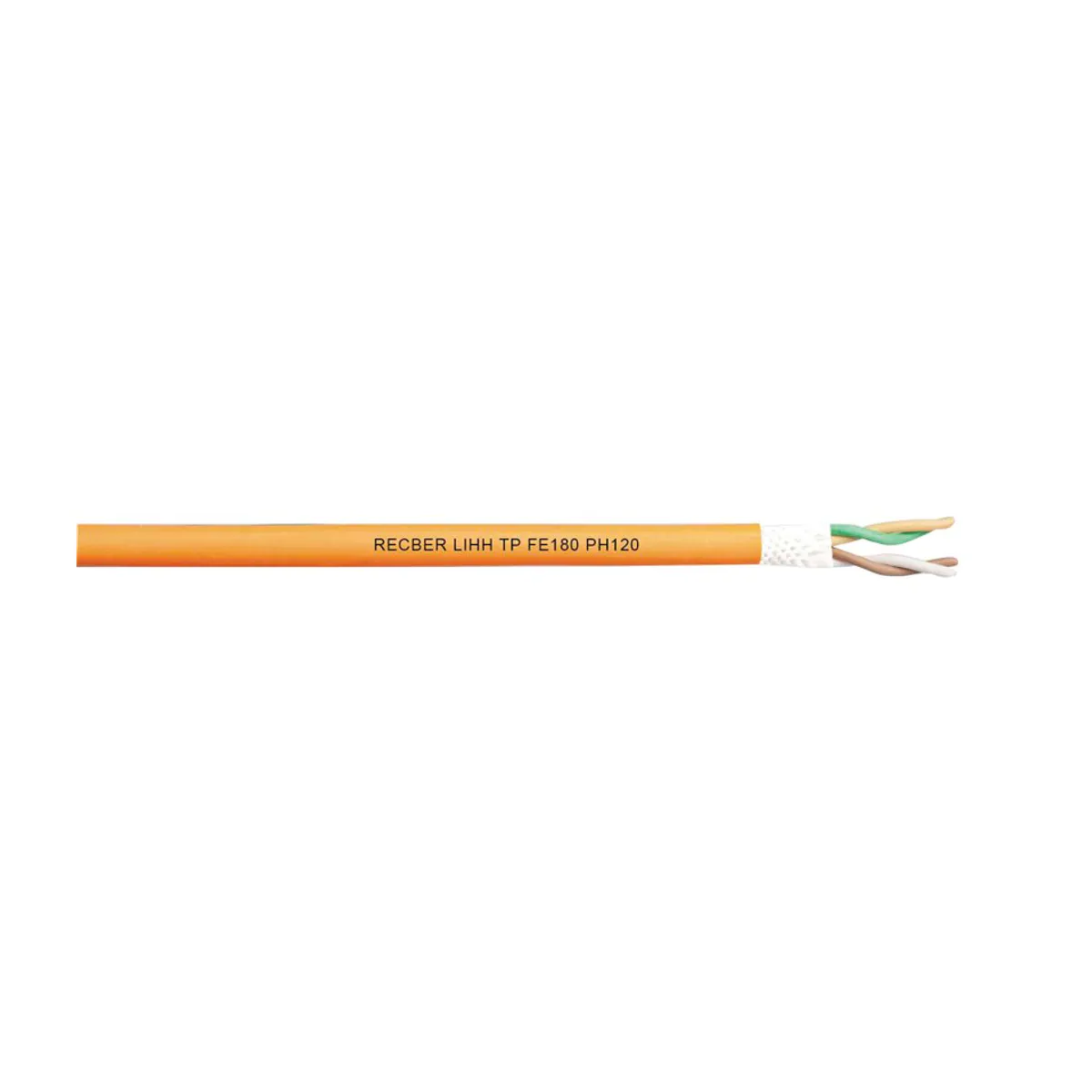

Reçber LIHH FE180 10x1 mm2 Cable
- Brand: Reçber Kablo
- SKU: 101130
- MPN: 101130
- Price: 13919.60 TRY + VAT · incl. VAT 16703.52 TRY
- Availability: In stock
- LIHH Fire-Resistant Cables
- Reçber Kablo LIHH Fire-Resistant Cables
- Selection guide: LIHH Fire-Resistant Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber LIHH FE180 10x1 mm2 Cable. Key technical features: Cable type: LIHH; Core cross-section: 10x1 mm2.
| Core Cross-Section | 10x1 mm² |
|---|---|
| Cable Type | LIHH |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | Halojensiz, çapraz bağlı yalıtım (EI8 EN 50363-5) |
| Core Colour Code | Compliant with DIN 47100 core insulation color coding |
| Separator Tape | Pet bant min. %100 kapama; Cam elyaf bant min. %100 kapama |
| Outer Sheath Material | HFFR (70°C EN 50290-2-27, HM2 DIN VDE 0207-24) |
| Outer Sheath Colour | Turuncu (RAL 2003) |
| Operating Voltage | Max. 300 V |
| Test Voltage | 1200 V |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Conductor Resistance | Max. 19,5 Ω/km |
| Insulation Resistance | Min. 20 MΩ·km |
| Standards | TSE K 178, DIN VDE 0812 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2; Akım sürekliliği: IEC 60331-21 FE180; Akım sürekliliği: EN 50200 PH120 |
| Outer Diameter | 11.1 mm |
| Copper Weight | 83 kg/km |
