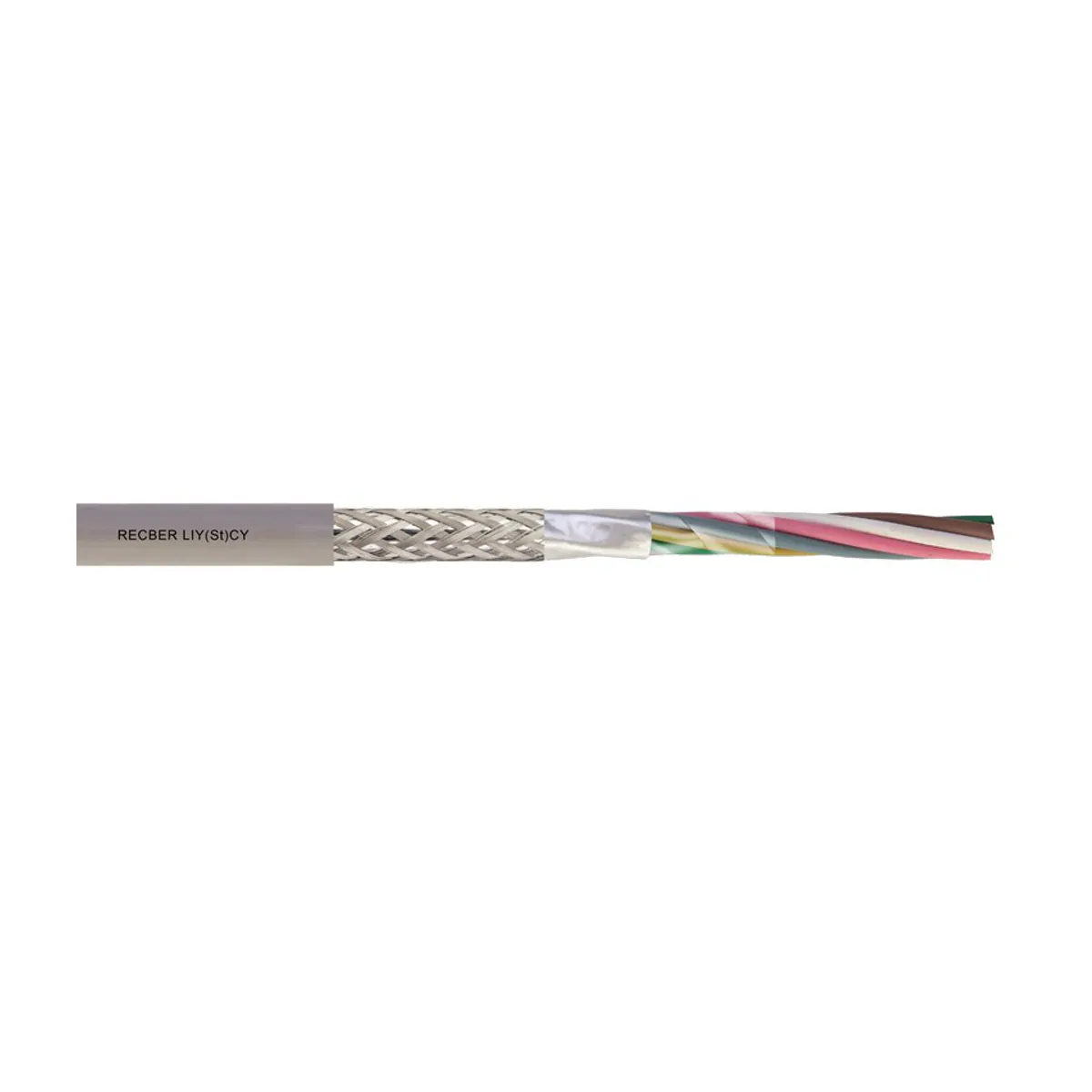

Reçber LIY(St)CY 12x1.5 mm2 Cable
- Brand: Reçber Kablo
- SKU: 207150
- MPN: 207150
- Price: 24459.60 TRY + VAT · incl. VAT 29351.52 TRY
- Availability: In stock
- LIY(St)CY Signal Cables
- Reçber Kablo LIY(St)CY Signal Cables
- Selection guide: LIY(St)CY Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber LIY(St)CY 12x1.5 mm2 Cable is a product in the Reçber Kablo brand's control and signal cable product family. Key technical features: Cable type: LIY; Core cross-section: 12x1.5 mm2.
| Core Cross-Section | 12x1,5 mm² |
|---|---|
| Cable Type | LIY |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | PVC (TI52 EN 50290-2-21, YI2 DIN VDE 0207-4) |
| Core Colour Code | Compliant with DIN 47100 core insulation color coding |
| Cable Shield | Al-Pet bant min. %100 kapama; Kalaylı bakır tel örgü |
| Outer Sheath Material | PVC (TM51 EN 50290-2-22, YM1 DIN VDE 0207-5) |
| Outer Sheath Colour | Grey (RAL 7001) |
| Operating Voltage | Max. 300 V |
| Test Voltage | 2500 V |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Flexible: 15 x D |
| Conductor Resistance | Max. 13,3 Ω/km |
| Insulation Resistance | Min. 200 MΩ·km |
| Standards | TSE K 353, DIN VDE 0812 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Outer Diameter | 13.1 mm |
| Copper Weight | 163 kg/km |
