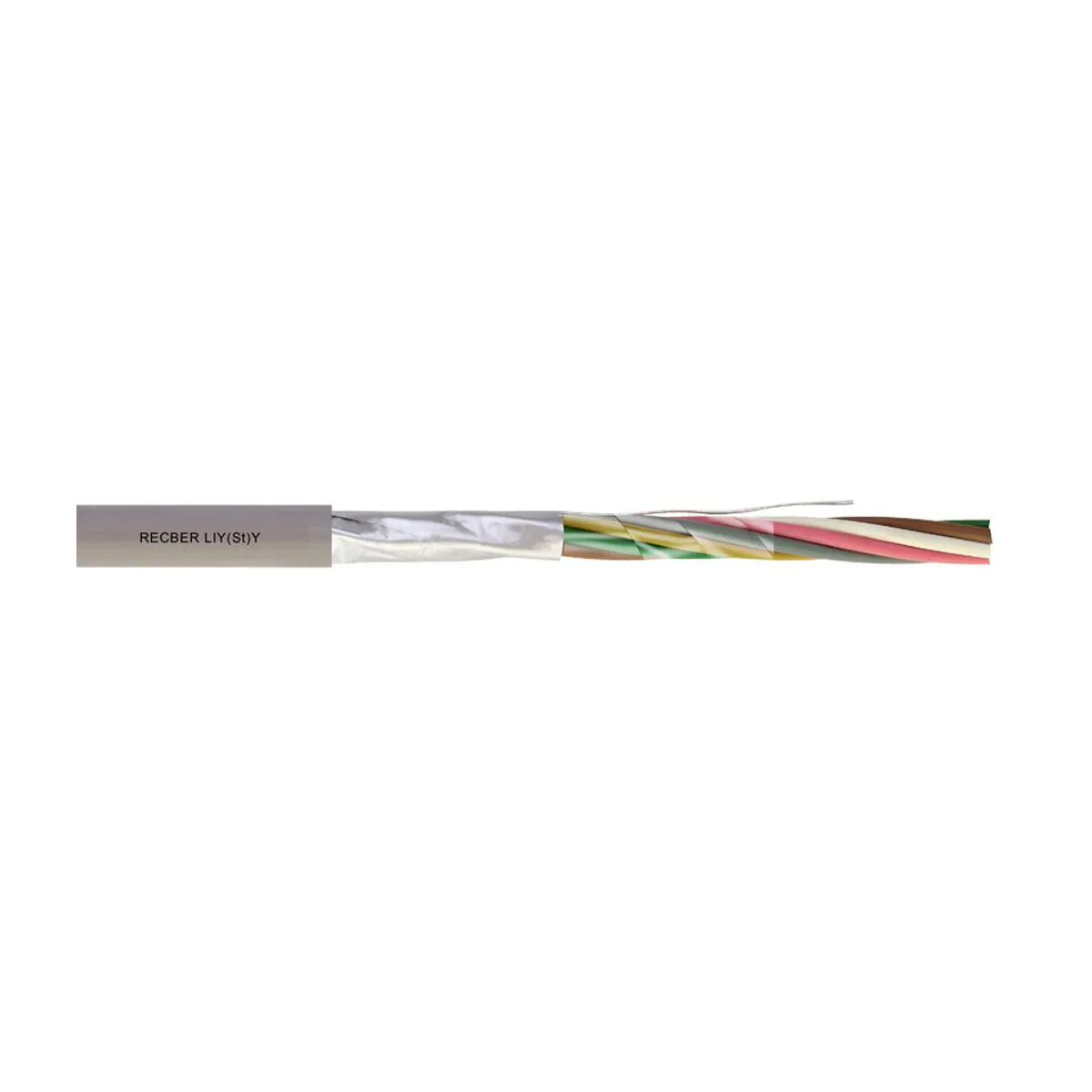

Reçber LIY(St)Y 10x2.5 mm2 + 0.50 mm2 Cable
- Brand: Reçber Kablo
- SKU: 205166
- MPN: 205166
- Price: 30855.00 TRY + VAT · incl. VAT 37026.00 TRY
- Availability: In stock
- LIY(St)Y Signal Cables
- Reçber Kablo LIY(St)Y Signal Cables
- Selection guide: LIY(St)Y Signal Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber LIY(St)Y 10x2.5 mm2 + 0.50 mm2 Cable is a product in the Reçber Kablo brand's control and signal cable product family. Key technical features: Cable type: LIY; Core cross-section: 10x2.5 mm2.
| Core Cross-Section | 10x2,5 mm² |
|---|---|
| Cable Type | LIY |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | PVC (TI52 EN 50290-2-21, YI2 DIN VDE 0207-4) |
| Core Colour Code | Compliant with DIN 47100 core insulation color coding |
| Outer Sheath Material | PVC (TM51 EN 50290-2-22, YM1 DIN VDE 0207-5) |
| Outer Sheath Colour | Grey (RAL 7001) |
| Operating Voltage | Max. 300 V |
| Test Voltage | 2500 V |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Flexible: 15 x D |
| Conductor Resistance | Max. 7,98 Ω/km |
| Insulation Resistance | Min. 200 MΩ·km |
| Standards | TSE K 353, DIN VDE 0812 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Outer Diameter | 14.1 mm |
| Copper Weight | 211 kg/km |
