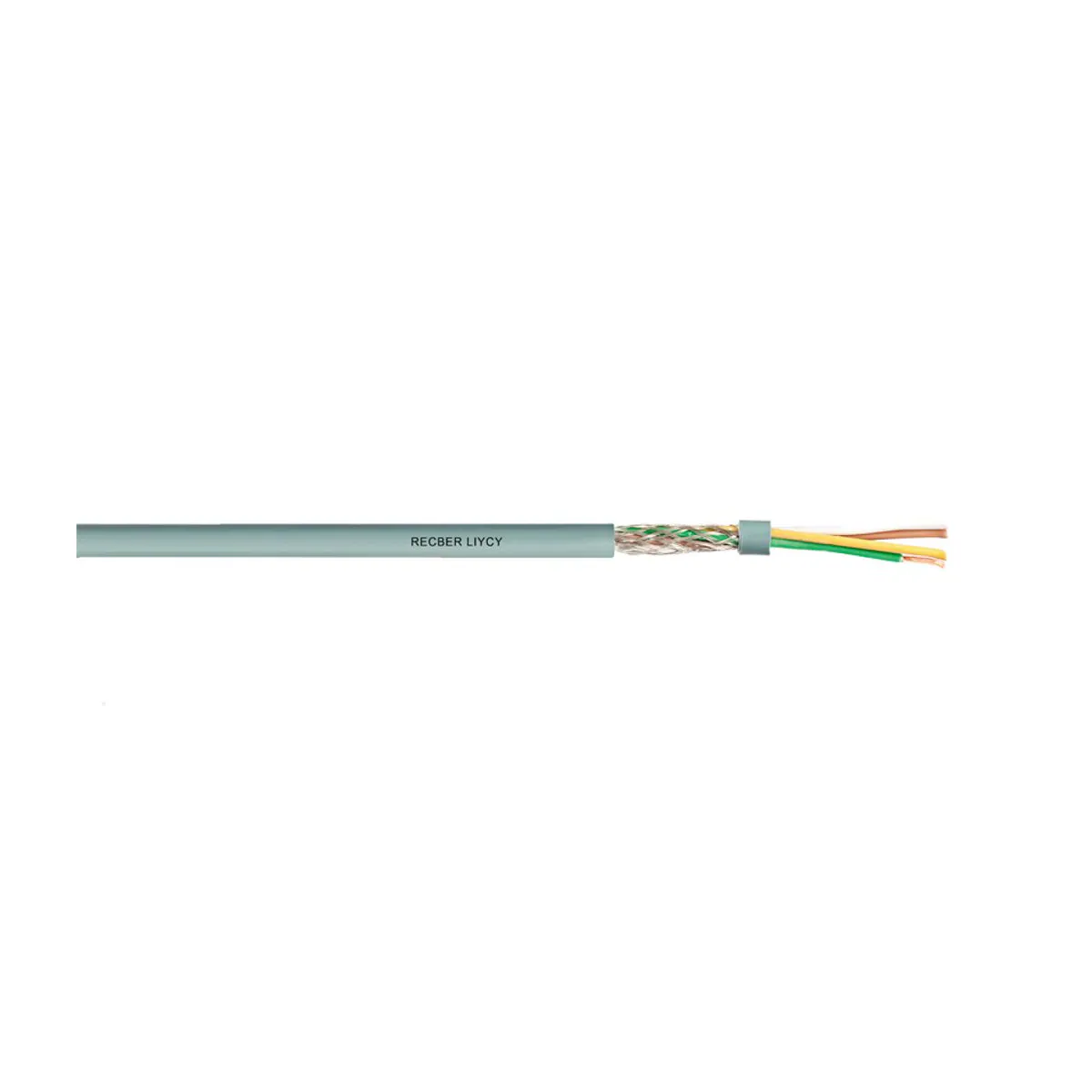

Reçber LIYCY 2x1 mm2 Cable
- Brand: Reçber Kablo
- SKU: 203122
- MPN: 203122
- Price: 3719.60 TRY + VAT · incl. VAT 4463.52 TRY
- Availability: In stock
- LIYCY Signal Cables
- Reçber Kablo LIYCY Signal Cables
- Selection guide: LIYCY Shielded Signal Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber LIYCY 2x1 mm2 Cable is a product in the Reçber Kablo brand's control and signal cable product family. Key technical features: Cable type: LIYCY; Core cross-section: 2x1 mm2.
| Core Cross-Section | 2x1 mm² |
|---|---|
| Cable Type | LIYCY |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | PVC, TI52 EN 50290-2-21, YI2 DIN VDE 0207-4 |
| Core Colour Code | Compliant with DIN 47100 core insulation color coding |
| Separator Tape | Pet bant min. %100 kapama |
| Cable Shield | Tinned copper wire braid |
| Outer Sheath Material | PVC, TM51 EN 50290-2-22, YM1 DIN VDE 0207-5 |
| Outer Sheath Colour | RAL 7001 Grey |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Flexible: 15 x D |
| Insulation Resistance | Min. 200 MΩ·km |
| Operating Voltage | Max. 300 V |
| Standards | TSE K 353, DIN VDE 0812 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Conductor Resistance | Max. 19,5 Ω/km |
| Test Voltage | 1200 V |
| Outer Diameter | 5.9 mm |
| Copper Weight | 24 kg/km |
