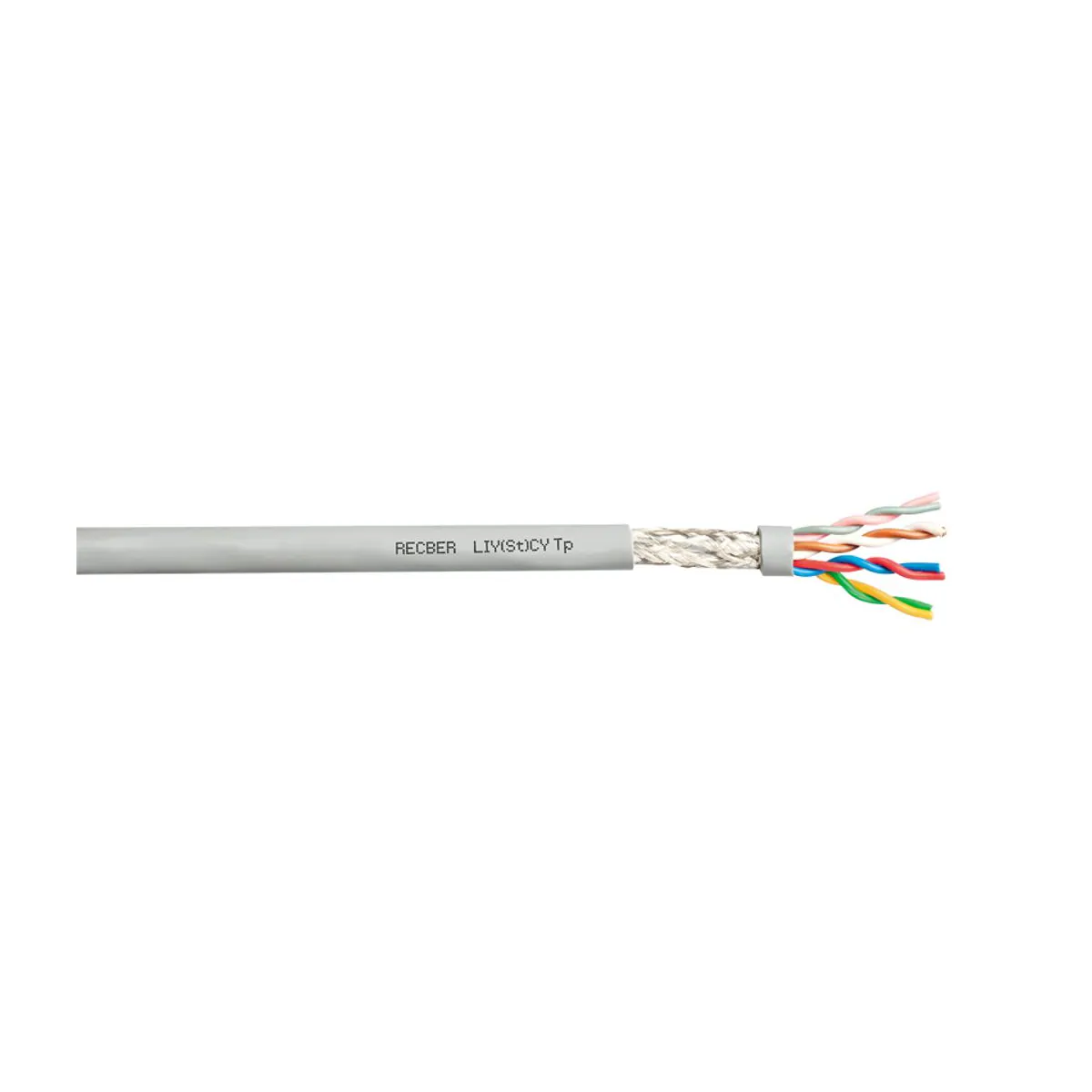

Reçber LIYCY Tp 3x2x1.5 mm2 Cable
- Brand: Reçber Kablo
- SKU: 211141
- MPN: 211141
- Price: 13039.00 TRY + VAT · incl. VAT 15646.80 TRY
- Availability: In stock
- LIYCY Signal Cables
- Reçber Kablo LIYCY Signal Cables
- Selection guide: LIYCY Shielded Signal Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber LIYCY Tp 3x2x1.5 mm2 Cable is a product in the Reçber Kablo brand's control and signal cable product family. Key technical features: Cable type: LIYCY; Core cross-section: 3x2x1.5 mm2.
| Core Cross-Section | 3x2x1,5 mm² |
|---|---|
| Cable Type | LIYCY |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Core Colour Code | Compliant with DIN 47100 core insulation color coding |
| Stranding | Çiftler, katlar halinde bükülerek biraraya getirilir |
| Separator Tape | Pet bant min. %100 kapama |
| Cable Shield | Tinned copper wire braid |
| Outer Sheath Colour | RAL 7001 Grey |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Flexible: 15 x D |
| Insulation Resistance | Min. 200 MΩ·km |
| Operating Voltage | Max. 300 V |
| Standards | TSE K 353, DIN VDE 0812 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Test Voltage | 2500 V |
| Outer Diameter | 11.6 mm |
| Copper Weight | 90 kg/km |
