Reçber Mini U/4 PHY-PVC Cu/Al Cable
- Brand: Reçber Kablo
- SKU: 307051
- MPN: 307051
- Price: 1145.80 TRY + VAT · incl. VAT 1374.96 TRY
- Availability: In stock
- Satellite-TV Broadcast Cables
- Reçber Kablo Satellite-TV Broadcast Cables
- Selection guide: Satellite-TV Broadcast Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop

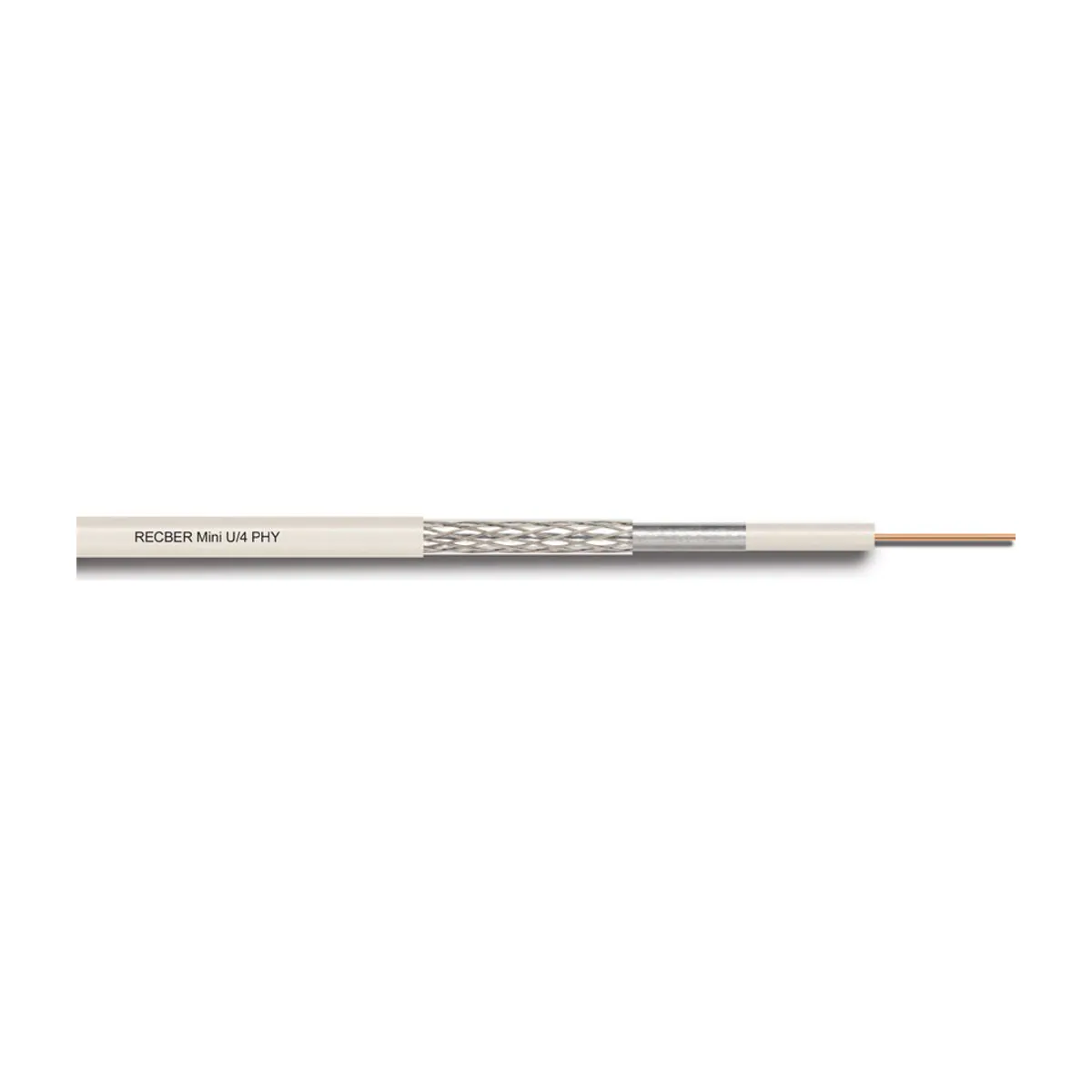

Reçber Mini U/4 PHY-PVC Cu/Al Cable is a Reçber 75 ohm mini coaxial cable offered for TV and coaxial signal connections. Product features Cable type: Mini U/4 PHY-PVC Cu/Al Impedance: 75 Ω Outer sheath: PVC Conductor/shield designation: Cu/Al The image is the manufacturer's representative family image; select the product according to the model and size information above.
| Cable Type | Mini U/4 PHY-PVC Cu/Al |
|---|---|
| Conductor | Elektrolitik bakır tel, Ø 0,64mm (AWG22) |
| Insulation Material | Fiziksel köpüklü PE, Ø 2,90mm, 70°C, EN 50290-2-23 |
| Cable Shield | Al-Pet folyo min. %100 kapama; Alüminyum tel örgü |
| Outer Sheath Material | PVC, TM51 70°C, EN 50290-2-22 |
| Outer Sheath Colour | RAL 9003 White |
| Operating Voltage | Max. 1000 V |
| Test Voltage | 2500 V |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Insulation Resistance | Min. 2 GΩ·km |
| Standards | EN 50117, IEC 61196 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Outer Diameter | 4.3 mm |
| Copper Weight | 3,0 kg/km |
| Impedance | 75 ± 3 Ω |
| Capacitance | 54 ± 2 pF/m |
| Velocity of Propagation | %83 ± 2 |
| Attenuation (20 °C, max.) | 50 MHz: 7,26 dB/100m; 200 MHz: 14,23 dB/100m; 470 MHz: 21,91 dB/100m; 860 MHz: 29,96 dB/100m; 1000 MHz: 32,43 dB/100m; 2150 MHz: 48,82 dB/100m; 2400 MHz: 51,83 dB/100m; 3000 MHz: 58,59 dB/100m |
| Segregation Class | “c” EN 50174-2 |
| Return Loss | 5-470 MHz: > 20 dB; 470-1000MHz: > 18 dB; 1000-2000 MHz: > 16 dB; 2000-3000 MHz: > 15 dB |
