Reçber SL200 F/U24 LSZH Category 5e F/UTP 4x2x24AWG Cable
- Brand: Reçber Kablo
- SKU: 505005
- MPN: 505005
- Price: 3311.60 TRY + VAT · incl. VAT 3973.92 TRY
- Availability: In stock
- CAT5e Cables
- Selection guide: CAT5e Cables Selection Guide: Technical Criteria & Application Standards
- Calculate cable current-carrying capacity
- Calculate voltage drop

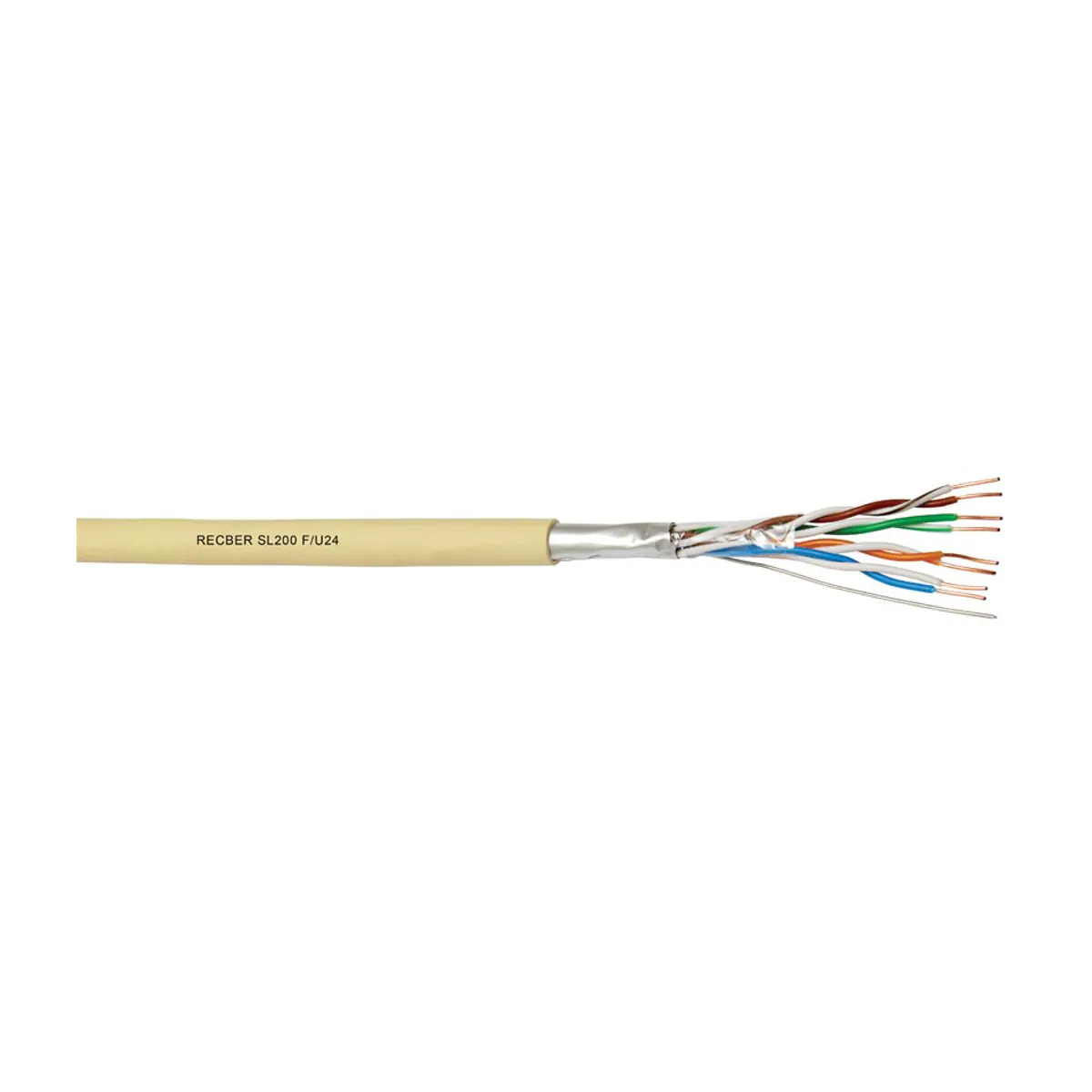

Reçber SL200 F/U24 LSZH Category 5e F/UTP 4x2x24AWG Cable is a Reçber CAT5e F/UTP Ethernet data cable product used in Ethernet and local area network connections. Product features Model: SL200 F/U24 Category: Category 5e Shielding: F/UTP Outer sheath: LSZH Core size: 4x2x24 AWG The image is the manufacturer's representative family image; select the product according to the model and size information above.
| Core Cross-Section | 4x2x24 AWG |
|---|---|
| Cable Type | CAT5e F/UTP |
| Conductor | Elektrolitik bakır tel, Ø 24AWG |
| Insulation Material | HDPE (80°C, EN 50290-2-23) |
| Core Colour Code | TIA 568 izole renk kodlamasına uygun |
| Cable Shield | Pet bant min. %100 kapama; Kalaylı bakır tel, toprak teli Ø 26AWG; Al-Pet bant min. %100 kapama |
| Outer Sheath Material | LSZH/LS0H (70°C, EN 50290-2-27) |
| Outer Sheath Colour | Krem (RAL 1015) |
| Operating Voltage | Max. 125 V |
| Test Voltage | 1000 V |
| Operating Temperature | Fixed: -20 °C … +60 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 4 x D; Flexible: 8 x D |
| Conductor Resistance | Max. 95 Ω/km |
| Standards | ISO/IEC 11801 2nd ed., IEC 61156-5, EN 50173-1, EN 50288-2-1, ANSI EIA/TIA 568-C.2 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
| Outer Diameter | 6 mm |
| Copper Weight | 17 kg/km |
| Impedance | 100 ± 5 Ω @100MHz |
| Capacitance | Nom. 50 pF/m |
| Velocity of Propagation | 67-69% |
| Capacitance Unbalance | Max. 1600 pF/km |
| Segregation Class | c (EN 50174-2) |
| Transfer Impedance | Class 2 |
| Resistance Unbalance | Max. 2% |
| Propagation Delay | Max. 537 ns/100m |
| Tensile Strength | Max. 90 N |
| Crush Resistance | Min. 1000 N/10cm |
| Shock resistance | Min. 10 darbe |
| Coupling Attenuation | Tip II |
| TCL | Min. Seviye 2 |
