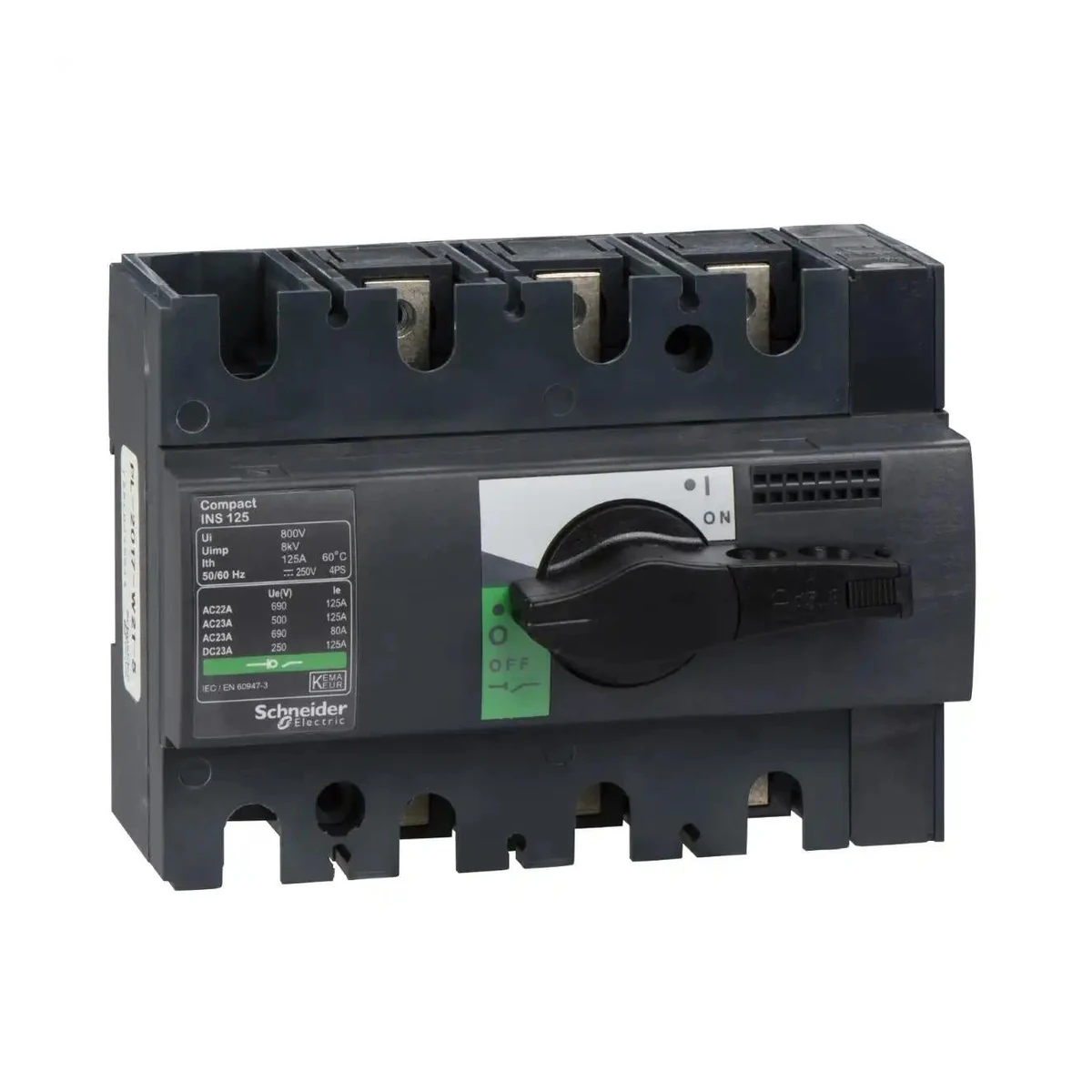

Schneider Electric 28910 ComPacT, INS125

• Brand: Schneider Electric
• SKU: 28910
• MPN: 28910
• Price: 8395.56 TRY + VAT · incl. VAT 10074.67 TRY
• Availability: Made to order
• Horizontal Type Load Break Switches
• Schneider Electric Horizontal Type Load Break Switches
• Selection guide: Horizontal Type Load Break Switches Selection Guide: Technical Criteria and Engineering Practice
• Schneider Electric 28910 Teknik Veri Föyü (PDF)

Schneider Electric 28910 ComPacT, INS125. Technical specifications of this model: Mains Frequency: 50/60 Hz Mounting Support: DIN rail, plate [Ie] Rated Operational Current: AC-22A: 125 A AC 50/60 Hz 220/240 V & AC-22A: 125 A AC 50/60 Hz 380/415 V & AC-22A: 125 A AC 50/60 Hz 440/480 V 2 poles in series & AC-22A: 125 A AC 50/60 Hz 500 V 2 poles in series & AC-22A: 125 A AC 50/60 Hz 660/690 V & AC-23A: 125 A AC 50/60 Hz 220/240 V & AC-23A: 125 A AC 50/60 Hz 380/415 V & AC-23A: 125 A AC 50/60 Hz 440/480 V & AC-23A: 125 A AC 50/60 Hz 500 V & AC-23A: 80 A AC 50/60 Hz 660/690 V & DC-22A: 125 A DC 50/60 Hz 125 V 2 poles in series & DC-23A: 125 A DC 50/60 Hz 125 V 2 poles in series Height: 100 mm Depth: 62.5 mm Intermittent Duty Class: class % 120 - 60 Product name: ComPacT INS Top Connection: front Series: Compact Width: 135 mm IP Rating: IP40 conforming to IEC 60529 [Uimp] Rated Impulse Withstand Voltage: 8 kV Nominal Operating Ambient Temperature: -25-70 °C Handle color: black Apparent Breaking: none [Icm] Rated Short-Circuit Making Capacity: 154 kA with line-side protective circuit breaker at 690 V AC 50/60 Hz & 20 kA with load break switch only at 690 V AC 50/60 Hz Control type: rotary lever [Icw] Rated Short-Time Withstand Current: 0.01 kA for 30 s, compliant with IEC 60947-3 & 1.23 kA for 20 s, compliant with IEC 60947-3 & 3,175 kA for 3 s, compliant with IEC 60947-3 & 5.5 kA for 1 s, compliant with IEC 60947-3 Connection Range: 30 mm Product Weight: 0.8 kg Mounting Type: Fixed Pollution degree: 3 Storage Environmental Conditions: -50-85 °C IK Protection Rating: IK07 conforming to EN 50102 Rated Operational Voltage: 125 V DC & 690 V AC 50/60 Hz Maximum power: AC-23: 55 kW at 440 V AC 50/60 Hz & AC-23: 37 kW at 220/240 V AC 50/60 Hz & AC-23: 55 kW at 380/415 V AC 50/60 Hz & AC-23: 75 kW at 500/525 V AC 50/60 Hz & AC-23: 75 kW at 660/690 V AC 50/60 Hz Mechanical Endurance: 15000 cycles Pole arrangement: 3P Nominal Duty: continuous [Ui] Rated Insulation Voltage: 750 V AC 50/60 Hz Isolation Suitability: yes Product certificates: CCC, KEMA-KEUR [Ith] Conventional Free-Air Thermal Current: 125 A at 60 °C Product Type: INS40...160 Downward Connection: front Electrical Endurance: AC-22A: 1500 cycles 220/240 V AC 50/60 Hz & AC-22A: 1500 cycles 380/415 V AC 50/60 Hz, 2 poles in series & AC-22A: 1500 cycles 440 V AC 50/60 Hz & AC-22A: 1500 cycles 500 V AC 50/60 Hz & AC-23A: 1500 cycles 220/240 V AC 50/60 Hz & AC-23A: 1500 cycles 380/415 V AC 50/60 Hz & AC-23A: 1500 cycles 440 V AC 50/60 Hz & AC-23A: 1500 cycles 500 V AC 50/60 Hz & DC-22A: 1500 cycles 250 V DC 50/60 Hz, 2 poles in series & DC-23A: 1500 cycles 250 V DC 50/60 Hz, 2 poles in series & AC-22A: 1500 cycles 690 V AC 50/60 Hz & AC-23A: 1500 cycles 690 V AC 50/60 Hz, 2 poles in series Mains Type: AC,DC Enclosure Dimensions for Ithe: 260 mm x 160 mm x 55 mm Product Family: COMPACT Mains Frequency: 50/60 Hz Operating Ambient Temperature: -25…70 °C Storage Temperature: -50…85 °C
