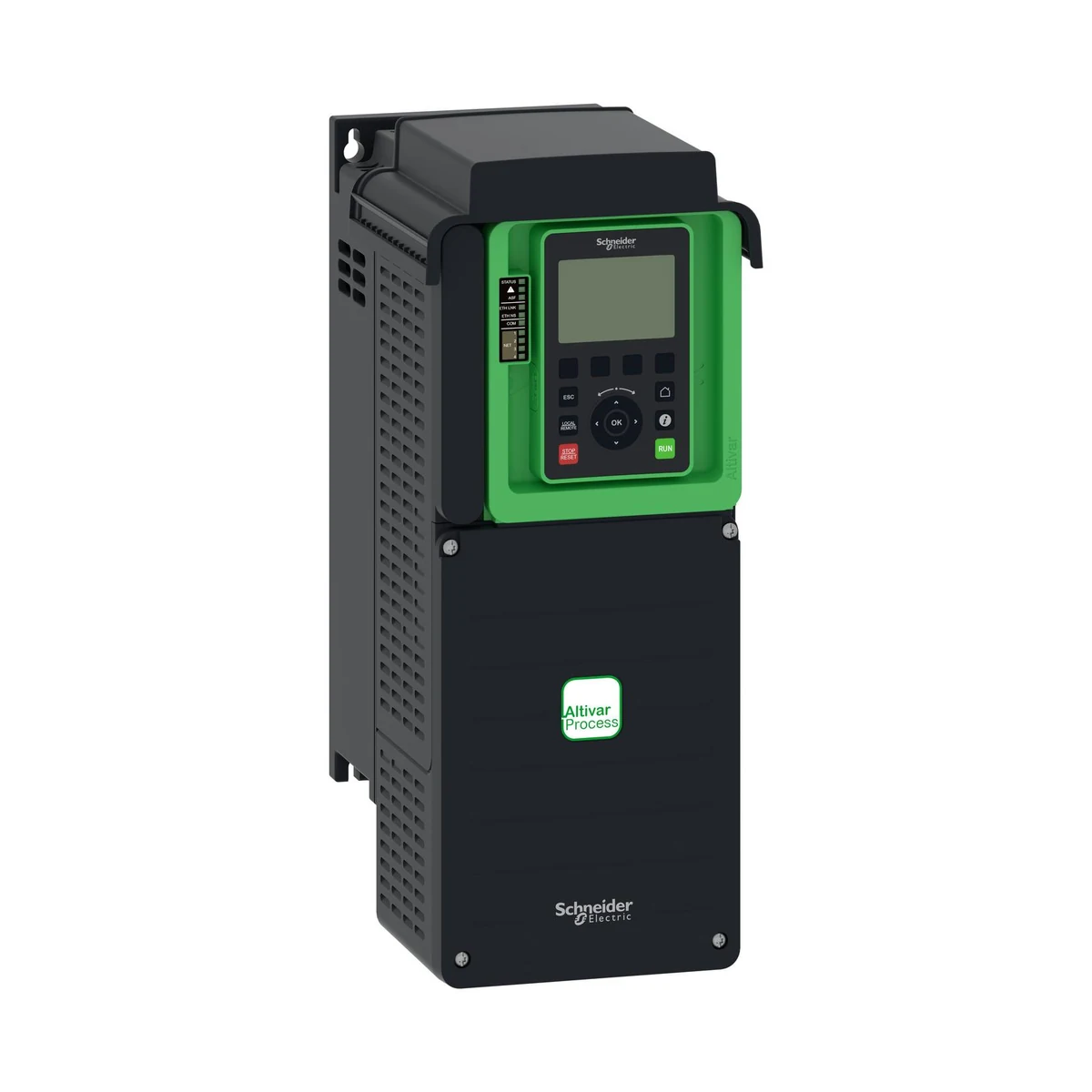

Schneider Electric ATV630U75N4 ATVProcess :VARIABLE SPEED DRIVE IP21 7.5kW 400V/480
- Brand: Schneider Electric
- SKU: ATV630U75N4
- MPN: ATV630U75N4
- Price: 116036.57 TRY + VAT · incl. VAT 139243.88 TRY
- Availability: Made to order
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
Schneider Electric ATV630U75N4 ATVProcess :VARIABLE SPEED DRIVE IP21 7.5kW 400V/480. Technical specifications of this model: IP Rating: IP21 Specified Operating Voltage: 400V Motor Power: 7.5kW Series: ALTIVAR PROCESS ATV600 Product Type: Frequency Converter Short Device Name: ATV630 Communication Port Protocol: ETHERNETMODBUS SERIALMODBUS TCP Supply Frequency: 50...60 Hz - 5...5 % Number of Digital Inputs: 8 Number of Analog Inputs: 3 Number of Analog Outputs: 2 Number of Relay Outputs: 3 Number of Mains Phases: 3 PHASES Rated Switching Frequency: 4 kHz Mains Frequency: 50...60 Hz Width: 171 mm Height: 409 mm Depth: 233 mm Product Weight: 7.7 kg Storage Temperature: -40…70 °C
| IP Rating | IP21 |
|---|---|
| Specified Operating Voltage | 400 V |
| Motor Power | 7.5 kW |
| Series | ALTIVAR PROCESS ATV600 |
| Product Type | Frekans Konvertörü |
| Short Device Name | ATV630 |
| Communication Port Protocol | ETHERNETMODBUS SERIALMODBUS TCP |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Number of Digital Inputs | 8 |
| Number of Analog Inputs | 3 |
| Number of Analog Outputs | 2 |
| Number of Relay Outputs | 3 |
| Number of Mains Phases | 3 PHASES |
| Rated Switching Frequency | 4 kHz |
| Mains Frequency | 50–60 Hz |
| Width | 171 mm |
| Height | 409 mm |
| Depth | 233 mm |
| Product Weight | 7.7 kg |
| Storage Temperature | -40…70 °C |
