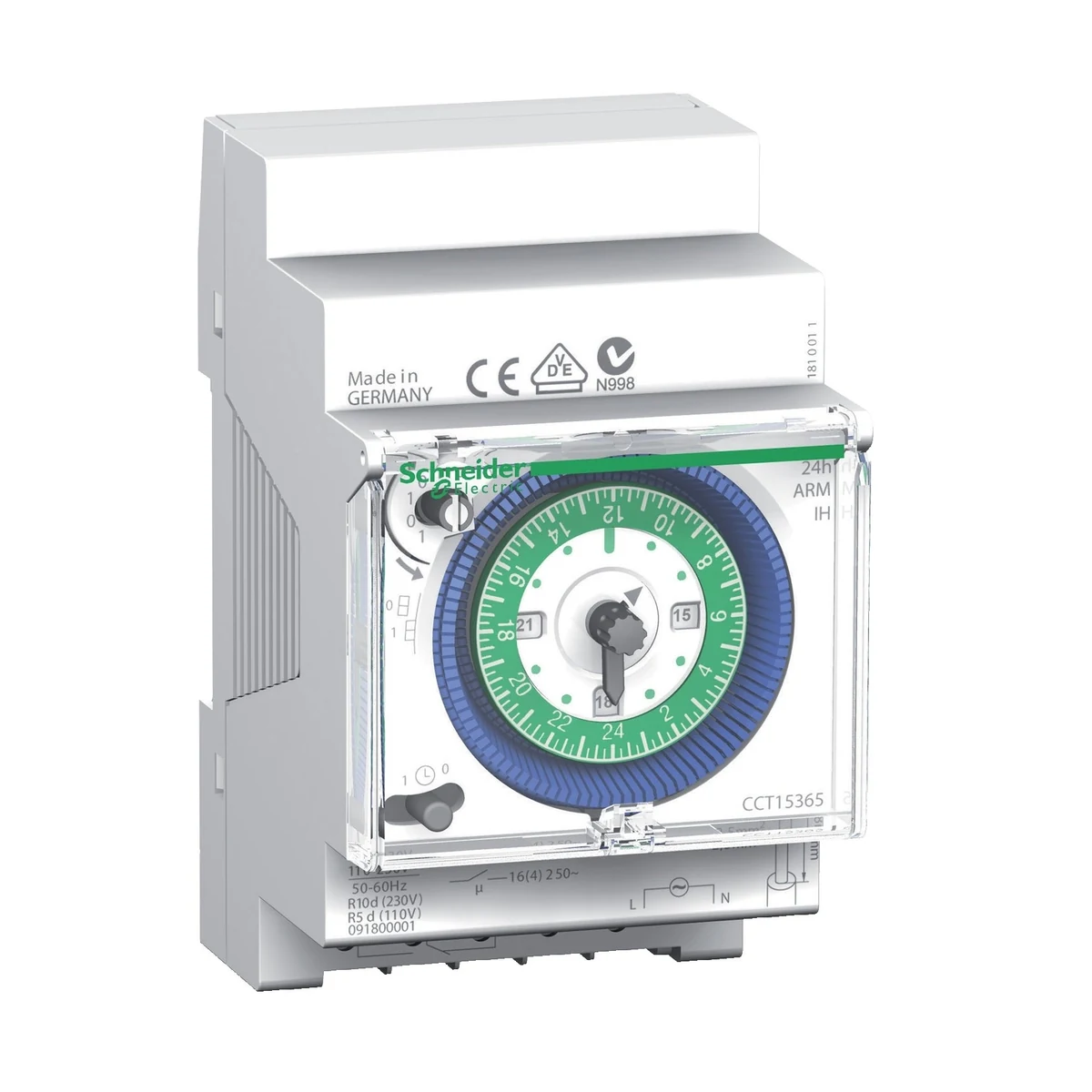

Schneider Electric CCT15365 IH, 24 hours, 1 pcs changeover contact outputs, 150 hours reserve

• Brand: Schneider Electric
• SKU: CCT15365
• MPN: CCT15365
• Price: 4898.33 TRY + VAT · incl. VAT 5878.00 TRY
• Availability: Made to order
• Programmable Timer Relays
• Selection guide: Programmable Timer Relays Selection Guide: Technical Criteria & Application Standards

Schneider Electric CCT15365 IH, 24 hours, 1 pcs changeover contact outputs, 150 hours reserve. Technical specifications of this model: Cycle Time: 24 H Mounting Support: DIN rail Rated Impulse Withstand Voltage (Uimp): 4 KV Product Family: Acti9 Depth: 66 mm Connection Terminals: Screwless terminals Color Tone: White (RAL 9003) Manufacturer Product Name: ACTI9 IH Product Type: Mechanical time clock Terminal Block Connection Capacity: 2 X 0.5...2 .5 mm² Device Application: BUILDING Minimum Interval Time: 15 MIN Battery Life: 6 YEAR(S) Rated Operational Voltage: 110...230 V AC AT 50...60 Hz IP Rating: IP20 CONFORMING TO EN 60529 Width: 54 mm 9 mm Number of Module Pitches: 6 Operating Ambient Temperature: -20…55 °C Series: ACTI9 Measurement Accuracy: +/- 1 S/DAY 20 °C Available functions: MANUAL TIME CHANGEOVER Height: 90 mm Channel Count: 1 Adjustment Type: MANUAL TIME CHANGEOVER Short Device Name: IH Product Weight: 0.198 kg Manufacturer Standard Declaration: EN 60730-1 Backup Time: 150 h time and program retention at 230 V AC; 75 h time and program retention at 110 V AC Pollution Degree: 2 Maximum Switching Current: 16 A - 250 V AC PF = 14 A - 250 V AC PF = 0.6 Load Type: 230 V AC HALOGEN LAMP 1000 W230 V AC INCANDESCENT LAMP 1100 W230 V AC FLUOCOMPACT LAMP 600 VAPARALLEL-CORRECTED FLUORESCENT TUBE 2 X ELECTRONIC BALLAST 40 W 12 µFCOMPACT FLUORESCENT LAMPELECTRONIC BALLAST 25 WLED LAMP < 2 W 20 WLED LAMP >= 2 W 180 W Maximum Number of Switching Operations: 48 ON - 48 OFF Power Consumption: 0.5 W
