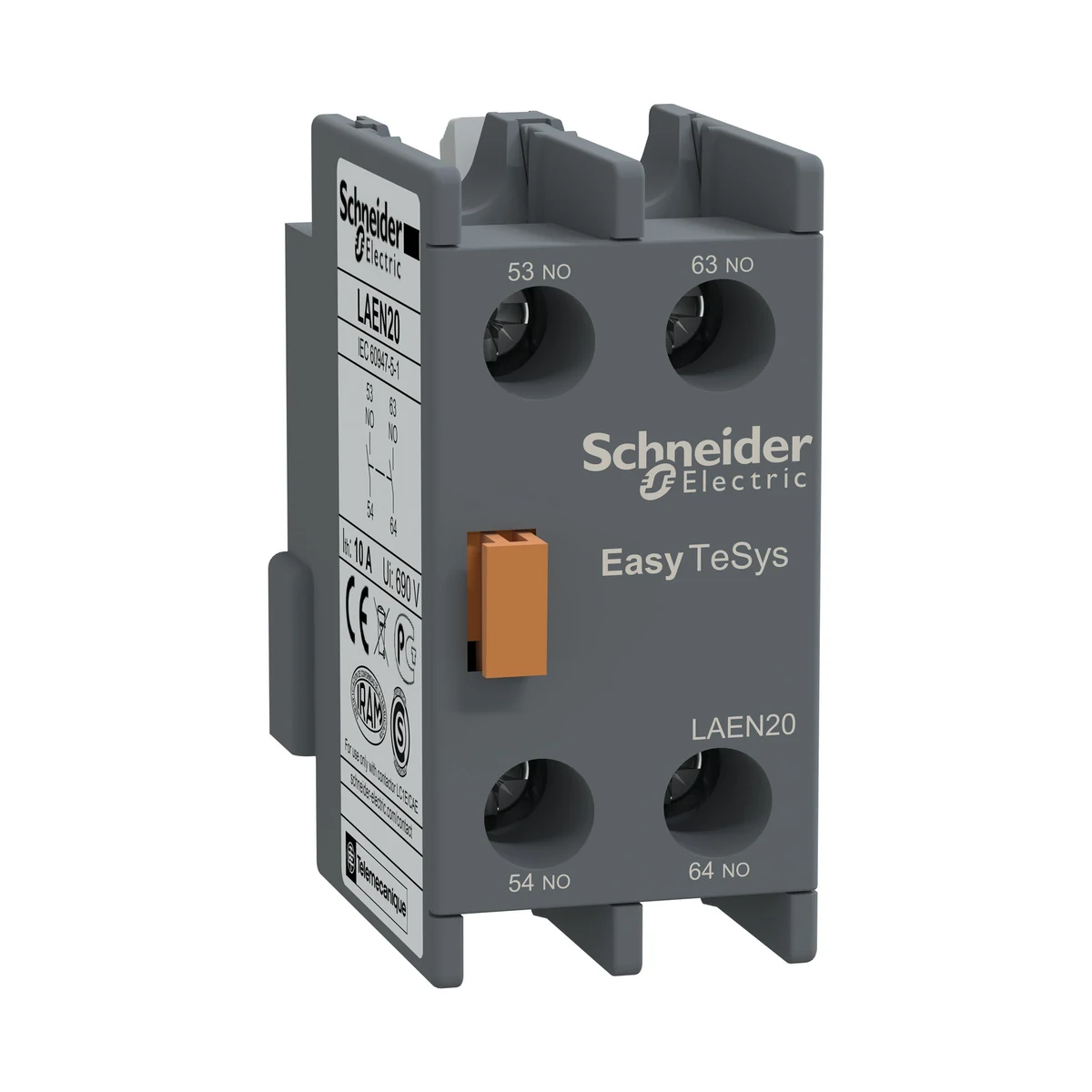

Schneider Electric LAEN20 Front auxiliary contact block TVS 2NO
- Brand: Schneider Electric
- SKU: LAEN20
- MPN: LAEN20
- Price: 489.28 TRY + VAT · incl. VAT 587.14 TRY
- Availability: In stock
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
- Schneider Electric LAEN20 Teknik Veri Föyü (PDF)
Schneider Electric LAEN20 Front auxiliary contact block TVS 2NO. Technical specifications of this model: Series: EasyPact TVS Contact Arrangement: 2NO
| Contact Arrangement | 2NO |
|---|---|
| Series | EasyPact TVS |
| Product Type | Yardımcı kontak bloğu |
| Device Application | Sinyalleme |
| Mounting Position | Front |
| Auxiliary Contact Operation | Anlık |
| Compatible Series | Easypact EasyPact TVS LC1E |
| Power Pole Contact Arrangement | 2 NA |
| Rated Insulation Voltage (Ui) | 690 V - için kontrol devresi (IEC 60947-5-1) |
| Rated Operational Voltage (Ue) | <= 690 V |
| Conventional Free Air Thermal Current (Ith) | 8 A (at 60 °C) |
| Rated Making Capacity (Irms) | 140 A AC (IEC 60947-5-1) |
| Rated Short-time Withstand Current Low Voltage (Icw) | 100 A - 1 sn; 120 A - 500 ms; 140 A - 100 ms |
| Protection Type | GG sigorta 10 A |
| Mechanical Endurance | 10 Mcycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-Overlap Time | 1,5 ms enerjilemede NK ve NA kontağı arasında çakışma olmaması; 1,5 ms enerji kesmede NK ve NA kontağı arasında çakışma olmaması |
| Insulation Resistance | > 10 MOhm |
| Product Weight | 0.035 kg |
| Color | Grey (RAL 7011) |
| Standards | EN/IEC 60947-1; EN/IEC 60947-5-1; GB/T 14048.1; GB/T 14048,5; EN/IEC 60335-1:Clause 30.2; EN/IEC 60335-2-40:Annex JJ |
| Certifications | CB Şeması; CCC; CE; EAC |
| IP Rating | IP20 |
| Operating Ambient Temperature | -5…55 °C |
| Storage Temperature | -60…80 °C |
| Operating Altitude | 3000 m olmadan |
| Environmental Conditions | Standart ortam |
